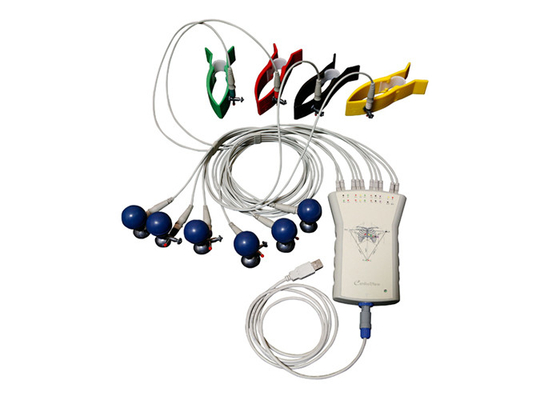

12 Channel Ambulatory ECG Recorder Medical Ambulatory Monitoring Device

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  12 Channel Ambulatory ECG Recorder Medical Ambulatory Monitoring Device Get Best Price

Product Details:
Place of Origin: Beijing,China(Mainland)
Brand Name: V & H
Certification: CE&ISO
Model Number: CV-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Standard Package:25cm*20cm*13cm
Delivery Time: 15 Work days after payment
Payment Terms: Western Union, T/T, PayPal, L/C
Supply Ability: 50 Units Per Week
Detailed Product Description
Product: 12 Channel Ambulatory Resting ECG Monitoring For Medical With CE Type: Resting
Function: ECG Work Station,Vector ECG Channel: 12
Color: Grey Communication: USB
System: Windows Isolate Voltage: 4000V
High Light:

ambulatory ecg recorder

,

ambulatory monitoring device



12 channel ambulatory resting ECG monitoring for medical with CE

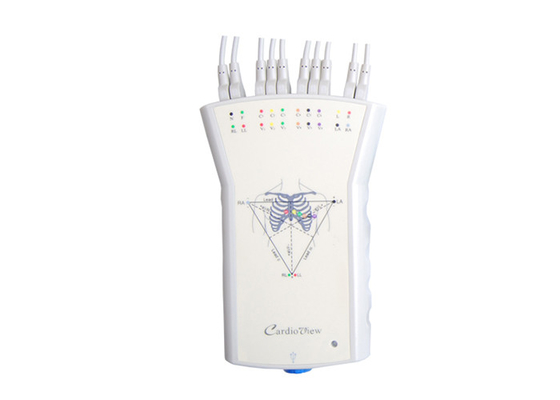

CV-200 Rest ECG,VCG and VLP



CV-200 ,the system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.



VH- CV200-ECG work station specification
Sampling: 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording
Digital Resolution: 2µV
Frequency Response: 0.05-250Hz(+3dB)
Common Mode Rejection: >90dB
Input Impedance: >10 M
Time Constant: 3.2 Sec
Maximum Electrode Potential: +300mV DC
Dynamic Range: +10mV
Isolate Voltage: 4000V
Current Leak: <10µA

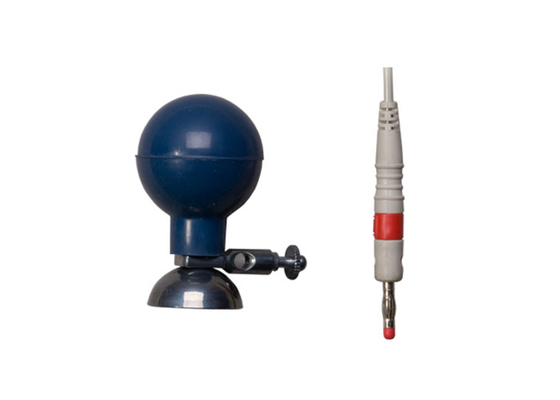

Patient Cable: Standard 10-wire,15-Pin D Connector

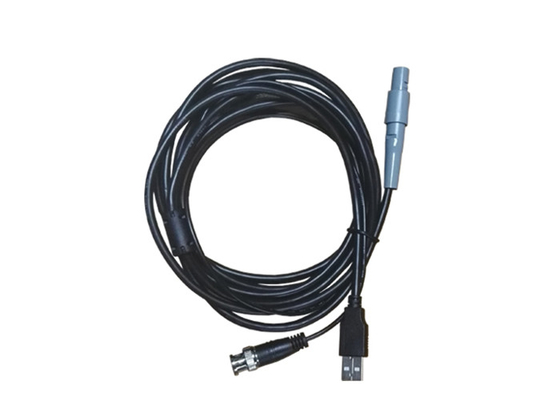

PC Interface: USB Connector
Dimensions: 14912226 mm(5.94.81.0 in.)



12 Channel Ambulatory ECG Recorder Medical Ambulatory Monitoring Device

About us



12 Channel Ambulatory ECG Recorder Medical Ambulatory Monitoring Device

Why choose us?



-company Cultural:People Oriented,Quality Based,Innovation initiatived

-25-year experience in the ecg device field.

-Own R&D team and design team to make the market shares and benefit of customers.

-Individual QC team to ensure 100% good quality before delivery

-Flexible production policy to meet customers’ customized demand and provide the excellent service
