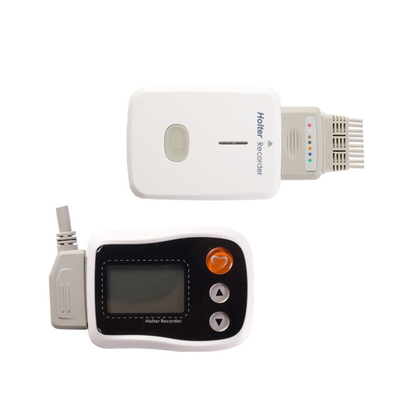

Precision Ambulatory ECG Monitoring Ambulatory Heart Monitor With LCD Display

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Precision Ambulatory ECG Monitoring Ambulatory Heart Monitor With LCD Display Get Best Price

Product Details:
Place of Origin: Beijing , China (Mainland)
Brand Name: V&H
Certification: CE , ISO
Model Number: CV-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard Packing
Delivery Time: 7 working days after payment
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10 Units per week
Detailed Product Description
Product: V&H Professional 3 Or 12 Channel Portable Holter ECG Recorder Communication: SD Card Or USB
Record Time: 1 Day To 7 Days Power Supply: One AAA Battery
Size: 75×55×16(mm) Automatic Duplex Operation: Support
Channel: 12 Channel Or 3 Channel LCD Display: Support
High Light:

ambulatory monitoring device


ecg ambulatory monitoring

Ambulatory Heart Monitor for ECG Testing Recording Time Up to 7 Days With Mini White Box



Unique Advantages:


Atrial arrhythmia analyzing tools

Heart rate turbulence

T-wave alternating analysis

QT dispersion

Obstructive sleep apnea syndrome

Options: Average ECG: VCG and VLP





Automatic template Classification

Tools for 12-Lead ST-T Analysis

Pacemarker Analysis

Automatic Atrial Fibrillation Analysis with Assitant Tools

Heart Rate Variablility(HRV)


Channels:Two Work Modes

Programable Recording

LCD Display

High Quality Recording

Double Work Modes in Data Access

Low Power Consuption

Compact Size & Light Weight

Spare parts and accessory stock in warehouse

Same warranty period as manufacture

Technical support for products.


How to think about the ambulatory ECG Holter ecg device?


CV3000 is a remarkable advanced HOLTER system working for both 3-channel and 12-lead ECG recording and analysis. Thanks to its sophisticated software and elaborately designed recorder, CV3000 meets all high-end performance and fiscal responsibility.

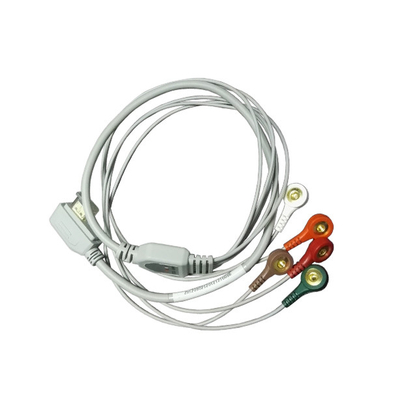

With an Elite Holter Recorder you can have both 12-lead or 3-channel ECG recording depends on the cable connected to the recorder.This section shows several typical electrodes placements.Refer to your analysis system software and the physician for a recommended position.


Precision Ambulatory ECG Monitoring Ambulatory Heart Monitor With LCD Display



The Precautions of usage of holter ECG device:

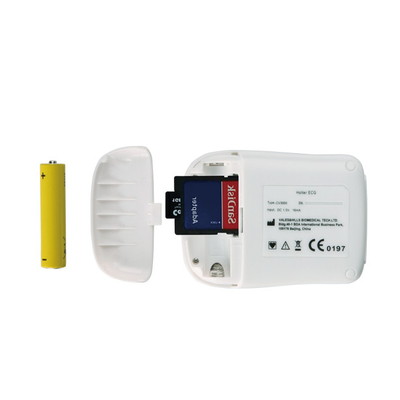

(1) Only use a V&H certified SD card for recording.
(2) The patient leads must be disconnected from the patient before defibrillation.
(3) It is the end user’s responsibility to properly configure the ECG Recorder with settings that are compatible with their ECG analysis software.
(4) False positive and false negative pacer detects may occur when using Pacer Detect. (Elite-Plus only)
• False positives – may result from poor electrode connection to the patient or a large amount of electrical interference from nearby objects.
• False negatives – may occur with pacers that are bipolar because of a weak pacer pulse signal at the patient’s skin.
(5) Observe local laws for disposal of alkaline batteries.
(6) Do not leave the battery in the recorder when it is not in use.Damage to the recorder could result from corrosion of the battery.
(7) To receive the best recording results, the patient should be instructed to avoid being near heavy electrical equipment or other sources of
electromagnetic interference. Equipment such as electric blankets and heating pads would be included in this group.



Channels: 10leads (12- channel) 5/7 leads(3-channel)
Resolution: 8-10 bits
Recording: Full disclosure
Download interface: SD card reader or USB line
Sample rate: 1024/Sec max
Frequency response: 0.05HZ to 60Hz
Signal verification: LCD display
Pacemaker Detection: support



Precision Ambulatory ECG Monitoring Ambulatory Heart Monitor With LCD Display

The functions of the holter ecg device:

Automatic Templante Classification With Powerful Edition Tools

Automaic QRS positioning and morphological pattern recognition, a wide variety of arrhythmia templates

Combination of DEMIX anti confusing algorithm, RR-HIS rhythm technology and BIRDVIEW graphic classification, the most powerful templates edition tools ever developed in HOLTER system

ST-T Analysis And Trends

Editable automatic ST-T measurement and trend, combined with superimposition and scanning comparison to edit ST-T episodes: depression, elevation and slope, standard 12-lead for myocardial ischemia positioning

Atrial Arrhythmia Analyzing Tools

Atrial fibrillation Analysis with assistant tools

Heart Rate Turbulence(VE CHAOS, HRT) Analysis

Obstructive Sleep Apnea Syndrome Analysis

Heart Rate Variability

5-min, 1-hour, 24-hour or selectable time periods of monitoring
Time domain, frequency domain and complete nonlinear index

QT Dispersion Analysis

Pacemaker Analysis

Wide range of pacer types including VVI, AAI and DD, etc., producing a comprehensive pacemaker report

T-wave Alternating Analysis

A significant index for malignant arrhythmia and sudden cardiac death
