Mini White Recorders Ambulatory ECG Monitoring 12 Channel 3 Channel Support
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product: | V&H Professional 3 Or 12 Channel Portable Holter ECG Recorder | Communication: | SD Card Or USB |
|---|---|---|---|
| Record Time: | 24 Hours | Power Supply: | One AAA Battery |
| Size: | 75×55×16(mm) | Automatic Duplex Operation: | Support |
| Channel: | 12 Channel Or 3 Channel | LCD Display: | Support |
| High Light: | ambulatory monitoring device,ecg ambulatory monitoring |
||
Ambulatory ECG Monitoring 12-Channel And 3-Channel Support to the Mini White Recorders with Single ECG Showed
Unique Advantages:
Atrial arrhythmia analyzing tools
Heart rate turbulence
T-wave alternating analysis
QT dispersion
Obstructive sleep apnea syndrome
Options: Average ECG: VCG and VLP

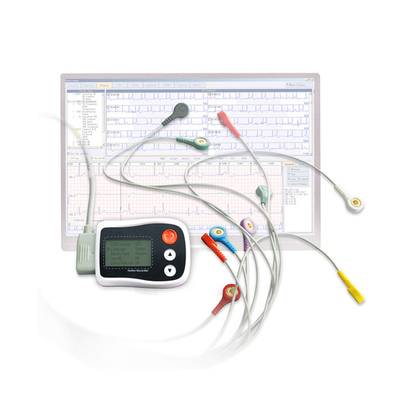

What is the ambulatory ECG Monitor Holter ecg device?
CV3000 is a remarkable advanced HOLTER system working for both 3-channel and 12-lead ECG recording and analysis. Thanks to its sophisticated software and elaborately designed recorder, CV3000 meets all high-end performance and fiscal responsibility.

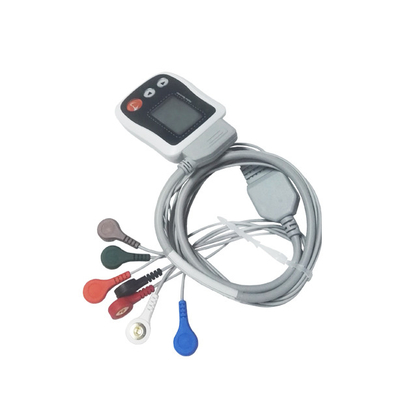

With an Elite Holter Recorder you can have both 12-lead or 3-channel ECG recording depends on the cable connected to the recorder.This section shows several typical electrodes placements.Refer to your analysis system software and the physician for a recommended position.
Specifications
| Channels: | 10leads (12- channel) 5/7 leads(3-channel) |
| Resolution: | 8-10 bits |
| Recording: | Full disclosure |

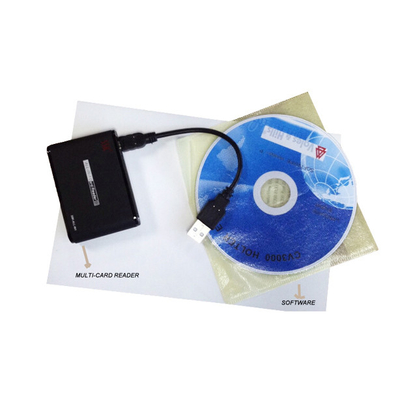

| Download interface: | SD card reader or USB line |
| Sample rate: | 1024/Sec max |
| Frequency response: | 0.05HZ to 60Hz |
| Signal verification: | LCD display |
| Pacemaker Detection: | support |
The functions of the holter ecg device:
Automatic Templante Classification With Powerful Edition Tools
Automaic QRS positioning and morphological pattern recognition, a wide variety of arrhythmia templates
Combination of DEMIX anti confusing algorithm, RR-HIS rhythm technology and BIRDVIEW graphic classification, the most powerful templates edition tools ever developed in HOLTER system
ST-T Analysis And Trends
Editable automatic ST-T measurement and trend, combined with superimposition and scanning comparison to edit ST-T episodes: depression, elevation and slope, standard 12-lead for myocardial ischemia positioning
Atrial Arrhythmia Analyzing Tools
Atrial fibrillation Analysis with assistant tools
Heart Rate Turbulence(VE CHAOS, HRT) Analysis
Obstructive Sleep Apnea Syndrome Analysis
Heart Rate Variability
5-min, 1-hour, 24-hour or selectable time periods of monitoring
Time domain, frequency domain and complete nonlinear index
QT Dispersion Analysis
Pacemaker Analysis
Wide range of pacer types including VVI, AAI and DD, etc., producing a comprehensive pacemaker report
T-wave Alternating Analysis
A significant index for malignant arrhythmia and sudden cardiac death
The Precautions of usage of holter ECG device:
(1) Only use a V&H certified SD card for recording.
(2) The patient leads must be disconnected from the patient before defibrillation.
(3) It is the end user’s responsibility to properly configure the ECG Recorder with settings that are compatible with their ECG analysis software.
(4) False positive and false negative pacer detects may occur when using Pacer Detect. (Elite-Plus only)
• False positives – may result from poor electrode connection to the patient or a large amount of electrical interference from nearby objects.
• False negatives – may occur with pacers that are bipolar because of a weak pacer pulse signal at the patient’s skin.
(5) Observe local laws for disposal of alkaline batteries.
(6) Do not leave the battery in the recorder when it is not in use.Damage to the recorder could result from corrosion of the battery.
(7) To receive the best recording results, the patient should be instructed to avoid being near heavy electrical equipment or other sources of
electromagnetic interference. Equipment such as electric blankets and heating pads would be included in this group.
