Home ProductsHandheld ECG Machine

IOS Digital Handheld ECG Machine 12 Lead Electrocardiograph For Hospital

I'm Online Chat Now
Certification
Good quality Handheld ECG Machine for sales
Good quality Handheld ECG Machine for sales
Good quality and good service

—— Dr.Alam from Egypt

Perfect product,small and smart!

—— Mr.Yann from France

IOS Digital Handheld ECG Machine 12 Lead Electrocardiograph For Hospital

large.img.alt
small.img.alt small.img.alt

Large Image :  IOS Digital Handheld ECG Machine 12 Lead Electrocardiograph For Hospital Get Best Price

Product Details:
Place of Origin: Beijing, China (Mainland)
Brand Name: V&H
Model Number: ICV200
Payment & Shipping Terms:
Minimum Order Quantity: 1box/boxes
Price: negotiation
Packaging Details: standard package
Delivery Time: 5 days after payment
Payment Terms: Ex works T/T Money Gram
Supply Ability: 20 Box/Boxes / Week
Detailed Product Description
High Light:

ecg monitoring device

,

hand held ecg



12 channel resting handheld ECG machine for IOS





Description



Brand Name

V&H

Model Number

ICV200

Place of Origin

Beijing , China (Mainland)

Color

white

Transfer way

wireless

Properties

Diagnostic Instruments

Other

icloud ECG web



  1. Resting ECG on iPad, iPhone,or PC
  2. Bluetooth or wifi wireless
  3. Heart rate monitor
  4. 12 channel iCV200





Quick Detail



Name

portable ECG

Function

Automatical monitor and analysis ECG

Type

Resting

Feature

Wifi Connection

Leads

Simultaneous 12 leads

certification

CE ISO





Advantages:

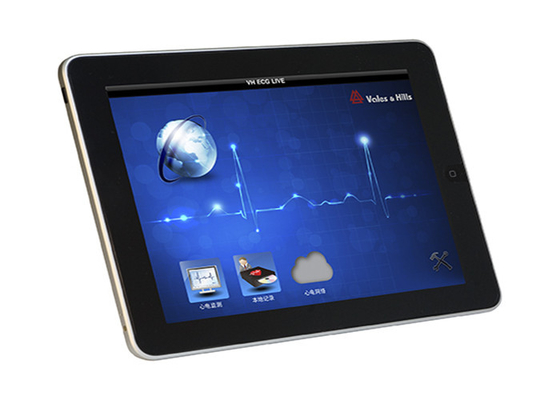

  1. The first professional electro cardio gram (ECG) product developed on iOS portable device.
  2. High definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
  3. Automatic measurements and interpretations.
  4. WiFi and 3G compatible





About Us



Vales and Hills Biomedical Tech. Ltd. (V&H), located on BDA International Park, BEIJING, has been one of the leading developers of PC based ECG technology for years. V&H keeps giving great resources to approach the edge that comes with the idea of sophisticated simplicity in products design and the discipline of management in quality control. V&H is mostly engaged in PC-ECG, ECG Workstation, ECG Stress Test, Digital EEG Series and Ambulatory Blood Pressure Monitor. V&H's core concept is teamwork on which we have built a truly top-notch team, conceived in collaboration, dedicated to the proposition that we all colleagues working our hearts out toward the goal in rewarding people and society. V&H keeps looking to the future with hope and determination.



ECG Recorder Specifications



Sampling Rate

A/D: 24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Resolution

0.4uV

Common Mode Rejection

>110dB

Input Impedance

>20M

Frequency Response

0.05-250Hz(±3bB)

Time Constant

>3.2Sec

Maximum Electrode Potential

±300mV DC

Dynamic Range

±15mV

Defibrillation Project

Build-in

Communication

WIFI (ipad,iphone) Blue Tooth (Android)

Power

2xAA Batteries

IOS Digital Handheld ECG Machine 12 Lead Electrocardiograph For Hospital



IOS Digital Handheld ECG Machine 12 Lead Electrocardiograph For Hospital

IOS Digital Handheld ECG Machine 12 Lead Electrocardiograph For HospitalIOS Digital Handheld ECG Machine 12 Lead Electrocardiograph For Hospital
