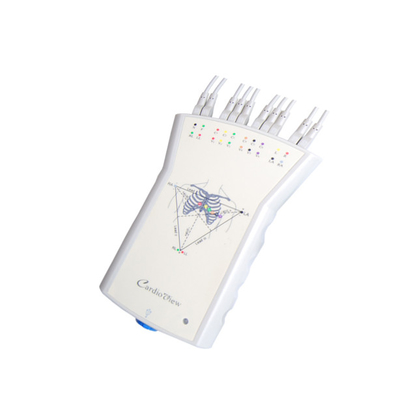

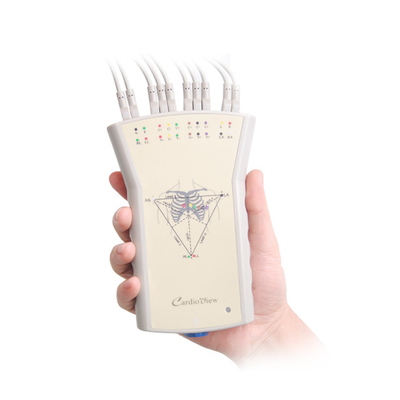

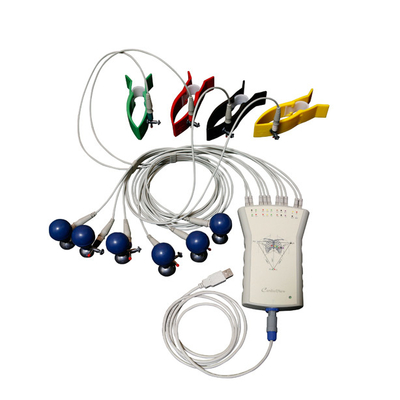

Portable Grey Plastic Recorder with VLP Simultenaous 12 Lead Handheld ECG Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Portable Grey Plastic Recorder With VLP Simultenaous 12 Lead Handheld ECG Machine | Color: | Grey |
|---|---|---|---|
| Material: | Plastic | Lead: | Simultenoaus 12-lead |
| Compatible System: | Win Xp,win7,8,10 | Type: | Resting ECG |
| Instrument Classification: | Class II | Usage: | Heart Test,Medical Test,Home Self-test |
| Accuracy: | 99.9% | Functions: | VLP,VCG So On |
Portable Grey Plastic Recorder with VLP Simultenaous 12 Lead Handheld ECG Machine
The model of the resting ecg device is CV200
CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function
electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG),and Ventricular Late
Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed
in numerous formats on most Windows compatible printers. By means of regular updating of software,
CV-200 remains state-of-the-art both now and in the future.
With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.
The features of the device CV200:
1. High performance external sampling box, compatible with 9/12/15/18 leads synchronous data acquisition
2. Advanced anti baseline drift technology ensures steady ECG signal
3. Supoort worklist for ECG data management
4. Multi-format reports storage and export
5. Pacemaker detection
6. Support HRV,QT dispersion analysis, FCG,VCG,Time VCG, high frequency ECG, VLP
The Specification of CV200:
| Input Circuit | Built-in defibrillation protection | Patient Leakage current | <10μA(220V-240V) |
| Lead | Standard 12 leads acquisition | CMRR | >90dB |
| A/D Converter | 16 bits | Rhythm lead | Any lead selectable |
| Measurement Range | Filter | EMG:20hZ/30Hz/40Hz | |
| Time Constant | >3.2 Seconds | DFT:0.15/0.25/0.5/1Hz | |
| Frequency Response | 0.05Hz-250Hz(±3dB) | AC Filter:50/60HZ | |
| Isolate Voltage | 4000V | Output Voltage Range | 5V |
| Maximum Electrode Potential | ±300mVDC | Connective way | USB cable |
| Input Impedance | >10M | Compatible system | Winxp,7,8,10 |
| Dynamic Range | ±12mV | Format of lead |
12X1,2X6,3X4,Customized
|
| Anti Baseline Driff | Automatic | Sampling Rate | A/D:24k SPS/CH |
| Input Circuit Current | <0.05μA | Recording | >0.5k SPS/CH |
Minimum Computer System Requirements:
· Pentium III Processor
· 128MB RAM
· 20G HD
· Windows XP Operating System
· VGA Compatible Display
· Windows XP Compatible Laser or Inkjet Printer
