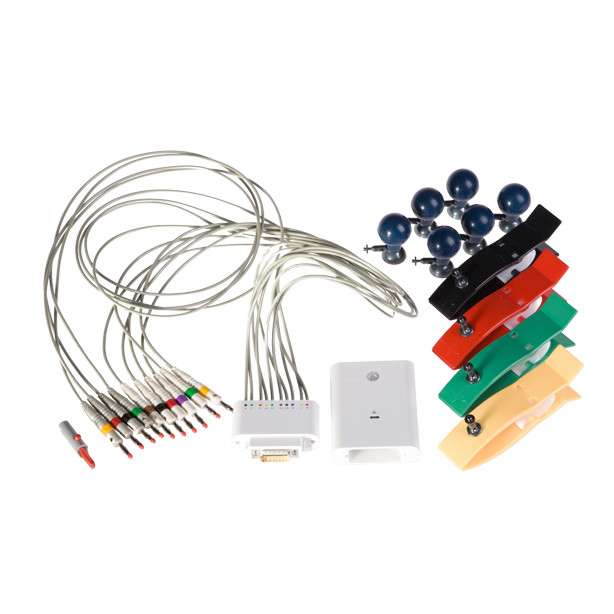

Wireless Handheld ECG Machine 12 Lead iPad Heart Rate ECG Diagnostic Instrument
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | pocket ecg machine,hand held ecg |
||
|---|---|---|---|
ISO Handheld ECG Machine Wireless 12 Lead iPad ECG With Heart Rate Monitor
Quick Detail
|
Name |
portable ECG |
Function |
Automatical monitor and analysis ECG |
|
Type |
Resting |
Feature |
Wifi connection |
|
Leads |
Simultaneous 12 leads |
certification |
CE ISO |
Description
|
Brand Name |
V&H |
|
Model Number |
ICV200 |
|
Place of Origin |
Beijing, China (Mainland) |
|
Color |
white |
|
Transfer way |
wireless |
|
Properties |
Diagnostic Instruments |
|
Other |
icloud ECG web |
- Resting ECG on iPad, iPhone,or PC
- Bluetooth or wifi wireless
- Heart rate monitor
- 12 channel iCV200
Advantages:
- The first professional electro cardio gram (ECG) product developed on iOS portable device.
- High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
- Automatic measurements and interpretations.
- WiFi and 3G compatible
ECG Recorder Specifications
|
Sampling Rate |
A/D:24K SPS/Ch Recording:1K SPS/Ch |
|
Quantization Precision |
A/D:24 Bits Recording:16 Bits |
|
Resolution |
0.4uV |
|
Common Mode Rejection |
>110dB |
|
Input Impedance |
>20M |
|
Frequency Response |
0.05-250Hz(±3bB) |
|
Time Constant |
>3.2Sec |
|
Maximum Electrode Potential |
±300mV DC |
|
Dynamic Range |
±15mV |
|
Defibrillation Project |
Build-in |
|
Communication |
WIFI(ipad,iphone)Blue Tooth(Android) |
|
Power |
2xAA Batteries |
