Home ProductsAmbulatory ECG Monitoring

White Ambulatory Ecg Recorder With LCD Support 12 Channel / 3 Channel ISO FDA

I'm Online Chat Now
Good quality Handheld ECG Machine for sales
Good quality Handheld ECG Machine for sales
Good quality and good service

—— Dr.Alam from Egypt

Perfect product,small and smart!

—— Mr.Yann from France

White Ambulatory Ecg Recorder With LCD Support 12 Channel / 3 Channel ISO FDA

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  White Ambulatory Ecg Recorder With LCD Support 12 Channel / 3 Channel ISO FDA Get Best Price

Product Details:
Place of Origin: Beijing , China (Mainland)
Brand Name: V&H
Certification: CE , ISO,FDA,Free Sales
Model Number: CV-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard Packing
Delivery Time: 7 working days after payment
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10 Units per week
Detailed Product Description
Product: V&H Professional 3 Or 12 Channel Portable Holter ECG Recorder Communication: SD Card Or USB
Record Time: 24 Hours Up To 72 Hours Power Supply: One AAA Battery
Size: 75×55×16(mm) Automatic Duplex Operation: Support
Channel: 12 Channel Or 3 Channel LCD Display: Support
High Light:

ambulatory monitoring device


ecg ambulatory monitoring

ECG Ambulatory Monitor Pocket White Recoder With LCD Support 12-Channel and 3-Channel

How to understand the  holter ecg device?

The model of the holter ecg device is CV3000,CV3000 is a remarkable advanced HOLTER system working for both 3-channel and 12-lead ECG recording and analysis. Thanks to its sophisticated software and elaborately designed recorder, CV3000 meets all high-end performance and fiscal responsibility.

With an Elite Holter Recorder you can have both 12-lead or 3-channel ECG recording depends on the cable connected to the recorder.This section shows several typical electrodes placements.Refer to your analysis system software and the physician for a recommended position.


The features about the holter ecg device:

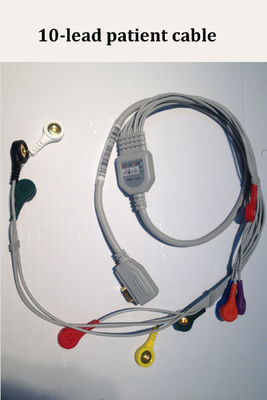

Channels: 10leads (12- channel) 5/7 leads(3-channel)
Resolution: 8-10 bits
Recording: Full disclosure
Download interface: SD card reader or USB line
Sample rate: 1024/Sec max
Frequency response: 0.05HZ to 60Hz
Signal verification: LCD display
Pacemaker Detection: support


The unique advantages about our holter ecg device of software system:

Atrial arrhythmia analyzing tools

Heart rate turbulence

T-wave alternating analysis

QT dispersion

Obstructive sleep apnea syndrome

Options: Average ECG: VCG and VLP


The details features during the operation of the holter software system:

Automatic Templante Classification With Powerful Edition Tools

Automaic QRS positioning and morphological pattern recognition, a wide variety of arrhythmia templates

Combination of DEMIX anti confusing algorithm, RR-HIS rhythm technology and BIRDVIEW graphic classification, the most powerful templates edition tools ever developed in HOLTER system

ST-T Analysis And Trends

Editable automatic ST-T measurement and trend, combined with superimposition and scanning comparison to edit ST-T episodes: depression, elevation and slope, standard 12-lead for myocardial ischemia positioning

Atrial Arrhythmia Analyzing Tools

Atrial fibrillation Analysis with assistant tools

Heart Rate Turbulence(VE CHAOS, HRT) Analysis

Obstructive Sleep Apnea Syndrome Analysis

Heart Rate Variability

5-min, 1-hour, 24-hour or selectable time periods of monitoring
Time domain, frequency domain and complete nonlinear index

QT Dispersion Analysis

Pacemaker Analysis

Wide range of pacer types including VVI, AAI and DD, etc., producing a comprehensive pacemaker report

T-wave Alternating Analysis

A significant index for malignant arrhythmia and sudden cardiac death


White Ambulatory Ecg Recorder With LCD Support 12 Channel / 3 Channel ISO FDA

What is the Intended Uses for the holter ecg device?

The Holter ECG CV3000 is intended for patients requiring ambulatory (Holter) monitoring. The following is a listing of the most frequently used for the indications below :

  • Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.
  • Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.
  • Evaluation of patients for ST segment changes
  • Evaluation of a patient’s response after resuming occupational or recreational activities.
  • Evaluation of patients with pacemakers.
  • Reporting of time and frequency domain heart rate variability.
  • Reporting of QT Interval.


White Ambulatory Ecg Recorder With LCD Support 12 Channel / 3 Channel ISO FDA
