PC Based Portable EEG Machine

Neuro View 16 / 24 Channel ambulatory portable  EEG equipment


Quick Detail




Description


1. 24-channel digital EEG
2. EEG Mapping
3. Flash Stimulation
4. Audio Stimulation
5. Selectable lead: 9Uni-polar leads,3Bi-polar

Hot sale portable 24-channel digital EEG software

The use of digital technology for the pur poses of recording and reviewing of neurophysiological records is now the standard in the clinical environment. The application in the case of the electroencephalogram is generally referred as paperless EEG.

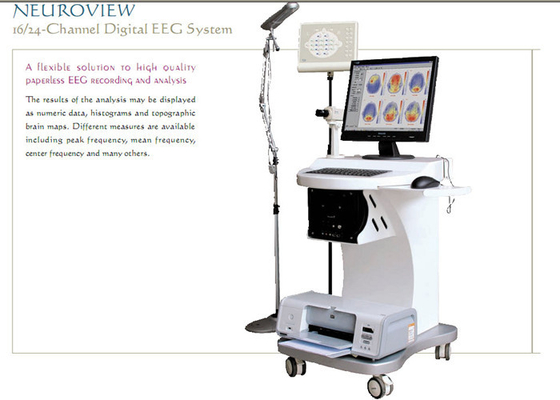

Neuro View paperless digital EEG system utilizes state of the art surface mount electronics technology for patient signal amplification.
The technology ensures that quality of patient signal delivered to the recording instrument is of a consistently high quality

In addition to the easy to use powerful review and reply facilities for routine clinical EEG, the Neuro View system incorporates additional sophisticated quantitative analysis.

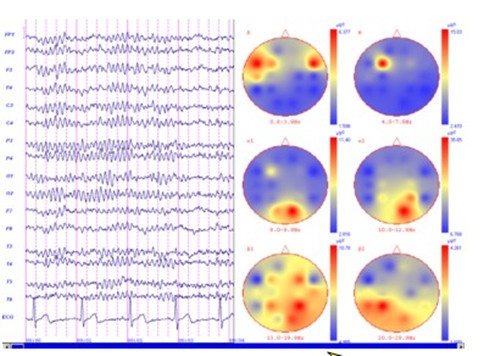

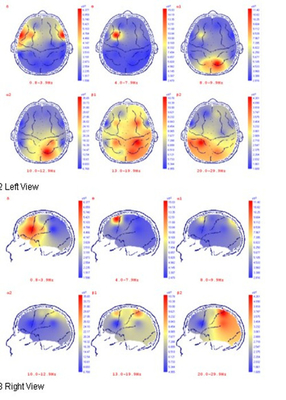

The results of analysis may be displayed as numeric data, histograms and topographic brain maps .A large number of data display measures are available including peak frequency, mean frequency, center frequency and many others.

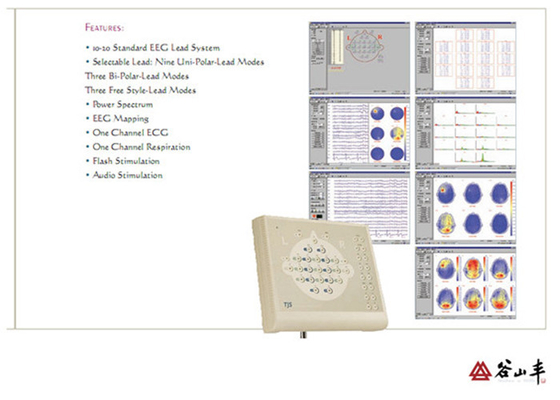

• 10-20 Standard Lead System
• Selectable lead:9Uni-polar leads,3Bi-polar leads,3Free style leads
• Power Spectrum
• EEG Mapping
• One Channel ECG
• One Channel Respiration
• Flash Stimulation
• Audio Stimulation
• Windows 98/2000/XP Based
• Isolated

PC configuration required


 A) CPU: above Intel PIII
 B) Memory: above 128M
 C) Hard disk: above 40G monitor resolution: 1024×768
Printers (choice assemble)
 A) Support for Windows driver
 B) Greater than 300DPI
 C) Color Inkjet
Camera resolution: more than 380 TV lines
