Product Details:
Payment & Shipping Terms:
|
Product: | Ambulatory ECG Monitoring For Portable USB ECG For PC WINDOWS CV200 | Color: | Grey And White |
---|---|---|---|
Connection: | USB Cable Or Wireless | Function: | ECG WORK STATION,Vector ECG |
Channels: | 12-LEAD ECG | Sampling:: | 1000 S/S/Ch,12 Bits, Simultaneously 12 Leads Recording |
Patient Cable: | Standard 10-wire,15-Pin D Connector | Dimensions: | 14912226 Mm(5.94.81.0 In.) |
High Light: | ambulatory monitoring device,ecg ambulatory monitoring |

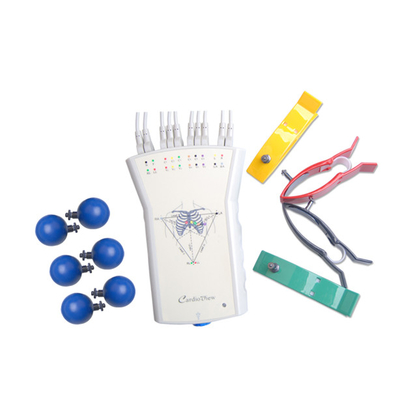

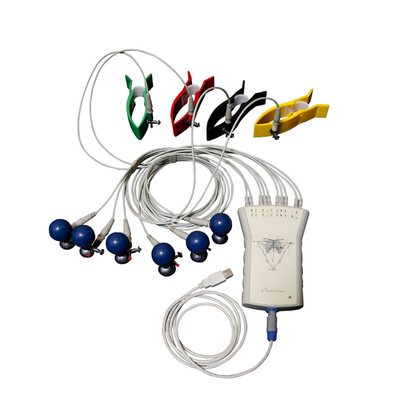

Portable USB ecg for PC WINDOWS CV200
CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and
Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and
prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers.
By means of regular updating of software,CV-200 remains state-of-the-art both now and in the
future.
With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200
guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the
patient.
VH- CV200-ECG work station specification | |
Sampling |
1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
Digital Resolution | 2µV |
Frequency Response | 0.05-250Hz(+3dB) |
Common Mode Rejection | >90dB |
Input Impedance | >10 M |
Time Constant | 3.2 Sec |
Maximum Electrode Potential | +300mV DC |
Dynamic Range | +10mV |
Isolate Voltage | 4000V |
Current Leek | <10µA |
Patient Cable | Standard 10-wire,15-Pin D Connector |

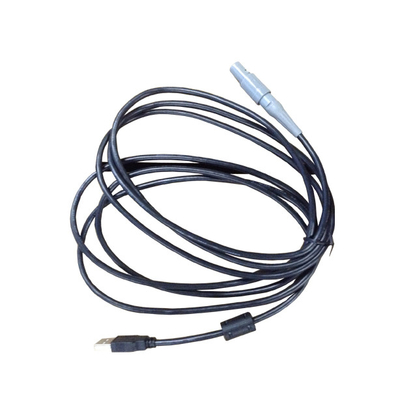

PC Interface | USB Connector |
Dimensions | 14912226 mm(5.94.81.0 in.) |
