Mini PC ECG Device Ambulatory ECG Monitoring With Stable Software CE Approval

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Mini PC ECG Device Ambulatory ECG Monitoring With Stable Software CE Approval Get Best Price

Product Details:
Place of Origin: Beijing, China (Mainland)
Brand Name: V&H
Certification: CE ,ISO13485
Model Number: CV200
Payment & Shipping Terms:
Minimum Order Quantity: 1box/boxes
Price: negotiation
Packaging Details: standard package
Delivery Time: within 3 days after arrival of payment
Payment Terms: T/T , Western Union,Paypal,Credit card
Supply Ability: 50 Box/Boxes / Week
Detailed Product Description
Product: Ambulatory ECG Monitoring To Mini PC ECG Device With Stable Software Color: Grey
Connection: USB Function: ECG WORK STATION,Vector ECG
Channels: 12-LEAD ECG Sampling:: 1000 S/S/Ch,12 Bits, Simultaneously 12 Leads Recording
Patient Cable: Standard 10-wire,15-Pin D Connector Dimensions: 14912226 Mm(5.94.81.0 In.)
High Light:

ambulatory ecg recorder

,

ecg ambulatory monitoring





Ambulatory ECG Monitoring To Mini PC ECG Device With Stable Software





CV-200-Rest ECG,VCG and VLP

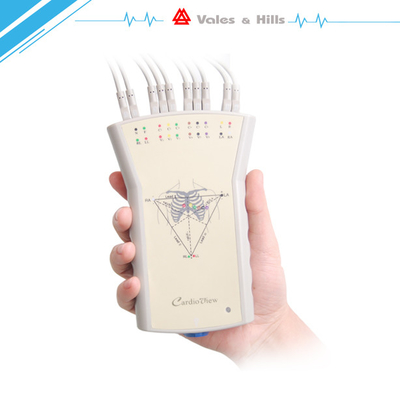

CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.



Minimum Computer System Requirements:

· Pentium III Processor

· 128MB RAM

· 20G HD

· Windows XP Operating System

· VGA Compatible Display

· Windows XP Compatible Laser or Inkjet Printer





VH- CV200-ECG work station specification
Sampling 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording
Digital Resolution 2µV
Frequency Response 0.05-250Hz(+3dB)
Common Mode Rejection >90dB
Input Impedance >10 M
Time Constant 3.2 Sec
Maximum Electrode Potential +300mV DC
Dynamic Range +10mV
Isolate Voltage 4000V
Current Leek <10µA

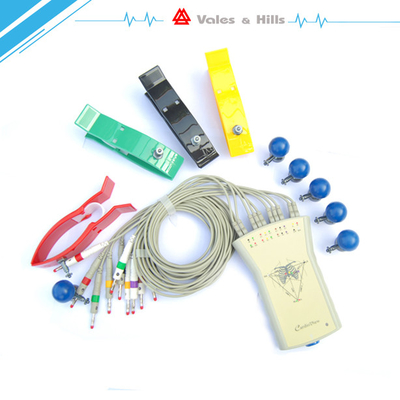

Patient Cable Standard 10-wire,15-Pin D Connector
PC Interface USB Connector
Dimensions 14912226 mm(5.94.81.0 in.)
