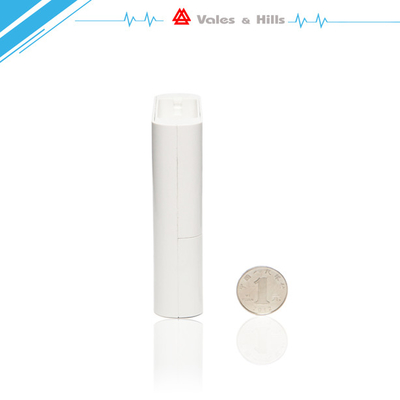

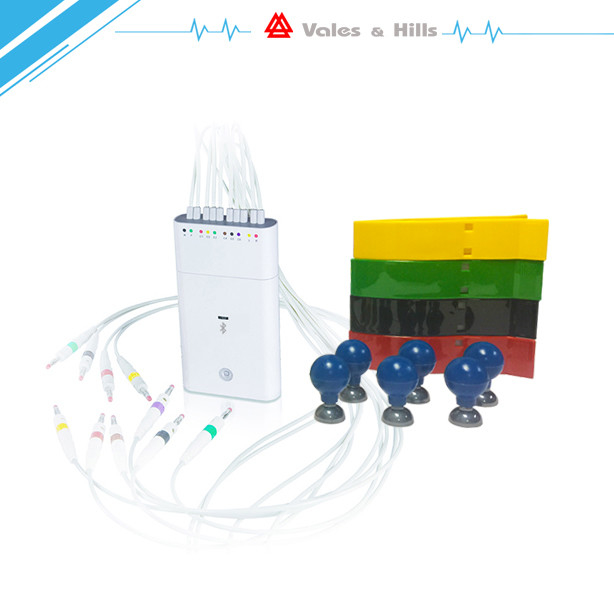

Mini Mobile 12 Channel Medical Resting ECG Machine ECG Monitoring Device

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Mini Mobile 12 Channel Medical Resting ECG Machine ECG Monitoring Device Get Best Price

Product Details:
Place of Origin: China(Mainland)
Brand Name: V&H
Certification: CE & ISO
Model Number: iCV200BLE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set/sets
Packaging Details: standard package
Delivery Time: 7 working days after payment
Payment Terms: T/T, L/C, Western Union,PayPal
Supply Ability: 50 sets per week
Detailed Product Description
Product: Mini Mobile 12 Channel Medical Resting ECG Machine From China Type: Resting
Transfer Way: Bluetooth Defibrillation Protect: Build-in
Channel: Standard 12 Channel Time Constant: >3.2Sec
Power: 2 AA Batteries Common Mode Rejection: >110dB
Resolution: 0.4uV Sampling Rate: Recording 16 Bits
High Light:

ECG monitoring device

,

electrocardiograph machine



Mini mobile 12 channel medical resting ECG machine from China





3 advantages-



Small in Size - Portable
Bluetooth Communication - Speedy
Automatic Measurement / Interpretation -Professional



Bluetooth 4.0 advantages -



Save Power
Start within 1s
Stable Signal
Long distance transmission - 10m





ECG Recorder Specifications



Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Common Mode Rejection >110dB
Resolution 0.4uV
Input Impedance >20M
Frequency Response 0.05-250Hz(±3bB)
Time Constant >3.2Sec
Maximum Electrode Potential ±300mV DC
Dynamic Range ±15mV
Power 2xAA Batteries
Communication Bluetooth
Defibrillation Project  Build-in



Mini Mobile 12 Channel Medical Resting ECG Machine ECG Monitoring Device

Mini Mobile 12 Channel Medical Resting ECG Machine ECG Monitoring Device

FAQ



1. What is your MOQ?

    Our MOQ is 1 set for ECG device.

2. What kinds of certificates do your products have?

    All our products have CE & ISO certifiacte.

3. What is the warranty?

    The free warranty is 12 months from the day of purchaseing. If there is any fault for our products within     the free warranty period, we will repair it and change the fault for free.

4. Do you offer technical support?

    Yes, we offer professional engineer for customers on the technical support.
