Wireless Bluetooth Mobile ECG Machine Diagnostic Instruments For IOS
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| COLOR: | WHITE&GREY&GREEN*ORANGE | Communication: | Bluetooth |
|---|---|---|---|
| Transfer Way: | Wireless | Type: | Resting |
| Defibrillation Project: | Built-in | Properties: | Diagnostic Instruments |
| Other: | ICloud ECG Web | ||
| High Light: | electrocardiograph machine,ECG monitoring device |
||
Mobile ECG Machine Box Connective By bluetooth For iOS Applications With Green,Grey and Orange Colors to be Chosen

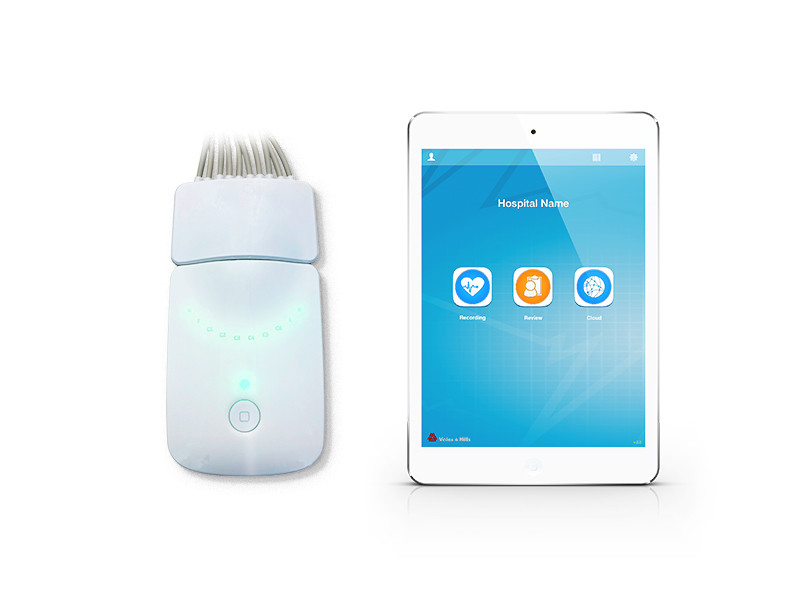

About the iCV200S Acquisition Recorder:

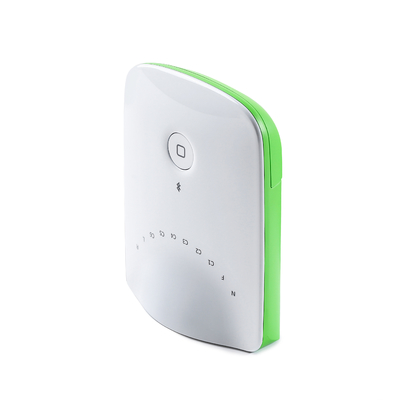

The frontside of recorder:
The Backside Recorder:
The advantage of device:
1.The first professional electro cardio gram (ECG) product developed on iOS portable device.
2.High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
3.Automatic measurements and interpretations.
4.Bluetooth compatible

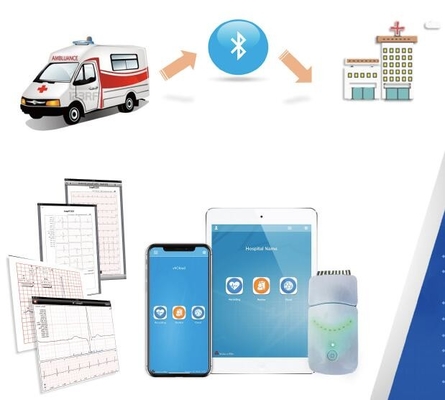

The illustration on the operation Schematic show further accessories and the interface where they are connected:
ECG Recorder Specifications
Sampling Rate |
A/D:24K SPS/ChRecording:1K SPS/Ch |
Quantization Precision |
A/D:24 BitsRecording:16 Bits |
Resolution |
0.4uV |
Common Mode Rejection |
>110dB |
Input Impedance |
>20M |
Frequency Response |
0.05-250Hz(±3bB) |
Time Constant |
>3.2Sec |
Maximum Electrode Potential |
±300mV DC |
Dynamic Range |
±15mV |
Defibrillation Project |
Build-in |
The main features of the iPad ECG Machine iCV200S:
1,Simultaneous 12-lead ECG
2,Automatic Measurements and Interpretations
3,Measurements with fingers
4,ecgCloud and ECG network
5,Indicator light for lead Shedding
6,Recorder connect:Bluetooth 4.0
7,Recorder Power:2*AAA batteries
The Package of the device:
The method of delivery of cargoes in our company:
