COLOR: | WHITE | MATERIAL: | PLACTIC |
---|---|---|---|
CHANNEL: | REAL TIME 12-LEAD ECG | TYPE: | RESTING |
POWER SUPPLY: | 2*AA BATTERIES | TRANSFER WAY: | WIRELESS,BLUETOOTH |
OTHER: | ICLOUD ECG WEB | ||
High Light: | electrocardiograph machine,ECG monitoring device |
The advantages of the device:
1,simultaneous 12-lead ecg
2,automatic measurements and interpretationd
3,Patent two-finger measurement
4,Filters:Low-Pass(different setting)
baseline Wander
Motion Artifact
5,Report:Air Print or PDF upload
6,Connection by bluetooth
How about the device:

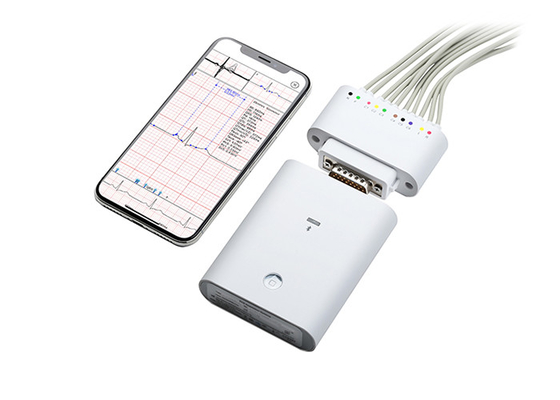

The ipad ECG machine is Innovative,Intuitive and Simple device,which is a unique gadget meets the users professional requirements in Cardiac Maket.
The Specifications for the iPad ECG recorder:
Sampling Rate |
A/D:24K SPS/Ch Recording:1K SPS/Ch |
Quantization Precision |
A/D:24 Bits Recording:16 Bits |
Resolution | 0.4uV |
Common Mode Rejection | >110dB |
Input Impedance | >20M |
Frequency Response | 0.05-250Hz(±3bB) |
Time Constant | >3.2Sec |
Maximum Electrode Potential | ±300mV DC |
Dynamic Range | ±15mV |
Defibrillation Project |
Build-in |

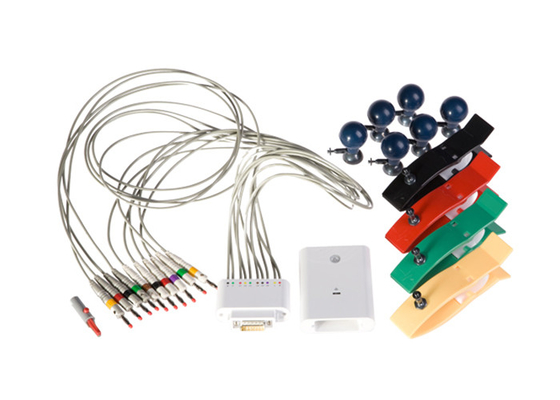

The package of the unit for the device:
The business negotiation in different international exhibitions,you can know us more well.
About our device you can know more:
FAQ
Q:Can the device make auto measurement?
A:The device is simultaneous 12-lead ecg with automatic measurements and interpretations.
Q:Is the device can be for Andriod system?
A:The device only for iOS applications,such ad iphone,iPad,Ipad-mini.
Q:How to connect to the device to see ECGs?
A:The transfer way is by Bluetooth,It is wireless ecg device.
Q:If possible to lose data during transferring?and how to prove your ECG is concise?
A:The device is supported by the Bluetooth 4.0 technology,with quick and stable speed to transfer data.For the ECG precision,all measurements and interpretations are based on the European CSE DATABSED,which will be assured for its authority.
Q:How long distance for the bluetooth technology supported?
A:General situation,5-10 meters to be detected for the device.
Q:How to supply the power for the device?
A:2*AA ordinary batteries,not need rechargeable ones.
Q:How to check the ECGs or how to output the ecgs?
A:Two methods:Emailing or printing(air printer)
Q:How many certificates can be provided to support the demand of distributors?
A:CE,ISO13485,FREE SALES,CQ and CO etc.,will depend on the demand of our distributors.
