Bluetooth Mobile ECG Machine , Handheld EKG Monitor Automatic Interpretation
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | electrocardiograph machine,ECG Workstation |
||
|---|---|---|---|
Mobile stress test ECG machine by bluetooth with CE and ISO
Quick Detail
|
Name |
12- lead stress ECG test system |
Function |
automatically monitor and analysis ECG |
|
Type |
Stress |
Cable |
simultaneous 12-lead |
|
Connection |
bluetooth |
certification |
CE ISO |
Description
|
Brand Name |
V&H |
|
Model Number |
CV1200 |
|
Place of Origin |
Beijing, China (Mainland) |
|
Color |
Hite black grey |
|
Transfer way |
bluetooth |
1. Automatic ECG measurements and interpretation
2. CE approve
3. 12-channel ECG with ST measurement

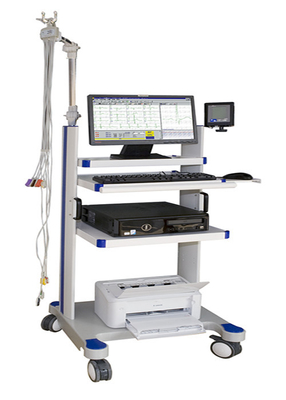

CV-1200 Stress Test System
CV-1200 Stress Test System is a perfect solution for Cardiology Diagnosis, it provides Record, Display, Archived, and Analyze ECG Recording and other Measurements
Standard Features
- Automatic ECG measurements and interpretation
- 12-channel fulldisclosure exercise ECG,with ST measurement and rhythm measurement
- Real time display,analyze HR,ST segment,and reanalyze ST segment
- ST,Delta ST,ST/HR,ST slope,J point and R point trends
- Data management system
- Built-in thermal printer records,3,6,or 12 channels simultaneously in real time
- Common laser printer interface for documentation on standard(A4) paper
-
CV-1200 controls selection of peripheral

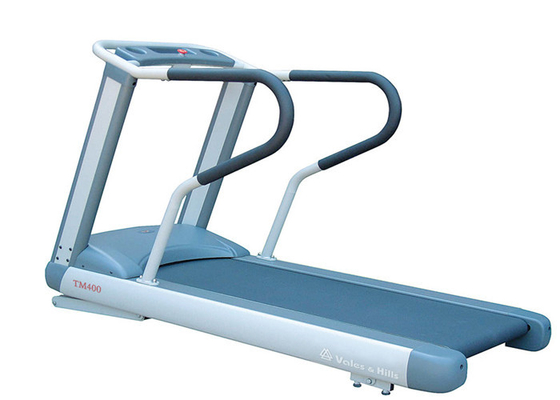

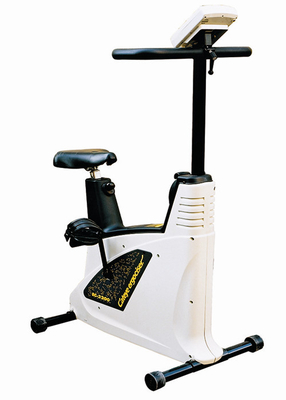

equipment(ergometers,treadmills and NIBP) through integrated interface protocols(Bruce,Bruce modified,Balke ware,Ellestad,ect.) - Large color screen with high resolution for paperless operation
- Micosoft Windows XP operating system
Specification
|
CV-1200 Specification |
||
|
System
|
Monitor |
17"colour,high resolution |
|
Operator interface |
Standard alphanumeric PC keyboard, and mouse |
|
|
Power requirement |
110/230V,50/60Hz |
|
|
Battery |
emergency ECG capability with uninterrupted internal power supply for up to 3 minutes |
|
|
Operating system |
Microsoft Windows XP, Ergometer, Treadmill, NIBP |
|
|
Printing |
Chart paper |
Thermo reactive, Z-fold,width,A4 |
|
Paper speed |
12.5/25/50mm/sec |
|
|
Sensitivity |
5/10/20mm/mV |
|
|
Print format |
6/12 channel printout, |
|
|
Technical Date |
Frequency Response |
0.05-70Hz(+3dB) |
|
Sampling rate |
1000Hz/ch |
|
|
CMR |
>90dB |
|
|
Maximum Electrode Potential |
+300mV DC |
|
|
Isolation |
4000V |
|
|
Current Leek |
<10µA |
|
|
Digital Resolution |
12 bits |
|
|
Input range |
+10 mV |
|
|
Software optional |
Automatic ECG measurements and interpretation, |
|
|
Environment Condition |
Temperature operating |
10 to 40 |
|
Temperature storage |
-10 to 50 |
|
|
Pressure operating |
860hPa to 1060hPa |
|
About us
Vales and Hills Biomedical Tech. Ltd. (V&H), located on BDA International Park, BEIJING, has been one of the leading developers of PC based ECG technology for years. V&H keeps giving great resources to approach the edge that comes with the idea of sophisticated simplicity in products design and the discipline of management in quality control. V&H is mostly engaged in PC-ECG, ECG Workstation, ECG Stress Test, Digital EEG Series and Ambulatory Blood Pressure Monitor. V&H's core concept is teamwork on which we have built a truly top-notch team, conceived in collaboration, dedicated to the proposition that we all colleagues working our hearts out toward the goal in rewarding people and society. V&H keeps looking to the future with hope and determination.
.
