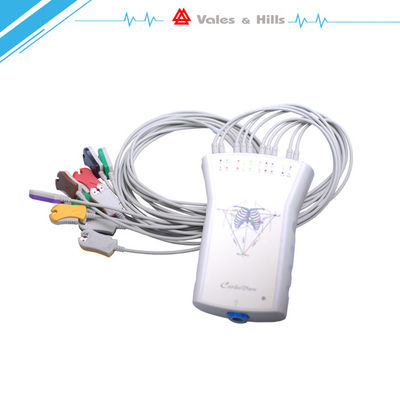

12 Channel Stress Test Exercise Ecg Machine USB Cable Data Transmission

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  12 Channel Stress Test Exercise Ecg Machine USB Cable Data Transmission Get Best Price

Product Details:
Place of Origin: Beijing,China(Mainland)
Brand Name: V & H
Certification: CE&ISO
Model Number: CV-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Standard Package:25cm*20cm*13cm
Delivery Time: 5-8 Work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50 Units Per Week
Detailed Product Description
Product: 2017 New Arriving 12 Channel Stress Test Ecg Device For Medical Type: Stress Test
Function: Automatical Monitor And Analysis ECG Cable: Simultaneous 12-lead
Data Transmission: USB Cable Defibrillation Protect: Build-in
High Light:

stress ecg machine


stress test system


2017 new arriving 12 channel stress test ecg device for medical





Brand Name V&H
Model Number CV1200
Place of Origin Beijing, China (Mainland)
Color Hite black grey
Transfer way USB


1. Automatic ECG measurements and interpretation

2. CE & ISO approve

3. 12- channel ECG with ST measurement



Why select CV1200——Advantages:

  • High resolution A/D: 24K SPS/Ch, 24 bits
  • VH patent technology: Digital synchronous A/D
  • VH patent technology: Myoelectric filter based on ECG spectrum
  • VH proprietary algorithm: Minimum delay baseline wander eraser
  • Different filters selectable : LP, HP and artifact filters
  • Skin-electrode impedance measurement
  • Preset classical protocols and unlimited user defined protocols
  • Arrhythmia detect and live review
  • Various trends: tracking and compare
  • Soft anti-aliased ECG display
  • ECG, BP, SO2, METS, max VO2, Distance and Time synchronous display
  • Rehabilitation mode: Cardiac function recovery protocols
  • Independent testing for different treadmills and ergometers


Software for function:

  1. 6MWT with treadmill
  2. Impedance testing
  3. User preference defining
  4. Real time ST-T measuring
  5. Real time electrode testing
  6. Real time arrhythmia detect




CV-1200 Specification





Monitor 17" colour,high resolution
Operator interface Standard alphanumeric PC keyboard, and mouse
Power requirement 110/230V,50/60Hz
Battery emergency ECG capability with uninterrupted internal power supply for up to 3 minutes
Operating system Microsoft Windows XP, Ergometer, Treadmill, NIBP
Printing Chart paper Thermo reactive, Z-fold,width,A4
Paper speed 12.5/25/50mm/sec
Sensitivity 5/10/20mm/mV
Print format 6/12 channel printout,
Automatic baseline adjustment
Technical Date Frequency Response



Sampling rate 1000Hz/ch
CMR >90dB
Maximum Electrode Potential +300mV DC
Isolation 4000V
Current Leek <10µA
Digital Resolution 12 bits
Input range +10 mV
Software optional Automatic ECG measurements and interpretation,
Vector Cardiograph
Ventricular Late Potentials, QT Dispersion
Environment Condition Temperature operating 10 to 40
Temperature storage -10 to 50
Pressure operating 860hPa to 1060hPa
