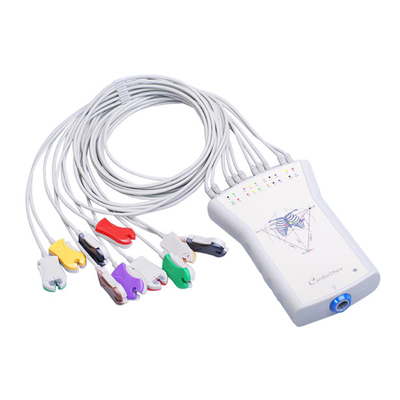

Stress ECG Analysis System 12-channel Grey Acquisition Box For USB Connection

About the Stress ECG device CV1200:

The Stress ECG Analysis System is consist of sampling hardware device, special software system and exercise equipment. Its functions include 12 leads ECG synchronously sampling, and data storage, ST segment analysis, ECG review in dynamic/static/superimposed during the whole exercise process, and trend chart analysis of multiple parameters, multiple printable report, etc. The patient's exercise state can be recorded timely and accurately, which reflects patient’s heart function, providing reliable data for doctors in diagnoses.

Stress testing provides the information about how your heart works during physical stress(excercise) and how healthy your heart is during the test,you will walk on a treadmill or ride on a bicycle while your heart rate,blood pressure and electrocardiogram and monitored.As the test progress,the level of exertion is gradually increased.

The advantage of stress ecg device in the software:

• High resolution A/D:24K SPS/Ch, 24 bits

• VH patent technology: Digital synchronous A/D

• VH patent technology: Myoelectric filter based on ECG spectrum

• VH proprietary algorithm: Minimum delay baseline wander eraser

• Different filters selectable: LP, HP and artifact filters

• Skin-electrode impedance measurement

• Preset classical protocols and unlimited user difined protocols

• Arrhythmia detec and live review

• Various trends: tracking and compare

• Soft anti-aliased ECG display

• ECG, BP, SO2, METS, MAX VO2, Distance and Time synchronous display

• Rehabilitation mode:Cardiac function recovery protocols

• Independent testing fo different treadmills and ergometers

• Bluetooth communication

You can download the software and entry it and see main interface,as belowed:

ECG Acquisition Box CV1200 Specifications:

Accessories

Acquisition box        1pc

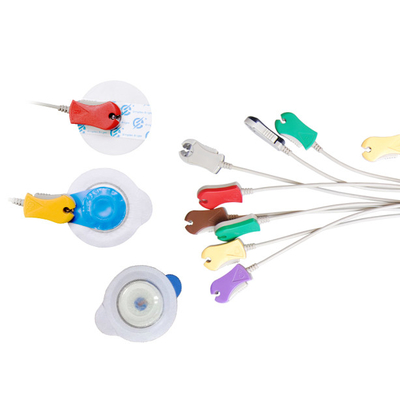

12-Lead cables       1pc
Disposible Electrodes      1bag
Grounding wire        1pc

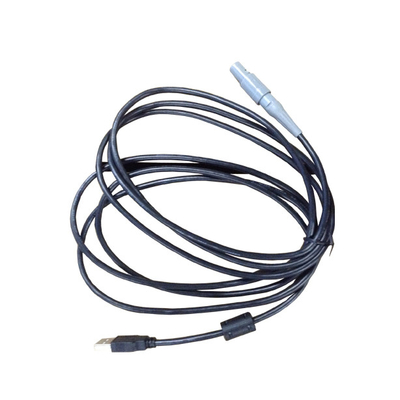

USB cable                1pc

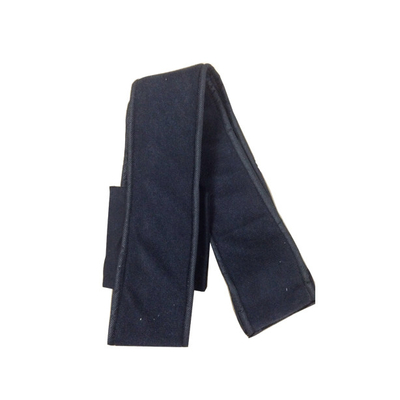

Belt.                          1pc
CD (software

+User Manual)          1pc

R232 cable                1pc
