Stress Test Handheld ECG Monitor Excercise Gery Recoder For 12 Channel Electrocardiograph

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Stress Test Handheld ECG Monitor Excercise Gery Recoder For 12 Channel Electrocardiograph Get Best Price

Product Details:
Place of Origin: Beijing,China(Mainland)
Brand Name: V & H
Certification: CE&ISO
Model Number: CV-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Standard Package:25cm*20cm*13cm
Delivery Time: 5-8 Work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50 Units Per Week
Detailed Product Description
Product: Hot-selling Hospital Stress Test 12 Channel ECG Machine For Medical Type: Stress
Color: Grey Channel: 12
Cable: Simultaneous 12-lead Function: Automactically Monitor And Analysis ECG
High Light:

stress ecg machine

,

stress test system

Stress Test ECG Handheld ECG Monitor Excercise Gery Recoder For 12-Channel Electrocardiograph



What's the Stress ECG device?

Stress testing provides the information about how your heart works during physical stress(excercise) and how healthy your heart is during the test,you will walk on a treadmill or ride on a bicycle while your heart rate,blood pressure and electrocardiogram and monitored.As the test progress,the level of exertion is gradually increased.

The Stress ECG Analysis System is consist of sampling hardware device, special software system and exercise equipment. Its functions include 12 leads ECG synchronously sampling, and data storage, ST segment analysis, ECG review in dynamic/static/superimposed during the whole exercise process, and trend chart analysis of multiple parameters, multiple printable report, etc. The patient's exercise state can be recorded timely and accurately, which reflects patient’s heart function, providing reliable data for doctors in diagnoses.

Stress Test Handheld ECG Monitor Excercise Gery Recoder For 12 Channel Electrocardiograph

The advantage of stress ecg device in the software:

  • High resolution A/D:24K SPS/Ch, 24 bits
  • VH patent technology: Digital synchronous A/D
  • VH patent technology: Myoelectric filter based on ECG spectrum
  • VH proprietary algorithm: Minimum delay baseline wander eraser
  • Different filters selectable: LP, HP and artifact filters
  • Skin-electrode impedance measurement
  • Preset classical protocols and unlimited user difined protocols
  • Arrhythmia detec and live review
  • Various trends: tracking and compare
  • Soft anti-aliased ECG display
  • ECG, BP, SO2, METS, MAX VO2, Distance and Time synchronous display
  • Rehabilitation mode:Cardiac function recovery protocols
  • Independent testing fo different treadmills and ergometers
  • Bluetooth communication

You can download the software and entry it and see main interface,as belowed:





Stress Test Handheld ECG Monitor Excercise Gery Recoder For 12 Channel Electrocardiograph

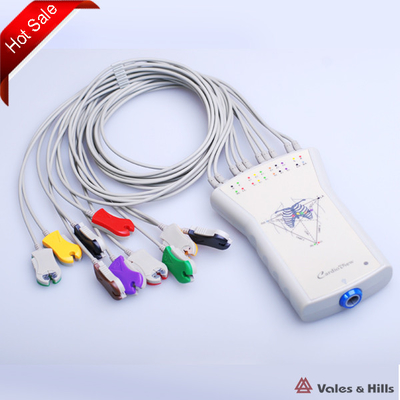

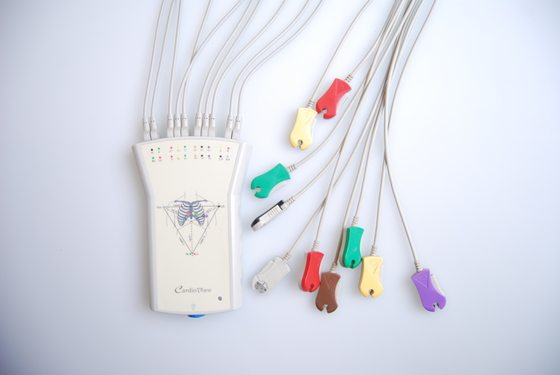

ECG Acquisition Box CV1200 Specifications:



Sampling Rate: A/D: 24K SPS / Ch
Recording: 1K SPS/Ch
Patented Multi-Channel Synchronous A/D
Quantization Precision: A/D: 24 Bits
Recording: 16 Bits
Resolution: 0.4µ V
Common Mode Rejection: >100dB
Input Impedence: >20MΩ
Frequency Response: 0.05-250Hz(±3dB)
Time Constant: ≥3.2Sec.


Stress Test Handheld ECG Monitor Excercise Gery Recoder For 12 Channel Electrocardiograph

Standard Features of CV1200



  • 12-channel resting ECG
  • Automatic ECG measurements and interpretation
  • 12-channel full disclosure exercise ECG, with ST measurement and rhythm measurement
  • Data management system
  • Common laser printer interface for documentation on standard(A4) paper
  • Large color screen with high resolution for paperless operation
  • Microsoft Windows XP/7 operating system
  • Real time display, analyze HR,ST segment, and reanalyze ST segment
  • Built-in thermal printer records, 12 channels simultaneously in real time
  • ST, Delta ST,ST/HR,ST slope, J point and R point trends
  • CV-1200 controls selection of peripheral equipment ( ergometers, treadmills and NIBP) through integrated interface protocols(Bruce, Bruce modified, Balke ware, Ellestad, ect.)



Stress Test Handheld ECG Monitor Excercise Gery Recoder For 12 Channel Electrocardiograph
