12 Lead Resting IPad / IPod Bluetooth ECG Device High Definition Display
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product: | 12 Lead Resting IPad / IPod ECG Machine From Chinese Manufacturer | Type: | Resting |
|---|---|---|---|
| Transfer Way: | Bluetooth | Defibrillation Protect: | Build-in |
| Channel: | Standard 12 Channel | Dynamic Range: | ±15mV |
| High Light: | bluetooth ecg device,iphone ecg monitor |
||
12 lead resting iPad / iPod ECG machine from Chinese manufacturer
Advantages:
- The first professional elsctrocardiogram (ECG) product developed on android portable device.
- High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
- Automatic measurements and interpretations.
- Simultaneous 12-lead ECG
- Bluetooth communication
ECG Recorder Specifications
| Sampling Rate |
A/D:24K SPS/Ch Recording:1K SPS/Ch |
| Quantization Precision |
A/D:24 Bits Recording:16 Bits |
| Common Mode Rejection | >110dB |
| Resolution | 0.4uV |
| Input Impedance | >20M |
| Frequency Response | 0.05-250Hz(±3bB) |
| Time Constant | >3.2Sec |
| Maximum Electrode Potential | ±300mV DC |
| Dynamic Range | ±15mV |

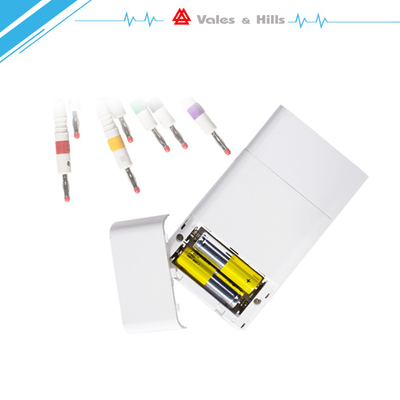

| Power | 2xAA Batteries |
| Communication | Bluetooth |
| Defibrillation Project | Build-in |

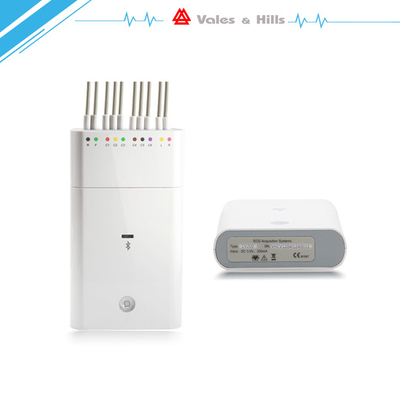

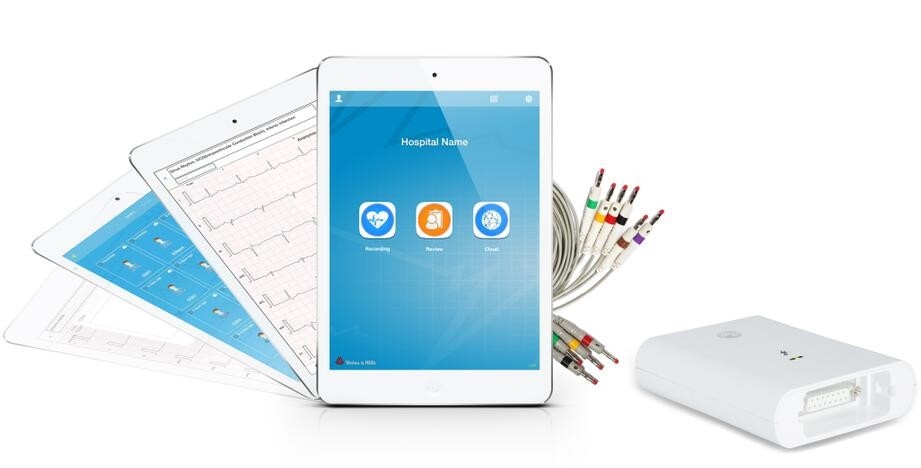

iCV200BLE is a 12-lead resting electrocardiograph system working with iPad(Apple APP: vhECG Pro). With iCV200BLE youcan record, view and interpret resting ECGs. You can also use it to print ECGs in various formats and send ECGs to vhCloud for sharing.
About Us
Vales and Hills Biomedical Tech.Ltd is a global provider centralizing of electrocardiograph(ECG) products and ECG web services for clinical applications. For over 10 years,we have been creating a complete CardioView product line which covers Portable ECG(IOS and Android ), PC-ECG,ECG Workstation,Holter,ABPM, ECG Network and ECG Cloud Service.
Which a pioneering spirit in technology innovation, V&H has set up a truly top-notch team with determination, conceived in collaboration, dedicated to the proposition that clients and people are the first to be focused on. We continue to invest in advanced technology to meet the ever-changing clinical needs of the market.
