Product: | 2017 Trending Products Portable Rest ECG Recorder For Medical | Type: | Resting |
---|---|---|---|
Function: | ECG Work Station,Vector ECG | Cable: | 12-Lead Patient Cable |
Color: | White | Interface: | USB |
Sampling Rate: | 1000SPS/Channel | Defibrillation Protect:: | Built-in Box |
High Light: | pocket ecg machine,diagnostic ecg machine |
Resting Portable Ecg Recorder , White 12 Lead Ecg Machine For Medical
CV-200+ Rest ECG,VCG and VLP
CARDIO VIEW CV-200+ is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data.
In the Windows XP environment, different reports can be viewed on screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user friendly environment and 100% safety for the patient.
Specification
VH- CV200+ ECG work station specification | |
Sampling | 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
Digital Resolution | 2µV |
Frequency Response | 0.05-250Hz(+3dB) |
Common Mode Rejection | >90dB |
Input Impedance | >10 M |
Time Constant | 3.2 Sec |
Maximum Electrode Potential | +300mV DC |
Dynamic Range | +10mV |
Isolate Voltage | 4000V |
Current Leek | <10µA |

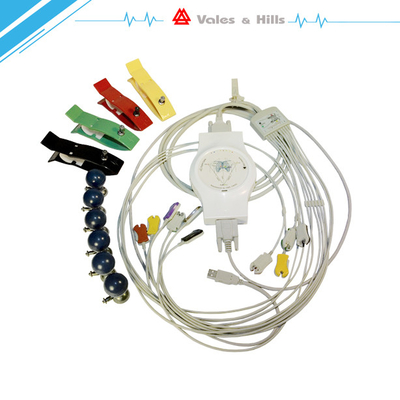

Patient Cable | Standard 10-wire,15-Pin D Connector |
PC Interface | USB Connector |
Dimensions | 14912226 mm(5.94.81.0 in.) |
Minimum Computer System Requirements:
About us
Vales and Hills Biomedical Tech.Ltd is a global provider centralizing of electrocardiograph(ECG) products and ECG web services for clinical applications. For over 10 years,we have been creating a complete CardioView product line which covers Portable ECG(IOS and Android ), PC-ECG,ECG Workstation,Holter,ABPM, ECG Network and ECG Cloud Service.
