Portable ECG Recorder 10 Lead Digital ECG Machine For Home EKG Monitor

I'm Online Chat Now
Certification
Good quality Handheld ECG Machine for sales
Good quality Handheld ECG Machine for sales
Good quality and good service

—— Dr.Alam from Egypt

Perfect product,small and smart!

—— Mr.Yann from France

Portable ECG Recorder 10 Lead Digital ECG Machine For Home EKG Monitor

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Portable ECG Recorder 10 Lead Digital ECG Machine For Home EKG Monitor Get Best Price

Product Details:
Place of Origin: Beijing, China (Mainland)
Brand Name: V&H
Certification: CE&ISO
Model Number: CV3000
Payment & Shipping Terms:
Minimum Order Quantity: 1box/boxes
Price: negotiation
Packaging Details: standard package
Delivery Time: 5 days after payment
Payment Terms: Ex works T/T Money Gram
Supply Ability: 10 Box/Boxes / Week
Detailed Product Description
Color: White Material: Plastic
Lead: 3-channel Ecg And 12-lead Ecg Language: English,French,Japanese,Spanish,Turkey,Russian So On
Data Restore: 36G SD Card Recodring Time: 24 Hours To 72 Hours
Power: AAA Battery
High Light:

pocket ecg machine

,

diagnostic ecg machine





3 - channel 12 channel  ECG holter recorder with 5 wire





Quick Detail



Name

ECG holter

Sample rate

1024/Sec max

Channels

3-channel, 12-channel

Recording

Full disclosure

Resolution

8-16 bits

Download interface

SD card reader or USB line





Description



Brand Name

V&H

Model Number

CV3000

Place of Origin

Beijing, China (Mainland)

Type

Medical Micro-Devices

Color

white

Signal verification

LCD display

Frequency response

0.05HZ to 60Hz

Certification

CE/ISO/FDA

Function

ST-T Analysis, Pacemaker, HRV, T-Wave Alternance



CV3000 is a remarkable advanced Holter systerm working for both 3-channel and 12 lead ECG recording and analysis .Thanks to it's sophisticated sofware and elaborately designed recorder,CV3000 meets all high -end performance and fiscal responsibility.





Holter monitor Specifications



Memory





Recording time: 24-72 hours

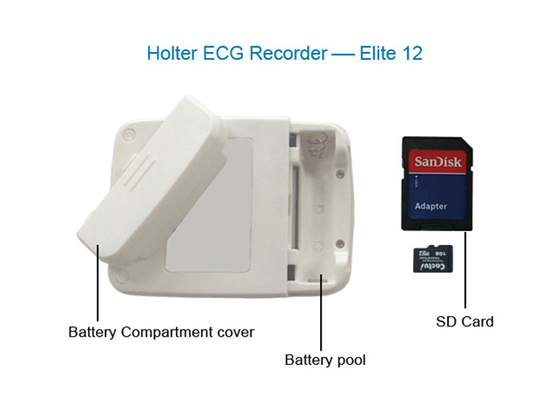

Type:  SD



Capacity: 36GB



Physical



Dimensions: 72*53*16mm



Weight with battery: 62g



Enclosure: ABS plastic



Operating position: any orientation



Electrical

Gain settings: 0.5X, 1X and 2X



Connector: 19 pin

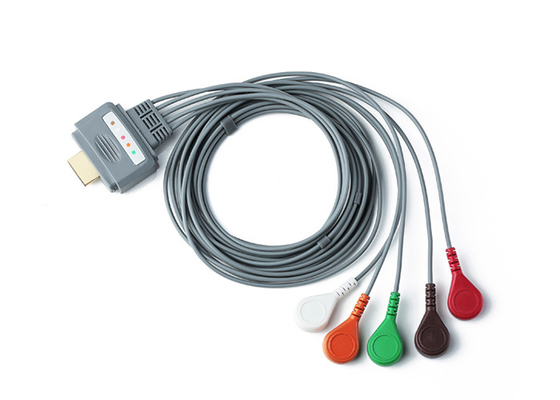

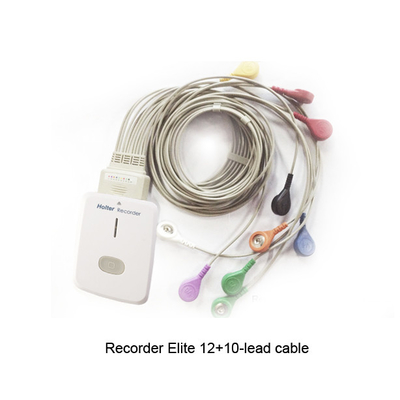

Patient cable: 10 leads or 5 leads or 7 leads







Holter monitor



The CV3000 Holter ECG is intended for patients requiring ambulatory (Holter) monitoring. The following is a

listing of the most frequently used for the indications below:

(1) Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.

(2) Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.

(3) Evaluation of patients for ST segment changes

(4) Evaluation of a patient’s response after resuming occupational or recreational activities.

(5) Evaluation of patients with pacemakers.

(6) Reporting of time and frequency domain heart rate variability.

(7) Reporting of QT Interval.



About us



 Vales and Hills Biomedical Tech. Ltd. (V&H), located on BDA International Park, BEIJING, has been one of the leading developers of PC based ECG technology for years. V&H keeps giving great resources to approach the edge that comes with the idea of sophisticated simplicity in products design and the discipline of management in quality control. V&H is mostly engaged in PC-ECG, ECG Workstation, ECG Stress Test, Digital EEG Series and Ambulatory Blood Pressure Monitor. V&H's core concept is teamwork on which we have built a truly top-notch team, conceived in collaboration, dedicated to the proposition that we all colleagues working our hearts out toward the goal in rewarding people and society. V&H keeps looking to the future with hope and determination

Portable ECG Recorder 10 Lead Digital ECG Machine For Home EKG Monitor

Portable ECG Recorder 10 Lead Digital ECG Machine For Home EKG Monitor

Portable ECG Recorder 10 Lead Digital ECG Machine For Home EKG Monitor
