Automatic 12 Channel Stress Test Ecg Electrocardiogram Machine With Treadmill
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product: | New Design Automatic 12 Channel Stress Test ECG Machine With Treadmill | Model Number: | CV1200 |
|---|---|---|---|
| Type: | Stress | Function: | Automatical Monitor And Analysis ECG! |
| Cable: | Simultaneous 12-lead | Connection Way: | USB To PC |
| High Light: | stress ecg machine,stress test system |
||
Automatic 12 Channel Stress Test Ecg Electrocardiogram Machine With Treadmill
Description
| Brand Name | V&H |
| Model Number | CV1200 |
| Place of Origin | Beijing, China (Mainland) |
| Color | Hite black grey |
| Transfer way | USB |
1. Automatic ECG measurements and interpretation
2. CE approve
3. 12- channel ECG with ST measurement
CV-1200 Stress Test System
CV-1200 Stress Test System is a perfect solution for Cardiology Diagnosis, it provides Record, Display, Archived, and Analyze ECG Recording and other Measurements.

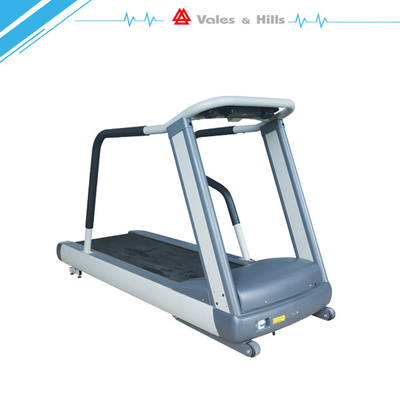

As a multi-function ECG Workstation, the CV1200 ECG Acquisition Systems increase the stress test function, it will give you a totally new feeling, which will help you work swiftly, diagnose accurately and get to a new high level of your career. The ECG Acquisition Systems can work smoothly interfacing with treadmill and ergometer.
Standard Features
- Automatic ECG measurements and interpretation
- 12- channel fulldisclosure exercise ECG,with ST measurement and rhythm measurement
- Real time display,analyze HR,ST segment,and reanalyze ST segment
- ST,Delta ST,ST/HR,ST slope,J point and R point trends
- Data management system
- Built-in thermal printer records,3,6,or 12 channels simultaneously in real time
- Common laser printer interface for documentation on standard(A4) paper
- CV-1200 controls selection of peripheral
equipment(ergometers,treadmills and NIBP) through integrated interface protocols(Bruce,Bruce modified,Balke ware,Ellestad,ect.) - Large color screen with high resolution for paperless operation
- Micosoft Windows XP operating system
Specification
| CV-1200 Specification | ||
|
System
|
Monitor | 17" colour,high resolution |
| Operator interface | Standard alphanumeric PC keyboard, and mouse | |
| Power requirement | 110/230V,50/60Hz | |
| Battery | emergency ECG capability with uninterrupted internal power supply for up to 3 minutes | |
| Operating system | Microsoft Windows XP, Ergometer, Treadmill, NIBP | |
| Printing | Chart paper | Thermo reactive, Z-fold,width,A4 |
| Paper speed | 12.5/25/50mm/sec | |
| Sensitivity | 5/10/20mm/mV | |
| Print format | 6/12 channel printout, Automatic baseline adjustment |
|
| Technical Date | Frequency Response |
0.05-70Hz(+3dB) |
| Sampling rate | 1000Hz/ch | |
| CMR | >90dB | |
| Maximum Electrode Potential | +300mV DC | |
| Isolation | 4000V | |
| Current Leek | <10µA | |
| Digital Resolution | 12 bits | |
| Input range | +10 mV | |
| Software optional | Automatic ECG measurements and interpretation, Vector Cardiograph Ventricular Late Potentials, QT Dispersion |
|
| Environment Condition | Temperature operating | 10 to 40 |
| Temperature storage | -10 to 50 | |
| Pressure operating | 860hPa to 1060hPa | |
