Handheld Medical Stress Test Ecg Monitor With Bluetooth Module iCV1200

Handheld Medical Stress Test Ecg Monitor With Bluetooth Module iCV1200

Handheld Medical Stress Test Ecg Monitor With Bluetooth Module iCV1200

As a multi-function ECG Workstation, the iCV1200 ECG Acquisition Systems increase the stress test function, it will give you a totally new feeling, which will help you work swiftly, diagnose accurately and get to a new high level of your career. The ECG Acquisition Systems can work smoothly interfacing with treadmill and ergometer.

Device specification

 Sampling: 500Hz

Channels: 12

Sensitivity; 5/10/20mm/mV

Frequency Response: 0.05-250Hz(±3dB)

Common Mode Rejection: >60dB

Input Impedance: >5MΩ

Polarity voltage: ±300mV

Current leak :< 20μA

Dimensions: 132L×75W×23H mm

1,12 lead ST segment measurement point can be set and changed according to HR by user during data sampling

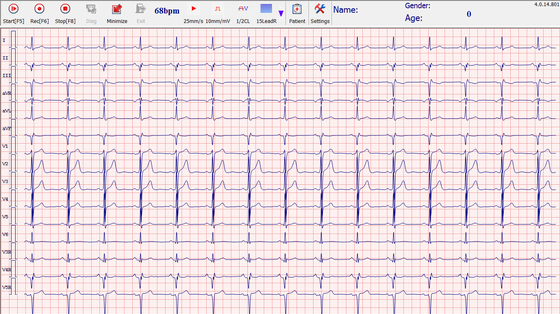

  2,Real time analyze HR,ST segment and their trends, real time display and print 12 leadssimultaneous   ECG

 3, Protocols can be edited flexibly to work with different manufacturers’ treadmills

  4,Recorded ECG data can be replayed, so it is very convenient for doctors to view the ECG changes

 5, Offer detailed data for all stages

  6,Offer average ECG waves for 12 leads and all stages, help doctor to see the changes among different stages

  7,Treadmill starts from zero speed to ensure safety of patient

 8, Auto control of the speed and incline of the treadmill

  9,Test heart rate dynamically and Give alarm signal automatically

  Can save large quantity of patient data which can be reviewed, frozen and analyzed by doctors at any time

 10, Unique anti-artifact protocols to ensure stable waves

  11,Real time print of many selectable formats, no special printing paper needed

 12, Capacity for processing and memorizing numerous data

 13,Capable of recording ± 5 mV input signal

Advantage of stress test ecg with Bluetooth Module:

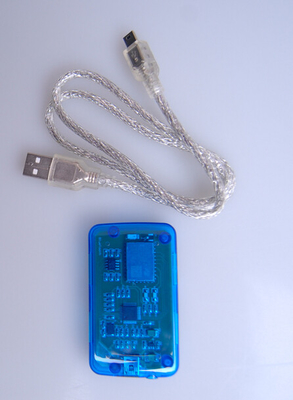

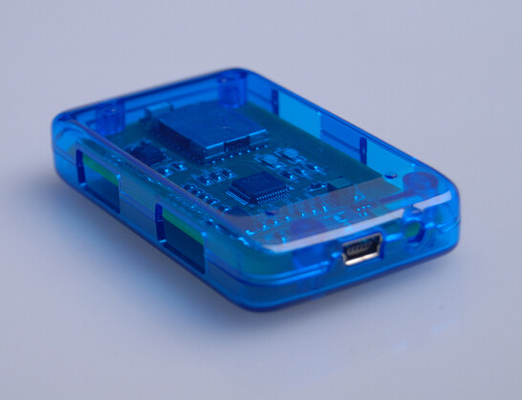

Bluetooth stress ECG machine
1. rest, stress,

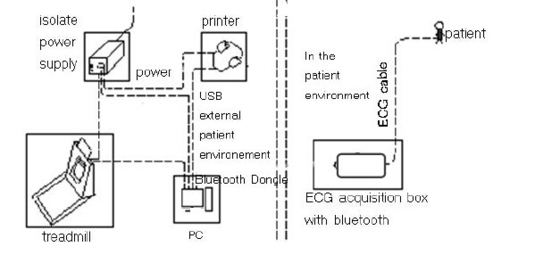

2. PC and box connecte by bluetooth
3. 12-Lead
4 . CE-0197, ISO
