Product Details:
Payment & Shipping Terms:
|
High Light: | pocket ecg machine,hand held ecg |
---|

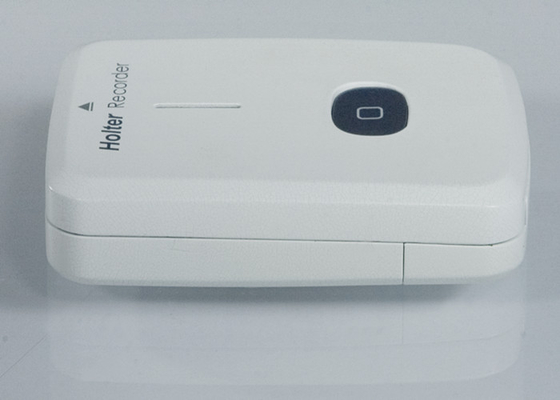

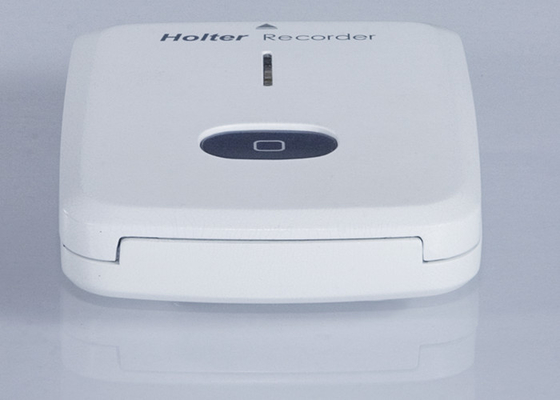

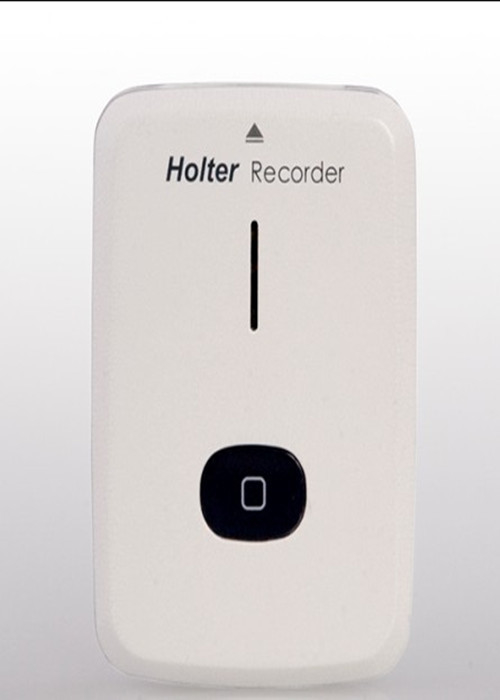

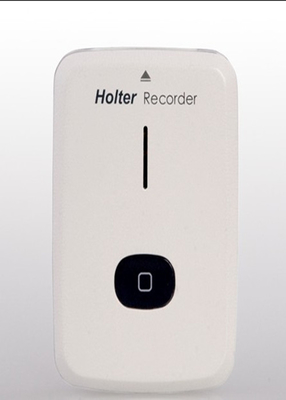

3 channel ECG holter portable ECG recorder with 5 wire
Quick Detail
Name |
ECG holter |
Sample rate |
1024/Sec max |
Channels |
3- channel, 12- channel |
Recording |
Full disclosure |
Resolution |
8-16 bits |
Download interface |
SD card reader or USB line |
Description
Brand Name |
V&H |
Model Number |
CV3000 |
Place of Origin |
Beijing, China (Mainland) |
Type |
Medical Micro-Devices |
Color |
white |
Signal verification |
LCD display |
Frequency response |
0.05HZ to 60Hz |
Certification |
CE/ISO/FDA |
Function |
ST-T Analysis, Pacemaker, HRV, T-Wave Alternance |
Holter monitor Specifications
Memory
|
Recording time: 24-72 hours
Type: SD
Capacity: 2GB
|
Physical
|
Dimensions: 72*53*16mm
Weight with battery: 62g
Enclosure: ABS plastic
Operating position: any orientation
|
Electrical |
Gain settings: 0.5X, 1X and 2X
Connector: 19 pin
Patient cable: 10 leads or 5 leads
|
Holter monitor
The CV3000 Holter ECG is intended for patients requiring ambulatory (Holter) monitoring. The following is a
listing of the most frequently used for the indications below:
(1) Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.
(2) Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.
(3) Evaluation of patients for ST segment changes
(4) Evaluation of a patient’s response after resuming occupational or recreational activities.
(5) Evaluation of patients with pacemakers.
(6) Reporting of time and frequency domain heart rate variability.
(7) Reporting of QT Interval.
