USB Portable ECG Recorder Hospital Ambulatory ECG Monitoring 1024/Sec

I'm Online Chat Now
Certification
Good quality Handheld ECG Machine for sales
Good quality Handheld ECG Machine for sales
Good quality and good service

—— Dr.Alam from Egypt

Perfect product,small and smart!

—— Mr.Yann from France

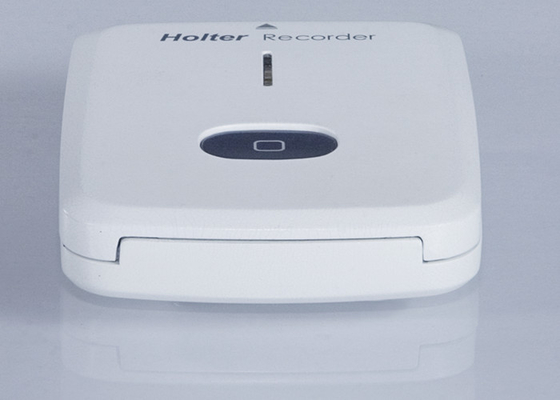

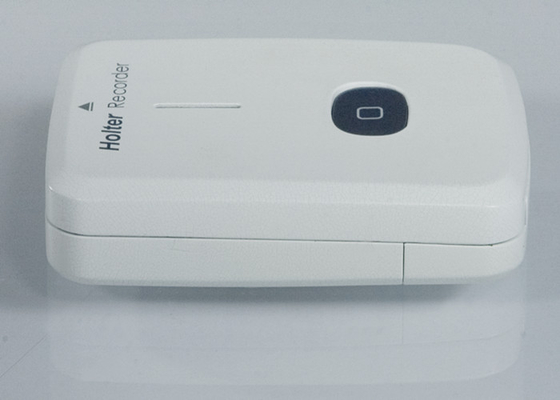

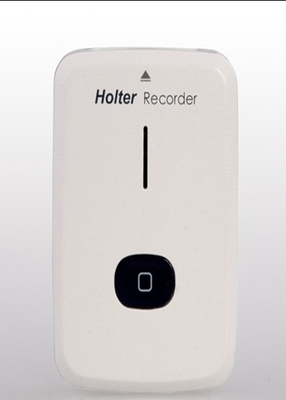

USB Portable ECG Recorder Hospital Ambulatory ECG Monitoring 1024/Sec

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  USB Portable ECG Recorder Hospital Ambulatory ECG Monitoring 1024/Sec Get Best Price

Product Details:
Place of Origin: Beijing, China (Mainland)
Brand Name: V&H
Certification: CE&ISO
Model Number: CV3000
Payment & Shipping Terms:
Minimum Order Quantity: 1box/boxes
Price: negotiation
Packaging Details: standard package
Delivery Time: 5 days after payment
Payment Terms: Ex works T/T Money Gram
Supply Ability: 10 Box/Boxes / Week
Detailed Product Description
High Light:

pocket ecg machine

,

hand held ecg





3 channel ECG holter portable ECG recorder with 5 wire





Quick Detail



Name

ECG holter

Sample rate

1024/Sec max

Channels

3- channel, 12- channel

Recording

Full disclosure

Resolution

8-16 bits

Download interface

SD card reader or USB line





Description



Brand Name

V&H

Model Number

CV3000

Place of Origin

Beijing, China (Mainland)

Type

Medical Micro-Devices

Color

white

Signal verification

LCD display

Frequency response

0.05HZ to 60Hz

Certification

CE/ISO/FDA

Function

ST-T Analysis, Pacemaker, HRV, T-Wave Alternance



Holter monitor Specifications



Memory





Recording time: 24-72 hours



Type:  SD



Capacity: 2GB



Physical



Dimensions: 72*53*16mm



Weight with battery: 62g



Enclosure: ABS plastic



Operating position: any orientation



Electrical

Gain settings: 0.5X, 1X and 2X



Connector: 19 pin



Patient cable: 10 leads or 5 leads



Holter monitor



The CV3000 Holter ECG is intended for patients requiring ambulatory (Holter) monitoring. The following is a

listing of the most frequently used for the indications below:

(1) Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.

(2) Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.

(3) Evaluation of patients for ST segment changes

(4) Evaluation of a patient’s response after resuming occupational or recreational activities.

(5) Evaluation of patients with pacemakers.

(6) Reporting of time and frequency domain heart rate variability.

(7) Reporting of QT Interval.
