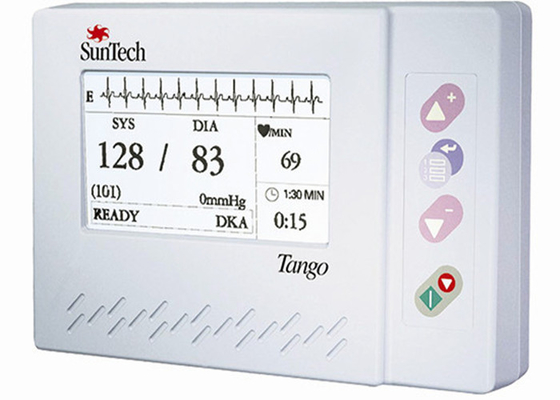

Cardiology Diagnosis Stress Test ECG Machine , ECG Monitoring System

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Cardiology Diagnosis Stress Test ECG Machine , ECG Monitoring System Get Best Price

Product Details:
Place of Origin: Beijing, China (Mainland)
Brand Name: V&H
Certification: CE&ISO
Model Number: CV1200
Payment & Shipping Terms:
Minimum Order Quantity: 1box/boxes
Price: negotiation
Packaging Details: standard package
Delivery Time: 15 days after payment
Payment Terms: Ex works T/T Money Gram
Supply Ability: 10 Box/Boxes / Week
Detailed Product Description
High Light:

stress ecg machine

,

exercise ecg machine

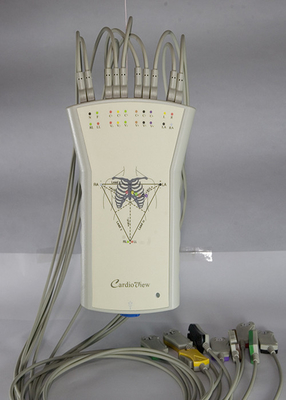

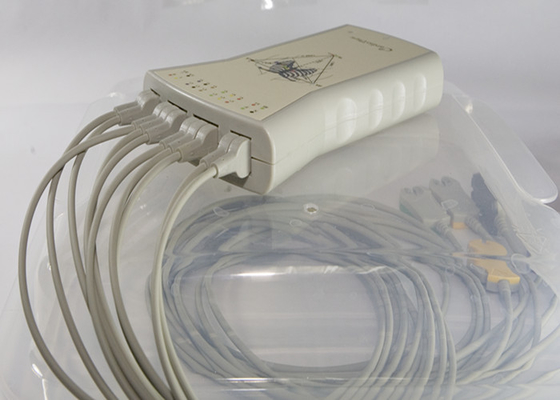

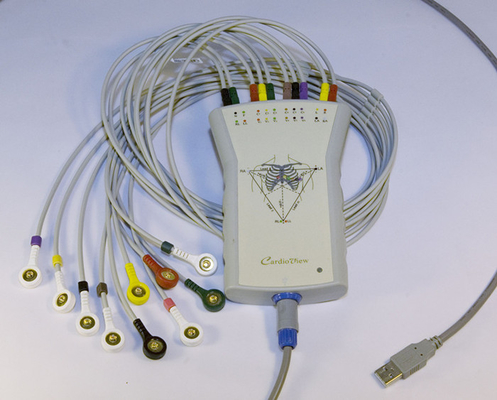

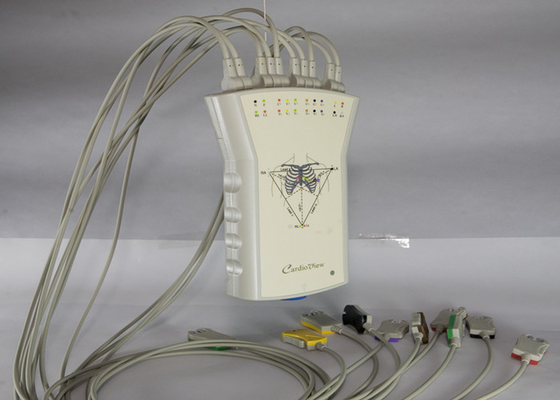

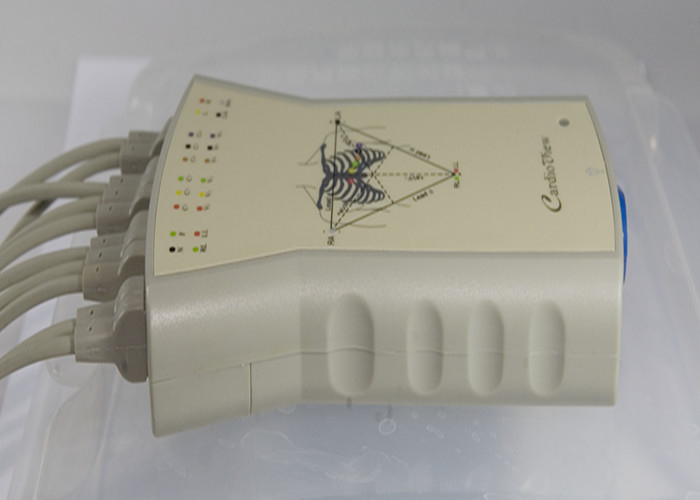

Hospital oriented stress test ECG with  12 - lead





Quick Detail



Name

12- lead stress ECG

test system

Function

automatically monitor and analysis ECG

Type

Stress

Cable

simultaneous 12- lead

Connection

USB

certification

CE ISO





Description



Brand Name

V&H

Model Number

CV1200

Place of Origin

Beijing, China (Mainland)

Color

Hite  black grey

Transfer way

USB



1.  Automatic ECG measurements and interpretation

2. CE approve

3. 12- channel ECG with ST measurement

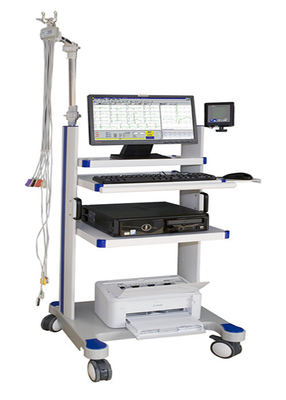

CV-1200 Stress Test System

CV-1200 Stress Test System is a perfect solution for Cardiology Diagnosis, it provides Record, Display, Archived, and Analyze ECG Recording and other Measurements





Standard Features



  • Automatic ECG measurements and interpretation
  • 12- channel fulldisclosure exercise ECG,with ST measurement and rhythm measurement
  • Real time display,analyze HR,ST segment,and reanalyze ST segment
  • ST,Delta ST,ST/HR,ST slope,J point and R point trends
  • Data management system
  • Built-in thermal printer records,3,6,or 12 channels simultaneously in real time
  • Common laser printer interface for documentation on standard(A4) paper

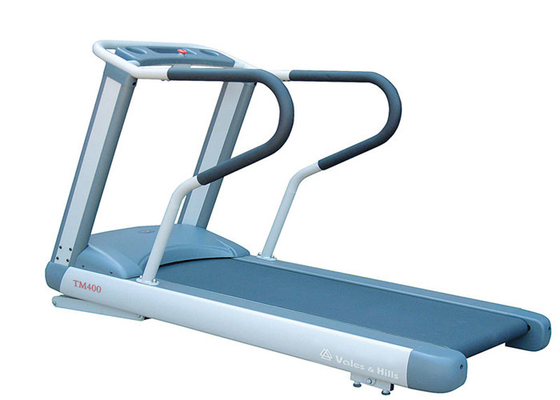

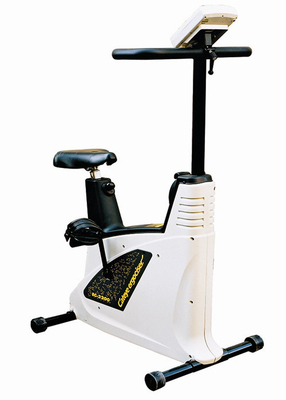

  • CV-1200 controls selection of peripheral
    equipment(ergometers,treadmills and NIBP) through integrated interface protocols(Bruce,Bruce modified,Balke ware,Ellestad,ect.)
  • Large color screen with high resolution for paperless operation
  • Micosoft Windows XP operating system

Cardiology Diagnosis Stress Test ECG Machine , ECG Monitoring System

Specification



                      CV-1200 Specification

System







Monitor

17" colour,high resolution

Operator interface

Standard alphanumeric PC keyboard, and mouse

Power requirement

110/230V,50/60Hz

Battery

emergency ECG capability with uninterrupted internal power supply for up to 3 minutes

Operating system

Microsoft Windows XP, Ergometer, Treadmill, NIBP

Printing

Chart paper

Thermo reactive, Z-fold,width,A4

Paper speed

12.5/25/50mm/sec

Sensitivity

5/10/20mm/mV

Print format

6/12 channel printout,
Automatic baseline adjustment

Technical Date

Frequency Response



0.05-70Hz(+3dB)

Sampling rate

1000Hz/ch

CMR

>90dB

Maximum Electrode Potential

+300mV DC

Isolation

4000V

Current Leek

<10µA

Digital Resolution

12 bits

Input range

+10 mV

Software optional

Automatic ECG measurements and interpretation,
Vector Cardiograph
Ventricular Late Potentials, QT Dispersion

Environment Condition

Temperature operating

10 to 40

Temperature storage

-10 to 50

Pressure operating

860hPa to 1060hPa



Cardiology Diagnosis Stress Test ECG Machine , ECG Monitoring System
