Standard 12 Channel Ipad Ecg Monitor Wireless Ecg Machine With 2 AA Batteries
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product: | Wireless ECG For IOS | Type: | Resting |
|---|---|---|---|
| Transfer Way: | Bluetooth | Defibrillation Protect: | Build-in |
| Channel: | Standard 12 Channel | Time Constant: | >3.2Sec |
| Power: | 2 AA Batteries | Resolution: | 0.4uV |
| High Light: | bluetooth ecg device,iphone ecg monitor |
||
iPad ECG Machine With White &Smart Box Bluetooth Connection EU/US Standard Supported?
How to know the iPad ECG Machine?

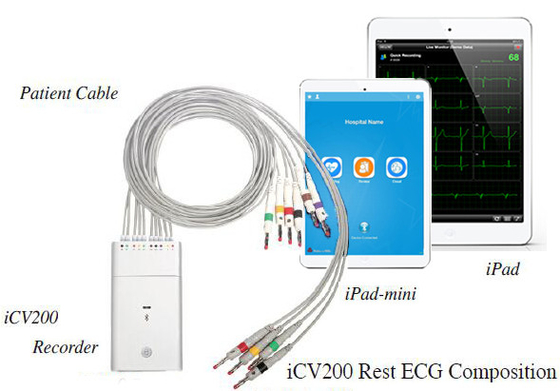

The model of Mobile ECG equipment is iCV200BLE,iCV200 (BLE) is a 12-lead resting electrocardiograph system working with iPad (Apple App: vhECG Pro). With iCV200(BLE) you can record, view and interpret resting ECGs. You can also use it to print ECGs in various formats and send ECGs to vhCloud for sharing.
The iCV200BLE in conjunction with the vhECG Pro App* displays, analyses and archives ECG recordings. Simultaneous 12-lead ECG,measurementsand interpretation are viewed quickly and easily on iOS device** giving professionals a brand new approach to monitoring and recording ECG data. Simply connect your iCV200BLE to the iPad or iPhone using WiFi or Bluetooth, open the vhECG Pro App and you have a comfortable and easy to use ECG device. Combined with the capability of signing to confirm diagnosis and emailing your ECG report as a PDF (or printing via a wireless printer-Options), the iCV200 offers the complete package for portable ECG monitoring
The major functions for the wireless ecg device:
Measurement with Two Fingers
Compare Two ECGs on Same Screen
iagnosis Results List
Repoet in JPEG/PDF, by Emial/Air Printer
vhECG ClDoud
ECG Recorder Specifications
| Sampling Rate |
A/D:24K SPS/Ch Recording:1K SPS/Ch |
| Quantization Precision |
A/D:24 Bits Recording:16 Bits |
| Common Mode Rejection | >110dB |
| Resolution | 0.4uV |
| Input Impedance | >20M |
| Frequency Response | 0.05-250Hz(±3bB) |
| Time Constant | >3.2Sec |
| Maximum Electrode Potential | ±300mV DC |
| Dynamic Range | ±15mV |
| Power | 2xAA Batteries |
| Communication | Bluetooth |
| Defibrillation Project | Build-in |
Advantages:
- The first professional elsctrocardiogram (ECG) product developed on IOS portable device.
- High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
- Automatic measurements and interpretations.
- Simultaneous 12-lead ECG
- Bluetooth communication
Automatic measurements&interpretation&Diagnosis
The multi-ecg compared:

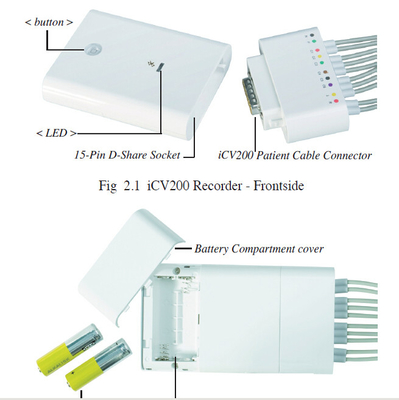

Status of LED light on acquisition recorder
OFF:power off----Color:None
ON:Power on-----Color:Green
Advantages of bluetooth communication
- Save Power
- Start within 1s
- Stable Signal
- Long distance transmission - 10m
-
tatus of LED light on acquisition recorder
OFF:power off----Color:None
ON:Power on-----Color:Green
