Home ProductsIPad ECG Machine

Bluetooth Connection IPad ECG Machine With Smart Electrocardiograph Recorders

I'm Online Chat Now
Certification
Good quality Handheld ECG Machine for sales
Good quality Handheld ECG Machine for sales
Good quality and good service

—— Dr.Alam from Egypt

Perfect product,small and smart!

—— Mr.Yann from France

Bluetooth Connection IPad ECG Machine With Smart Electrocardiograph Recorders

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Bluetooth Connection IPad ECG Machine With Smart Electrocardiograph Recorders Get Best Price

Product Details:
Place of Origin: Beijing,China
Brand Name: V&H
Certification: CE,ISO13485,FDA,CO and CQ so on
Model Number: iCV200S
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD
Packaging Details: Carton
Delivery Time: within 3-5 working days after payment arrival
Payment Terms: T/T, Western Union,CREDIT CARD
Supply Ability: 50 sets per week
Detailed Product Description
COLOR: WHITE&GREY&GREEN*ORANGE Communication: Bluetooth
Transfer Way: Wireless Type: Resting
Defibrillation Project: Built-in Properties: Diagnostic Instruments
Other: ICloud ECG Web
High Light:

bluetooth ecg device

,

iphone ecg monitor

iPad ECG Machine for iOS Applications with colorful and smart Electrocardiograph Recorders



How to understand the wireless ecg for iOS application?

The model of the device is iCV200S,it is a portable ECG system with CardioView family. It includes a data acquisition recorder and iCV200S 12-lead patient cable.The ECG waveform can be displayed on an iOS equipment installed a vhECG Pro App. The system is designed and manufactured by V&H for patient ECG recording with automatic measurements and interpretations.



About the iCV200S  Acquisition Recorder:

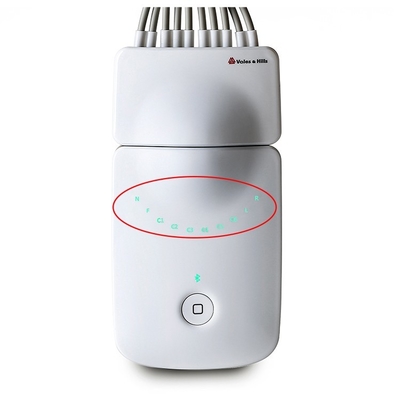

The frontside of recorder:

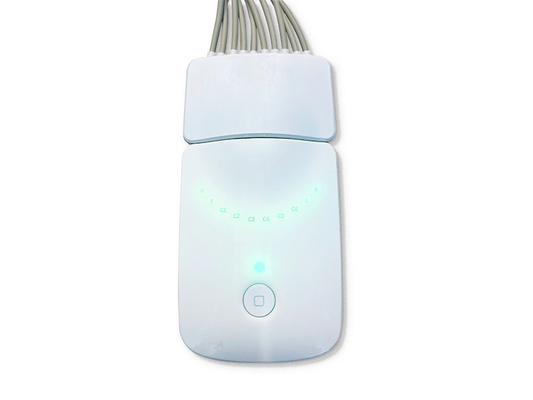

The Backside Recorder:

Bluetooth Connection IPad ECG Machine With Smart Electrocardiograph Recorders



The illustration on the operation Schematic show further accessories and the interface where they are connected:



Bluetooth Connection IPad ECG Machine With Smart Electrocardiograph Recorders

ECG Recorder Specifications

Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Resolution

0.4uV

Common Mode Rejection

>110dB

Input Impedance

>20M

Frequency Response

0.05-250Hz(±3bB)

Time Constant

>3.2Sec

Maximum Electrode Potential

±300mV DC

Dynamic Range

±15mV

Defibrillation Project

Build-in



Bluetooth Connection IPad ECG Machine With Smart Electrocardiograph Recorders



The advantage of device:

1.The first professional electro cardio gram (ECG) product developed on iOS portable device.

2.High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.

3.Automatic measurements and interpretations.

4.Bluetooth compatible



The main features of the iPad ECG Machine iCV200S:

1,Simultaneous 12-lead ECG

2,Automatic Measurements and Interpretations

3,Measurements with fingers

4,ecgCloud and ECG network

5,Indicator light for lead Shedding

6,Recorder connect:Bluetooth 4.0

7,Recorder Power:2*AAA batteries
