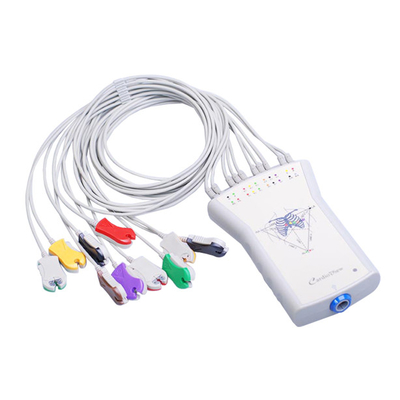

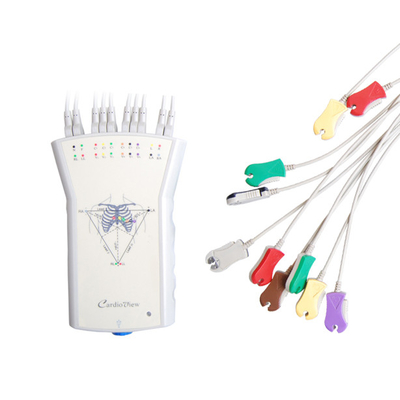

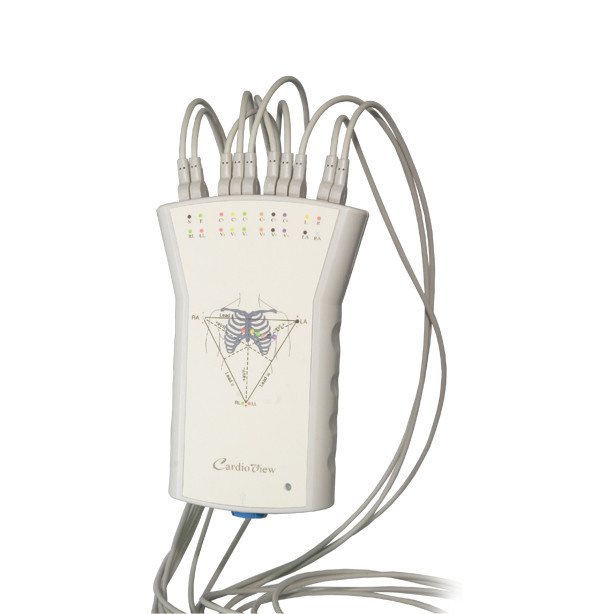

Handheld Heart Monitor USB Cable to connect to the PC Stable Software fuctions with Grey smart Box

The advantage of stress ecg device in the software:

• High resolution A/D:24K SPS/Ch, 24 bits
• VH patent technology: Digital synchronous A/D
• VH patent technology: Myoelectric filter based on ECG spectrum
• VH proprietary algorithm: Minimum delay baseline wander eraser
• Different filters selectable: LP, HP and artifact filters
• Skin-electrode impedance measurement
• Preset classical protocols and unlimited user difined protocols
• Arrhythmia detec and live review
• Various trends: tracking and compare
• Soft anti-aliased ECG display
• ECG, BP, SO2, METS, MAX VO2, Distance and Time synchronous display
• Rehabilitation mode:Cardiac function recovery protocols
• Independent testing fo different treadmills and ergometers
• Bluetooth communication

Whats is the Stress ECG device:

The Stress ECG Analysis System is consist of sampling hardware device, special software system and exercise equipment. Its functions include 12 leads ECG synchronously sampling, and data storage, ST segment analysis, ECG review in dynamic/static/superimposed during the whole exercise process, and trend chart analysis of multiple parameters, multiple printable report, etc. The patient's exercise state can be recorded timely and accurately, which reflects patient’s heart function, providing reliable data for doctors in diagnoses.

The advantage of stress ecg device in the software:

• High resolution A/D:24K SPS/Ch, 24 bits
• VH patent technology: Digital synchronous A/D
• VH patent technology: Myoelectric filter based on ECG spectrum
• VH proprietary algorithm: Minimum delay baseline wander eraser
• Different filters selectable: LP, HP and artifact filters
• Skin-electrode impedance measurement
• Preset classical protocols and unlimited user difined protocols
• Arrhythmia detec and live review
• Various trends: tracking and compare
• Soft anti-aliased ECG display
• ECG, BP, SO2, METS, MAX VO2, Distance and Time synchronous display
• Rehabilitation mode:Cardiac function recovery protocols
• Independent testing fo different treadmills and ergometers
• Bluetooth communication

You can download the software and entry it and see main interface,as belowed:

How connect the stress ecg device to the PC:

Step 1: Connect USB cable to the ECG Acquisition box.

Step 2: Connect the other end of USB cable to the PC and BP device ( optional item).

Note: The BP device is an optional device. If the ECG BOX connects with the BP and PC, the USB cable has two ports; if it connects the PC only, the USB cable has one port.

Step 3: Connect ECG cable to the patient.

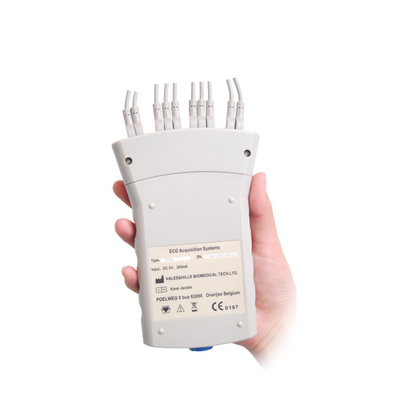

ECG Acquisition Box CV1200 device specification:

◆Sampling: 1000Hz

◆channels: 12

◆sensitivity; 5/10/20mm/mV

◆Frequency Response: 0.05-250Hz(±3dB)

◆Common Mode Rejection: >89dB

◆Input Impedance: >5MΩ

◆Isolate Voltage: 4000V

◆polarity voltage:±300mV

◆current leak: ,<20μA

◆PC Interface: USB Connector

◆Dimensions: 150L×80W×25H mm
