Portable Diagnostic Ecg Machine Wireless Bluetooth ECG ICV200S 12 Channel With Three Colors Recorder
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| COLOR: | WHITE&GREY&GREEN*ORANGE | Communication: | Bluetooth |
|---|---|---|---|
| Transfer Way: | Wireless | Type: | Resting |
| Defibrillation Project: | Built-in | Properties: | Diagnostic Instruments |
| Other: | ICloud ECG Web | ||
| High Light: | pocket ecg machine,diagnostic ecg machine,hand held ecg |
||
ECG Portable Device Wireless Bluetooth ECG ICV200S 12 Channel With Three Colors Recorder
About the wireless ecg device iCV200:

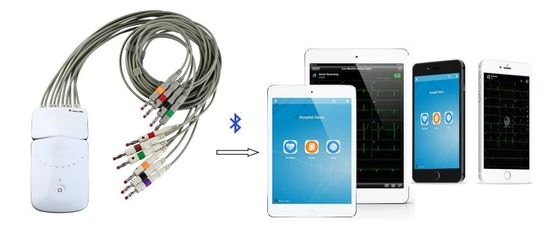

iCV200S is a portable ECG system. It includes a data acquisition recorder and patient cable. The product can connect with iOS equipment such as iPad, iPad-mini and iPhone through Bluetooth. The system is designed and manufactured by V&H, The ECG Acquisition System is capable of sampling, recording and analyzing patients resting ECG. This system is applicable to the heart disease analysis for the medical treatment institution.
Why you need the wireless ECG device iCV200S?
| Why need vhECG iCV200S | ||
| Professional enough | Simultaneous 12 channel ECG | |
| Portable enough | Mini size and light weight, easy to carry | |
| System | iOS, closed system, effectively protect the safety of ECG data | |
| Communication | Bluetooth 4.0 Stable signal,Fast transmission speed; Electricity saving |
|
| Cloud |
vhECG Cloud supported |
|
The main updated features of wireless ecg device iCV200S

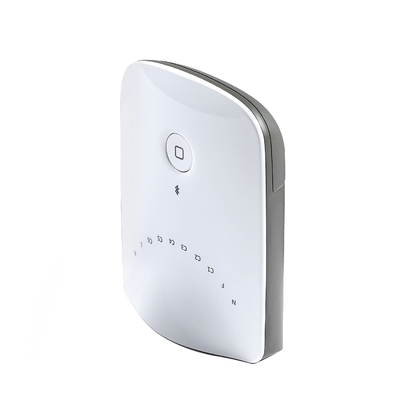

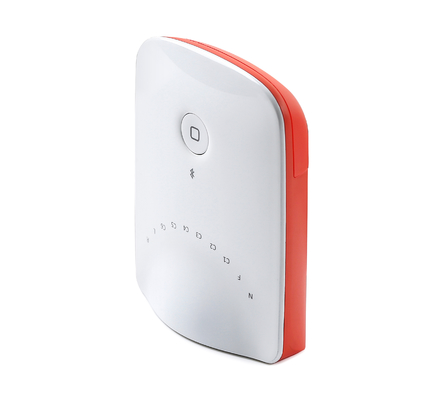

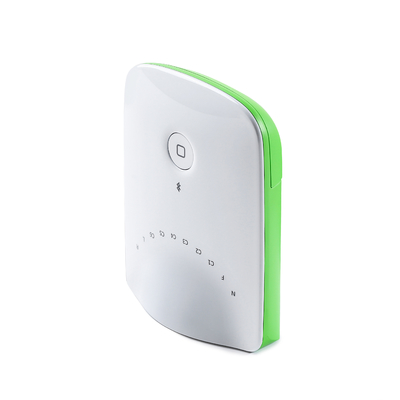

1,Fashion design, 3 Colors Selectable For vhECG iCV200S
GREEN
RED
GREY

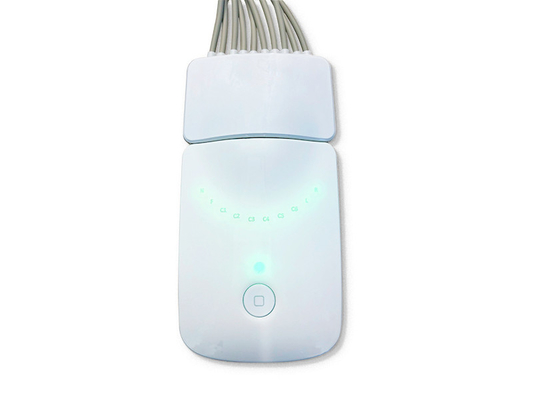

2,Indicator Light for Lead Shedding
Real-time monitoring of patient-to-device connections.
If the green indicator light is not on, that means the lead is sheddling.
3, iCV200S Resting ECG System for iPad is vhECG. It currently runs with the following languages:
The advantage of device:
1.The first professional electro cardio gram (ECG) product developed on iOS portable device.
2.High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
3.Automatic measurements and interpretations.
4.Bluetooth compatible
ECG Recorder Specifications
Sampling Rate |
A/D:24K SPS/ChRecording:1K SPS/Ch |
Quantization Precision |
A/D:24 BitsRecording:16 Bits |
Resolution |
0.4uV |
Common Mode Rejection |
>110dB |
Input Impedance |
>20M |
Frequency Response |
0.05-250Hz(±3bB) |
Time Constant |
>3.2Sec |
Maximum Electrode Potential |
±300mV DC |
Dynamic Range |
±15mV |
Defibrillation Project |
Build-in |
The main features of the iPad ECG Machine iCV200S:
1, Simultaneous 12-lead ECG
2, Automatic Measurements and Interpretations
3, Measurements with fingers
4, ecgCloud and ECG network
5, Indicator light for lead Shedding
6, Recorder connect:Bluetooth 4.0
7, Recorder Power:2*AAA batteries
