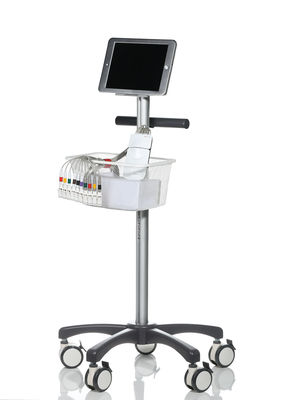

Clinics / Hospitals Multicolor Portable ECG Recorder ICV200S For 12 Lead ECG
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| COLOR: | WHITE&GREY&GREEN*ORANGE | Communication: | Bluetooth |
|---|---|---|---|
| Transfer Way: | Wireless | Type: | Resting |
| Defibrillation Project: | Built-in | Properties: | Diagnostic Instruments |
| Other: | ICloud ECG Web | ||
| High Light: | pocket ecg machine,diagnostic ecg machine |
||
ECG Portable Device in Clinics/Hospitals For 12 lead ECG With Smart and Multi-color Recorder iCV200S
The device of wireless ecg for iOS with Blueooth connection is iCV200S,the updated version of iCV200BLE.Three colors can be supported:Grey,Orange and Green.Different color for different application platform.
Compared with other kinds of ecg devices in the market:
contrastive terms |
VHECG-iCV200S |
others kinds of ECG devices |
Lead |
Simultanoues 12 channel ECG |
1/3/6 channel ECG |
Size |
mini size,portable&handle |
cumbersome |
Operation system |
iOSsmart&stable but closed system,effectivelyprotect ecg data safely |
Andriodunstable and open systemEcg data is insecure |
Communication technology |
Bluetooth 4.0Stable signal,fast speed of transferring,electricity saving |
BluetoothUnstable signal,low speed of transferring,electricity wasting |
Cloud support |
VHECG Cloud supported, telemedicine |
ECG cloud not support |
ECG Recorder Specifications
Sampling Rate |
A/D:24K SPS/ChRecording:1K SPS/Ch |
Quantization Precision |
A/D:24 BitsRecording:16 Bits |
Resolution |
0.4uV |
Common Mode Rejection |
>110dB |
Input Impedance |
>20M |
Frequency Response |
0.05-250Hz(±3bB) |
Time Constant |
>3.2Sec |
Maximum Electrode Potential |
±300mV DC |
Dynamic Range |
±15mV |
Defibrillation Project |
Build-in |
The main features of the iPad ECG Machine iCV200S:
1,Simultaneous 12-lead ECG
2,Automatic Measurements and Interpretations
3,Measurements with fingers
4,ecgCloud and ECG network
5,Indicator light for lead Shedding
6,Recorder connect:Bluetooth 4.0
7,Recorder Power:2*AAA batteries
The advantage of device:
1.The first professional electro cardio gram (ECG) product developed on iOS portable device.
2.High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
3.Automatic measurements and interpretations.
4.Bluetooth compatible
