CE Certified Stress Test Ecg 1000Hz Sampling 12 Lead ECG Stress Test System

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  CE Certified Stress Test Ecg 1000Hz Sampling 12 Lead ECG Stress Test System Get Best Price

Product Details:
Place of Origin: Beijing,China
Brand Name: V&H
Certification: CE,ISO13485,FREE SALES,CQ and CO so on
Model Number: CV1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD
Packaging Details: Carton
Delivery Time: within 3-5 working days affter payment arrival
Payment Terms: T/T, Western Union,Credit Card
Supply Ability: 50 sets per week
Detailed Product Description
Color: Grey And White Sampling: 1000Hz
Channels: 12 Sensitivity: 5/10/20mm/mV
Frequency Response: 0.05-250Hz(±3dB) Common Mode Rejection: >60dB
Input Impedance: >5MΩ Isolate Voltage: 4000V
High Light:

stress ecg machine

,

exercise ecg machine

Stress Test Ecg Gery Color BOX 12 Lead ECG Stress Test System CE Certified for Sale

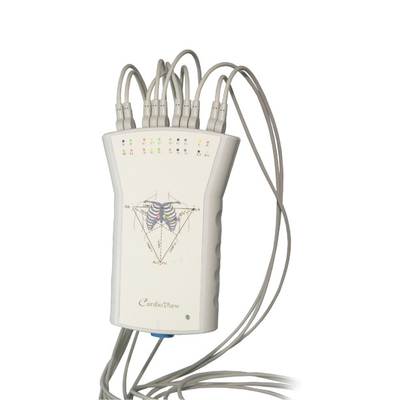

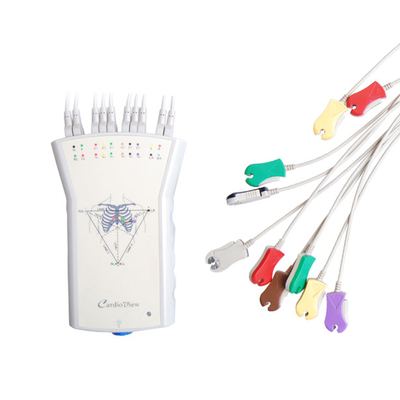

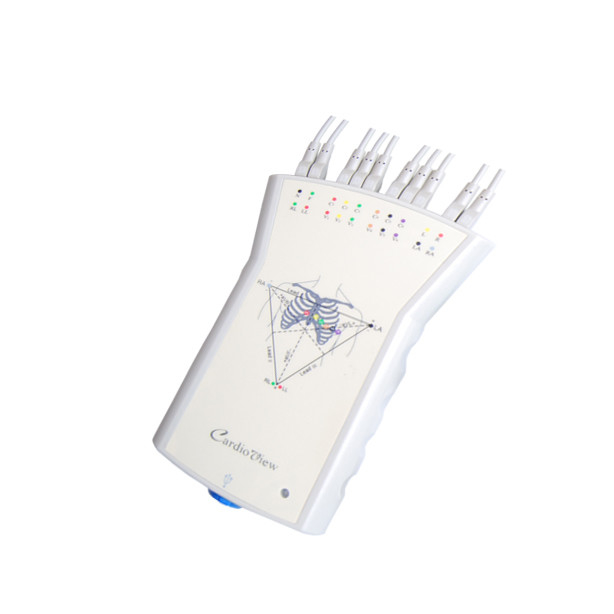

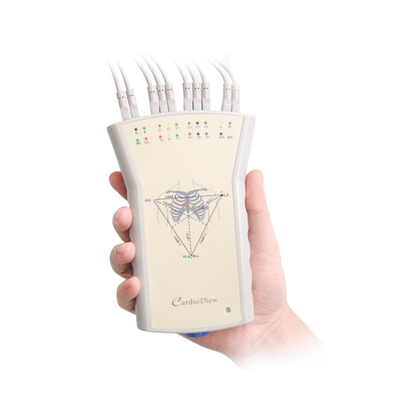

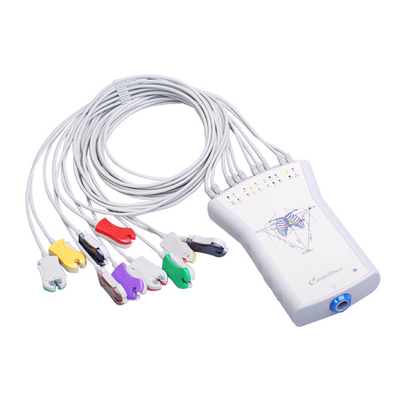

Introduce the stress ecg device CV1200



The Stress ECG Analysis System is consist of sampling hardware device, special software system and exercise equipment. Its functions include 12 leads ECG synchronously sampling, and data storage, ST segment analysis, ECG review in dynamic/static/superimposed during the whole exercise process, and trend chart analysis of multiple parameters, multiple printable report, etc. The patient's exercise state can be recorded timely and accurately, which reflects patient’s heart function, providing reliable data for doctors in diagnoses.



CE Certified Stress Test Ecg 1000Hz Sampling 12 Lead ECG Stress Test System

The features of stress ecg device software:

1.12 leads ECG cable for data collection and analysis simultaneously. QRS waveform can be distinguished by high precision. The cardiograph during
sampling can be printedout on-line .
2.Record and savewhole course cardiograph data simultaneously.
3.The change of ST segment can be observed in the course of collection. The lead,which the operator choses can be magnified, and the ST segment data can be
calculated automatically .
4.Advanced original creation of screen waveform antijamming technology is adopted, which makes the screen waveform much more precise, the details of
cardiograph much more extrude.
5. Anti-jamming technology is adopted to ensure the stabilization of the baseline,reducing effect on cardiograph from myoelectric jamming, baseline excursion,
and industry electric wave jamming.
6.The machine can adopt both standard exercise scheme and user-defined exercise scheme, and set instantaneous printing and blood pressure
measurement tip.
7.Operator can mark events during exercising, the marked event cardiograph waveform can be compared with current waveform, the event can be observed,
edited and printed.
8.Be provided with several types of displaying and printing trend graph. Mainly includes: HR, BP, METS, HR*BP, exercise trend, ST segment
level/influence/slope/3D/J level and ST/HR, etc. The provided types of trend graph include: line graph, column graph, trapezia graph and grid graph etc.
9.The function of dynamic retrospect after exercising which can replay the whole  exercise testing process is provided. During the course of replay, the speed can
be adjusted, such as speedup, slowdown, pause and skip.
10.With static review function, user can look up ECG waveform of any time, and modify the attribute of QRS complex.
11.Powerful case management function is provided, including advanced search of archives , modify case info, delete archives, update archives etc.
12.The function of "Import/Export Case" Is privided. The exported cases are compressed, which exhaust less disk space. The compressed cases areassociated with the operation system file type.This design makes the import operation much more simple and quickly.
13.The function of "System Settings" includes several setting items. For example, switching Chinese/English language, format and mode of displaying waveform
, the color of background grid and print setting, filter setting, and display optional parameters , etc.
14.The system has friendly interface, multiple info can be preseted according to users’ operating habit, including:IME, tooltips, and doctors’ information. Latest
setting will be memorized and autosaved as "Operator’s Favorite Settings". Then the settings can be recovered as start up next time.
15.Several useful tools are provided, which are used for equipments management,cases history information management and some other operations.





CE Certified Stress Test Ecg 1000Hz Sampling 12 Lead ECG Stress Test System

CE Certified Stress Test Ecg 1000Hz Sampling 12 Lead ECG Stress Test System

CE Certified Stress Test Ecg 1000Hz Sampling 12 Lead ECG Stress Test System

The performance of stress ecg device:



Sampling Rate: A/D: 24K SPS / Ch
Recording: 1K SPS/Ch
Patented Multi-Channel Synchronous A/D
Quantization Precision: A/D: 24 Bits
Recording: 16 Bits
Resolution: 0.4µ V
Common Mode Rejection: >100dB
Input Impedence: >20MΩ
Frequency Response: 0.05-250Hz(±3dB)
Time Constant: ≥3.2Sec.

CE Certified Stress Test Ecg 1000Hz Sampling 12 Lead ECG Stress Test System
