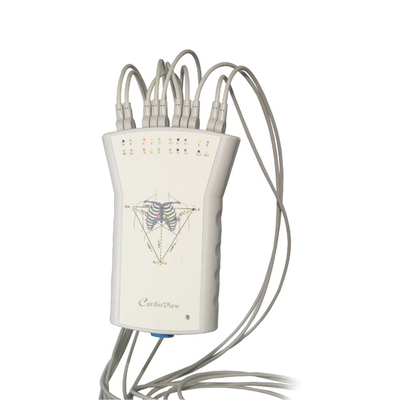

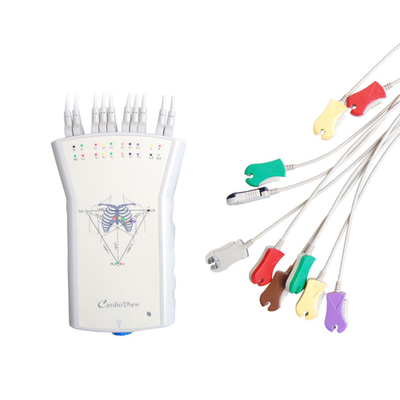

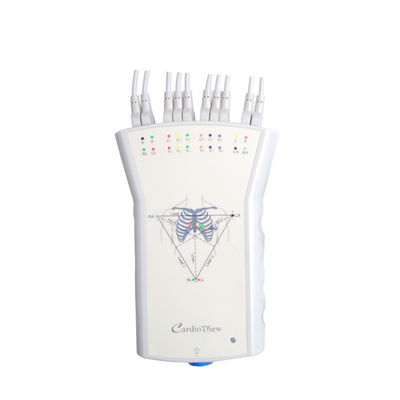

PC Compatible Stress Test Ecg Grey USB Cable Connection With Real Time ECG Diagnosis

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  PC Compatible Stress Test Ecg Grey USB Cable Connection With Real Time ECG Diagnosis Get Best Price

Product Details:
Place of Origin: Beijing,China
Brand Name: V&H
Certification: CE,ISO13485,FREE SALES,CQ and CO so on
Model Number: CV1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD
Packaging Details: Carton
Delivery Time: within 3-5 working days affter payment arrival
Payment Terms: T/T, Western Union,Credit Card
Supply Ability: 50 sets per week
Detailed Product Description
Color: Grey And White Sampling: 1000Hz
Channels: 12 Sensitivity: 5/10/20mm/mV
Frequency Response: 0.05-250Hz(±3dB) Common Mode Rejection: >60dB
Input Impedance: >5MΩ Isolate Voltage: 4000V
High Light:

stress ecg machine

,

exercise ecg machine

Stress Test Ecg Gery Color BOX and USB cable connection PC Compatible With Real Time ECG Diagnosis



Introduce the stress ecg device CV1200



The Stress ECG Analysis System is consist of sampling hardware device, special software system and exercise equipment. Its functions include 12 leads ECG synchronously sampling, and data storage, ST segment analysis, ECG review in dynamic/static/superimposed during the whole exercise process, and trend chart analysis of multiple parameters, multiple printable report, etc. The patient's exercise state can be recorded timely and accurately, which reflects patient’s heart function, providing reliable data for doctors in diagnoses.



PC Compatible Stress Test Ecg Grey USB Cable Connection With Real Time ECG Diagnosis

The features of stress ecg device in our company:

1. Print ECG waveform in real-time during sampling process, record and save ECG data of whole process.
2. Observation of the changes of ST segment in real-time, enlargement display of user selected lead, automatic calculation of ST related data.
3. Adopt anti-interference technology to ensure the stabilization of baseline, reduce the effect on ECG waveform from EMG interference, baseline drift and AC interference.
4. Available for both standard and user-defined exercise scheme, automatic instantaneous notice of print and BP measure can be set according to exercise phrase.
5. Operator can mark events during exercise, the ECG waveform of marked event can be compared with current waveform. The event can be observed, edited and printed after excise.
6. Display and print of all kinds of trend chart. Mainly including: HR, BP, METS, HR*BP, exercise trend, ST segment level/influence/slope/3D/J level and ST/HR, etc.
7. Dynamic/static review function after exercise, representation of the whole exercise testing process.
8. Case Import/Export function. Compress the case for storage, which takes up less disk space. The compressed case shall be associated with the file type in operation system. This will make the import operation much more simple and quick.
9. System setting function includes multiple setting items. For example, switching Chinese/English language, format and mode of displaying waveform (12 leads * 1column / 6leads * 1column / 6leads * 2columns / 3leads * 2columns / 3 leads * 1column, etc), color of background, print related setting, filter setting and displaying of optional parameters, etc.
10. Provide multiple functional tools, which are used for device management, cases statistics and other operations.
11. Wireless mode of ECG data sampling, improves the anti-interference capability.
12. Supportive for variety types of exercise equipment





PC Compatible Stress Test Ecg Grey USB Cable Connection With Real Time ECG Diagnosis

The performance of stress ecg device:



Sampling Rate: A/D: 24K SPS / Ch
Recording: 1K SPS/Ch
Patented Multi-Channel Synchronous A/D
Quantization Precision: A/D: 24 Bits
Recording: 16 Bits
Resolution: 0.4µ V
Common Mode Rejection: >100dB
Input Impedence: >20MΩ
Frequency Response: 0.05-250Hz(±3dB)
Time Constant: ≥3.2Sec.

Our service we can promise to you:



1,pre-sales service

-inquiry and consultation support

-demo testing support

-sample order support



2,after-sales service

-technology support on line

-Notice at first time for software updating

-maintenance or replacement of device support

PC Compatible Stress Test Ecg Grey USB Cable Connection With Real Time ECG Diagnosis
