Resting Hand Held ECG Machine Vales Hills Model CV200 With Grey Small Box

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Resting Hand Held ECG Machine Vales Hills Model CV200 With Grey Small Box Get Best Price

Product Details:
Place of Origin: Beijing,China
Brand Name: V&H
Certification: CE,ISO13485,FREE SALES,CQ and CO so on
Model Number: CV200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD
Packaging Details: Carton
Delivery Time: Within 3-5 working days after payment arrival
Payment Terms: T/T, Western Union,Credit Card
Supply Ability: 50 Piece per week
Detailed Product Description
Color: Grey And White Conenction Way: USB Cable
Type: Resting ECG Cable: Simultaneous 12-lead
Function: Automatically Monitor And Analysis ECG
High Light:

ecg monitoring device

,

pocket ecg machine

Hand Held ECG Machine Supplier Vales&Hills Model CV200 With Grey Small Box



How to know Vales&Hills Handheld ECG device CV200:

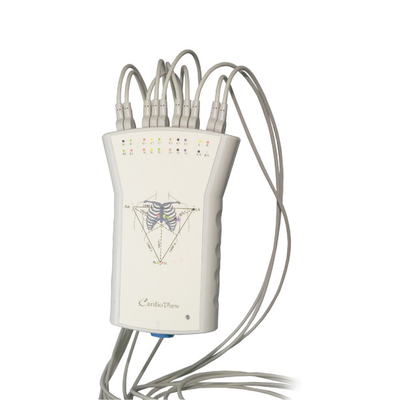

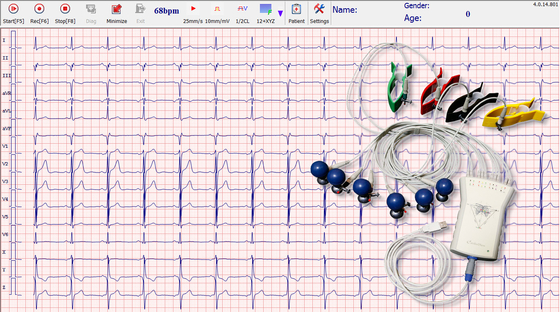

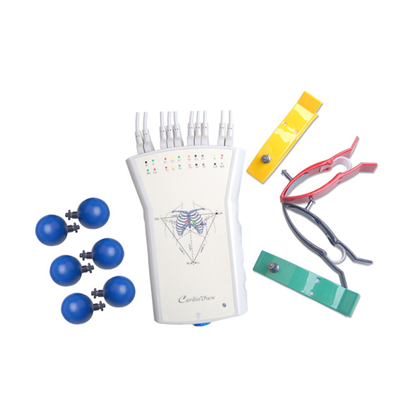

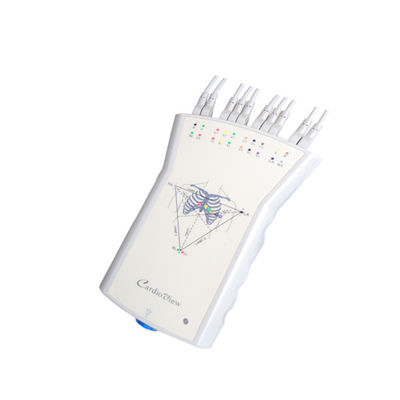

CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.

Resting Hand Held ECG Machine Vales Hills Model CV200 With Grey Small Box

Why to choose our device and to be long-term cooepration?

--Company Cultural:People Oriented,Quality Based,Innovation Initiatived

--25-year experience in the ECG device field.

--Own R&D team an design team to make the markrt shares and benefit of customers.

--Individual QC team to ensure 100% good quality before delivery

--Flexible production policy to meet customers' customized demand and provide the excellent service.

Resting Hand Held ECG Machine Vales Hills Model CV200 With Grey Small Box

ECG Recorder Specifications:

VH- CV200-ECG work station specification

Sampling 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording
Digital Resolution 2µV
Frequency Response 0.05-250Hz(+3dB)
Common Mode Rejection >90dB
Input Impedance >10 M
Time Constant 3.2 Sec
Maximum Electrode Potential +300mV DC
Dynamic Range +10mV
Isolate Voltage 4000V
Current Leek <10µA
Patient Cable Standard 10-wire,15-Pin D Connector
PC Interface USB Connector
Dimensions 14912226 mm(5.94.81.0 in.)



Resting Hand Held ECG Machine Vales Hills Model CV200 With Grey Small Box



The delivery methods of cargoes in our company :

Resting Hand Held ECG Machine Vales Hills Model CV200 With Grey Small Box

The certificates to support the device CV200:

Resting Hand Held ECG Machine Vales Hills Model CV200 With Grey Small Box

The service we can promise to you:

1,pre-sales service

-inquiry and consultation support

-demo testing support

-sample order support



2,after-sales service

-technology support on line

-Notice at first time for software updating

-maintenance or replacement of device support



FAQ:

Q:Can the device make auto measurement?

A:The device is simultaneous 12-lead ecg with automatic measurements and interpretations.



Q:How to connect to the device to see ECGs?

A:The transfer way is by USB cable.



Q:How many certificates can be provided to support the demand of distributors?

A:CE,ISO13485,FREE SALES,CQ and CO etc.,will depend on the demand of our distributors.





Q:How long for the gurantee of the device?



A:12-month guarantee for the acquisition box of device.
