Product Details:
Payment & Shipping Terms:
|
COLOR: | GREY-WHITE | MATERIAL: | PLASTIC |
---|---|---|---|
INSTRUMENT CLASSIFICATION: | CLASS II | TYPE: | STRESS ECG |
CONNECTION WAY: | USB CABLE | SUITABLE OPERATION SYSTEM: | WIN XP,7,8,10 |
CABLE: | SIMULTANEOUS 12-LEAD | FUNCTION: | AUTOMATICALLY MONITOR AND ANALYSES |
High Light: | stress test system,exercise ecg machine |
How to know ECG Stress Test ?

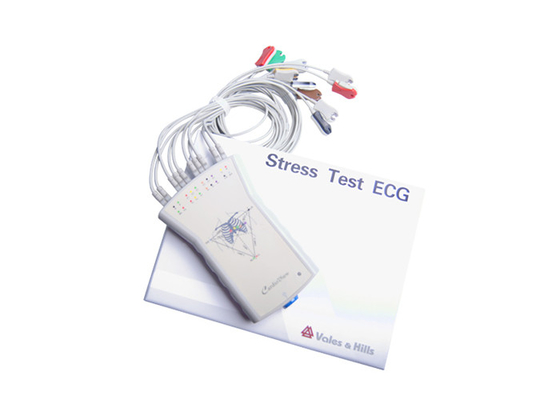

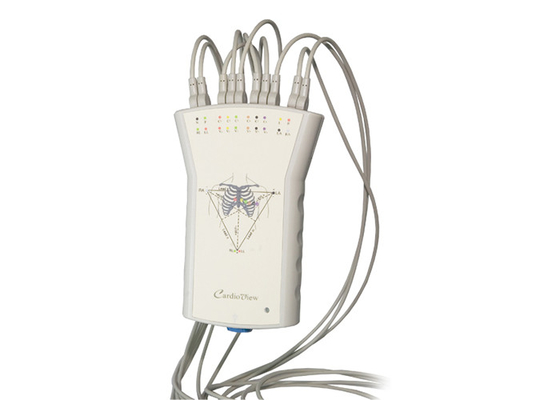

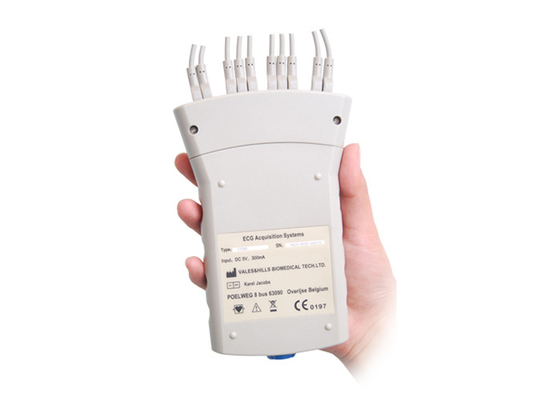

The model of the device is CV1200,and as a multi-function ECG Workstation, the CV1200 ECG Acquisition Systems increase the stress test function, it will give you a totally new feeling, which will help you work swiftly, diagnose accurately and get to a new high level of your career. The ECG Acquisition Systems can work smoothly interfacing with treadmill and ergometer.
About the features of CV1200:
* 12 lead ST segment measurement point can be set and changed according to HR by user during data sampling
* Real time analyze HR,ST segment and their trends, real time display and print 12 leads simultaneous ECG
*Protocols can be edited flexibly to work with different manufacturers’ treadmills
* Recorded ECG data can be replayed, so it is very convenient for doctors to view the ECG changes
* Offer detailed data for all stages
* Offer average ECG waves for 12 leads and all stages, help doctor to see the changes among different stages

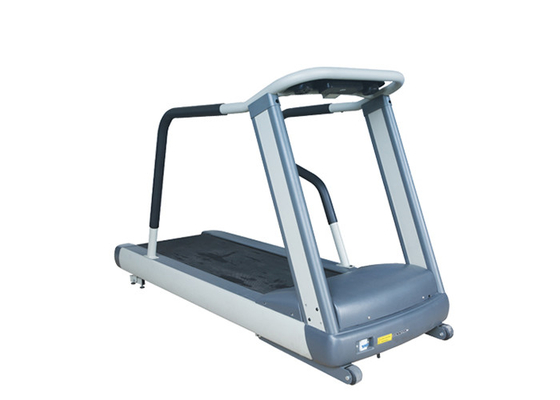

*Treadmill starts from zero speed to ensure safety of patient
* Auto control of the speed and incline of the treadmill
*Test heart rate dynamically and Give alarm signal automatically
*Can save large quantity of patient data which can be reviewed, frozen and analyzed by doctors at any time
*Unique anti-artifact protocols to ensure stable waves
* Real time print of many selectable formats, no special printing paper needed
* Capacity for processing and memorizing numerous data
The specificarion of CV1200 recorder:
CV-1200 Recorder Specification | ||
System
|
Monitor | 17"colour,high resolution |
Operator interface | Standard alphanumeric PC keyboard, and mouse | |
Power requirement | 110/230V,50/60Hz | |
Battery | emergency ECG capability with uninterrupted internal power supply for up to 3 minutes | |
Operating system | Microsoft Windows XP, Ergometer, Treadmill, NIBP | |
Printing | Chart paper | Thermo reactive, Z-fold,width,A4 |
Paper speed | 12.5/25/50mm/sec | |
Sensitivity | 5/10/20mm/mV | |
Print format | 6/12 channel printout, Automatic baseline adjustment |
|
Technical Date | Frequency Response |
0.05-70Hz(+3dB) |
Sampling rate | 1000Hz/ch | |
CMR | >90dB | |
Maximum Electrode Potential | +300mV DC | |
Isolation | 4000V | |
Current Leek | <10µA | |
Digital Resolution | 12 bits |
The option shipping delivery support to the stress ecg device CV1200:
The Certificates for the device:
Our service provide:
1,pre-sales service
-inquiry and consultation support
-demo testing support
-sample order support
2,after-sales service
-technology support on line
-Notice at first time for software updating
-maintenance or replacement of device support
Why to choose us?
-company Cultural:People Oriented,Quality Based,Innovation initiatived
-25-year experience in the ecg device field.
-Own R&D team and design team to make the market shares and benefit of customers.
-Individual QC team to ensure 100% good quality before delivery
-Flexible production policy to meet customers’ customized demand and provide the excellent
service
