Portable Handheld Ecg Machine 128mb Ram With Usb Connection To Computer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | White-Grey | Sampling: | 1000 S/S/Ch,16bits, Simultaneous 12 Lead |
|---|---|---|---|
| Frequency Response: | 0.05-250Hz(±3dB) | Common Mode Rejection: | >90dB |
| Input Impedance: | >10 M | Time Constant: | 3.2 Sec |
| Maximum Electrode Potential: | ±300mV DC | Dynamic Range: | ±12mV |
| Isolate Voltage: | 4000V | ||
| High Light: | ecg monitoring device,hand held ecg |
||
Handheld ECG Machine with Cheap and Portable White Grey Acquisition Box USB connection to Computer
What's the PC ecg device?

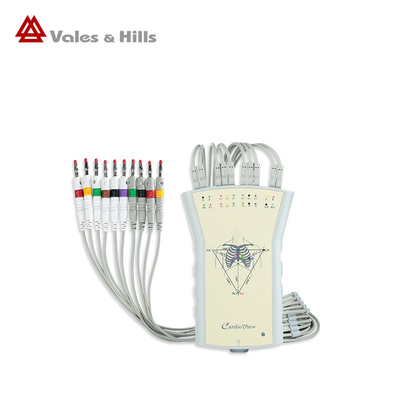

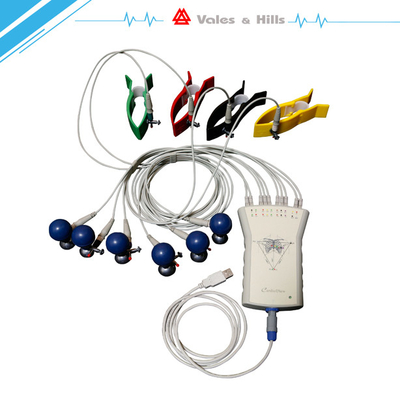

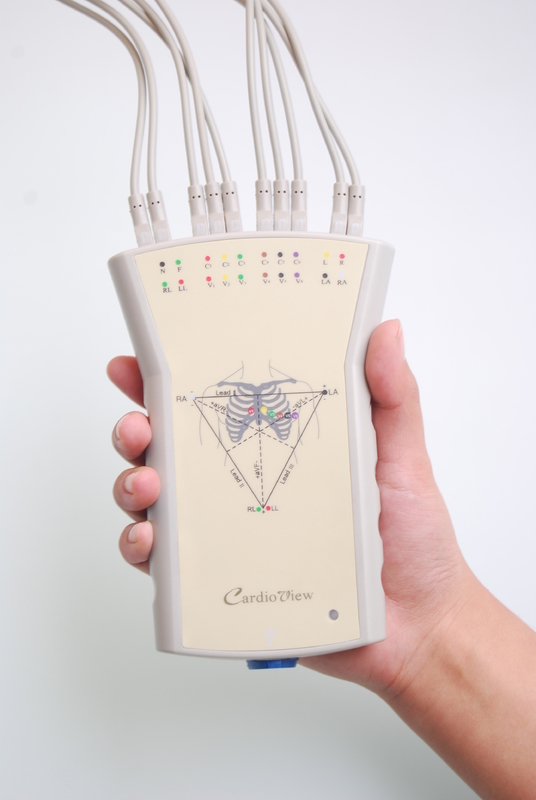

CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200+ guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.
ECG Recorder Specifications:
VH- CV200+-ECG work station specification |
|
Sampling |
1000 S/S/Ch,16bits, Simultaneously 12 Leads Recording |
Digital Resolution |
0.4µV |
Frequency Response |
0.05-250Hz(+3dB) |
Common Mode Rejection |
>90dB |
Input Impedance |
>10 M |
Time Constant |
3.2 Sec |
Maximum Electrode Potential |
+300mV DC |
Dynamic Range |
+12mV |
Isolate Voltage |
4000V |
Current Leak |
<10µA |
Patient Cable |
Standard 10-wire,15-Pin D Connector |
PC Interface |
USB Connector |
Dimensions |
14912226 mm(5.94.81.0 in.) |
The requirements to the applicable computer:
- Pentium III Processor
- 128MB RAM
- 20G HD
- Windows XP Operating System
- VGA Compatible Display
- Windows XP Compatible Laser or Inkjet Printer
