Diagnostic Ios Ipad 12 Lead Ecg System With Bluetooth Connection Device Icv200s

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Diagnostic Ios Ipad 12 Lead Ecg System With Bluetooth Connection Device Icv200s Get Best Price

Product Details:
Place of Origin: Beijing,China
Brand Name: Vales&Hills
Certification: CE,ISO13485,FREE SALES,CO and CQ so on
Model Number: iCV200S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD
Packaging Details: Carton
Delivery Time: within 3-5 working days after payment arrival
Payment Terms: T/T, Western Union,Credit Card
Supply Ability: 50 sets per week
Detailed Product Description
Color: White And Grey Transfer Way: Wireless
Communication: Bluetooth Type: Resting
Defibrillation Project: Built-in Properties: Diagnostic Instruments
Other: Icloud ECG Web
High Light:

iphone ecg monitor

,

bluetooth ecg device

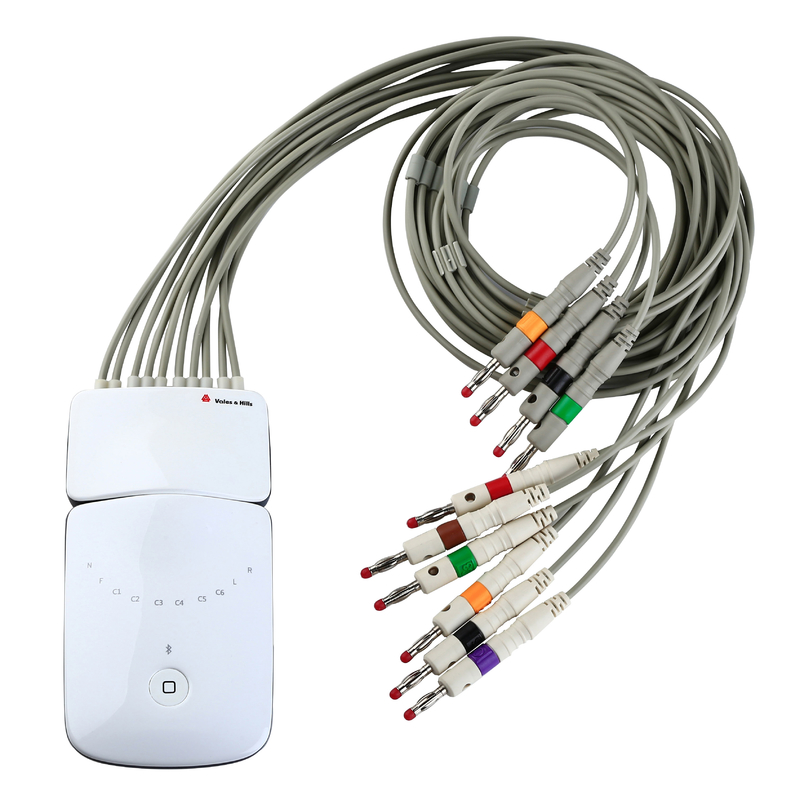

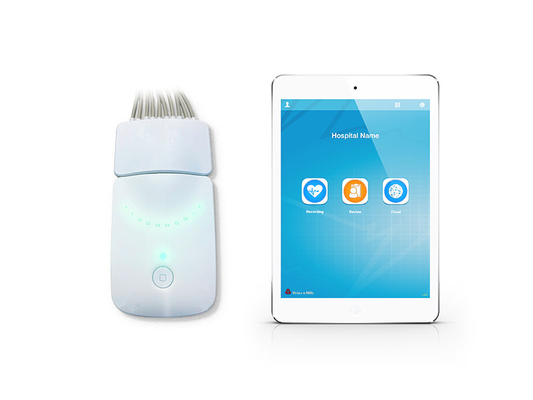

iPad ECG Macine The Latest Version and Design of iOS ECG With Bluetooth Connection Device iCV200S



The features of the iPad ECG Machine iCV200S:

1,Simultaneous 12-lead ECG

2,Automatic Measurements and Interpretations

3,Measurements with fingers

4,ecgCloud and ECG network

5,Indicator light for lead Shedding

6,Recorder connect:Bluetooth 4.0

7,Recorder Power:2*AAA batteries

Diagnostic Ios Ipad 12 Lead Ecg System With Bluetooth Connection Device Icv200s



The advantage of device:

1.The first professional electro cardio gram (ECG) product developed on iOS portable device.

2.High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.

3.Automatic measurements and interpretations.

4.Bluetooth compatible





ECG Recorder Specifications

Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Resolution

0.4uV

Common Mode Rejection

>110dB

Input Impedance

>20M

Frequency Response

0.05-250Hz(±3bB)

Time Constant

>3.2Sec

Maximum Electrode Potential

±300mV DC

Dynamic Range

±15mV

Defibrillation Project

Build-in



Diagnostic Ios Ipad 12 Lead Ecg System With Bluetooth Connection Device Icv200s





The Package of the device:

Diagnostic Ios Ipad 12 Lead Ecg System With Bluetooth Connection Device Icv200s



The method of delivery of cargoes in our company:

Diagnostic Ios Ipad 12 Lead Ecg System With Bluetooth Connection Device Icv200s
