Usb / Wireless Connection Handheld Ecg Machine 100% Safety For Patient
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | White And Grey | Connection: | USB/Wireless |
|---|---|---|---|
| Function: | ECG WORK STATION,Vector ECG | Channels: | 12-LEAD ECG |
| Sampling: | 1000 S/S/Ch,12 Bits, Simultanously 12-lead ECG | Atient Cable: | Standard 10-wire,15-Pin D Connector |
| Dimensions: | 14912226 Mm(5.94.81.0 In.) | ||
| High Light: | pocket ecg machine,hand held ecg |
||

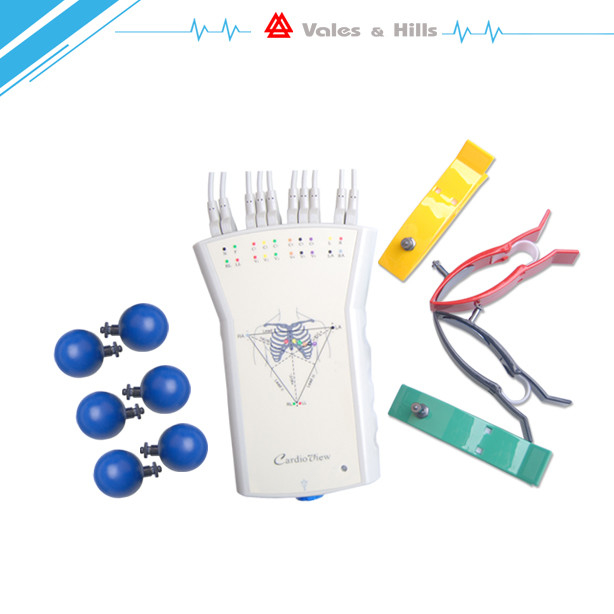

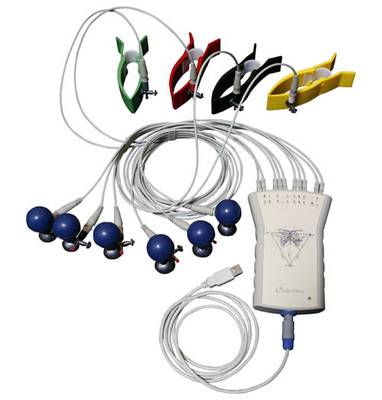

Handheld ECG Machine Factory For Portable ECG With White-Grey Acquisition box
What is the Cardio Vew PC ecg device?
CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data.
In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future.

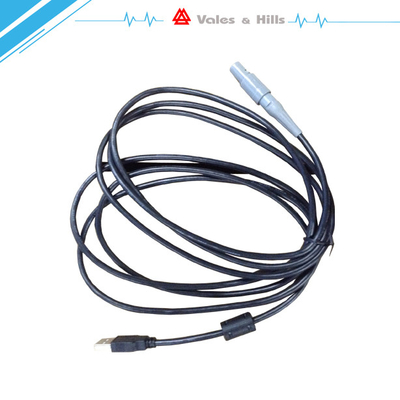

With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.

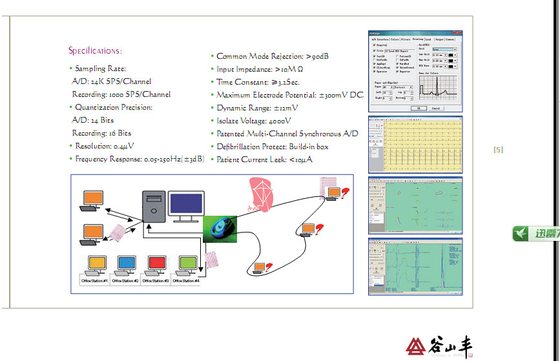

VH- CV200-ECG work station specification |
|
Sampling |
1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
Digital Resolution |
2µV |
Frequency Response |
0.05-250Hz(+3dB) |
Common Mode Rejection |
>90dB |
Input Impedance |
>10 M |
Time Constant |
3.2 Sec |
Maximum Electrode Potential |
+300mV DC |
Dynamic Range |
+10mV |
Isolate Voltage |
4000V |
Current Leek |
<10µA |
Patient Cable |
Standard 10-wire,15-Pin D Connector |
PC Interface |
USB Connector |
Dimensions |
14912226 mm(5.94.81.0 in.) |
