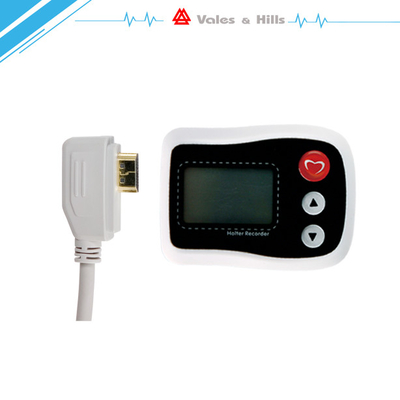

LED Screen Holter ECG System SD Card / USB Communication With Analysis Function

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  LED Screen Holter ECG System SD Card / USB Communication With Analysis Function Get Best Price

Product Details:
Place of Origin: Beijing , China (Mainland)
Brand Name: V&H
Certification: CE , ISO
Model Number: CV-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard Packing
Delivery Time: 7 working days after payment
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10 Units per week
Detailed Product Description
Product: 2017 New Design LED Screen Holter ECG System With Analysis Function Communication: SD Card Or USB

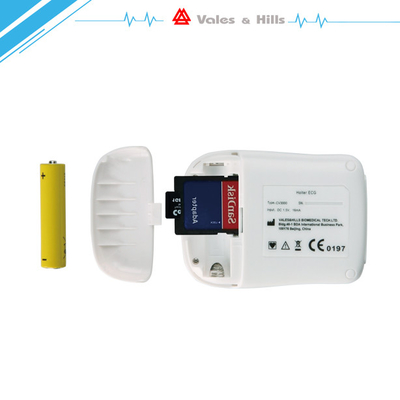

Record Time: 24 Hours Power Supply: One AAA Battery
Size: 75×55×16(mm) CMMR: >80dB
Automatic Duplex Operation: Support Input Impedance: >5MΩ
High Light:

holter ecg recorder

,

ecg electro cardio graph



2017 new design LED screen holter ECG system with analysis function



CV3000 is a remarkable advanced HOLTER system working for both 3-channel and 12-lead ECG recording and analysis. Thanks to its sophisticated software and elaborately designed recorder, CV3000 meets all high-end performance and fiscal responsibility.



Small in Size, Performance



The latest version of ELITE HOLTER recorder features the best possible experience to patients as well as Holter technicians.



Specifications





Channels: 10leads (12- channel) 5/7 leads(3-channel)
Resolution: 8-10 bits
Recording: Full disclosure

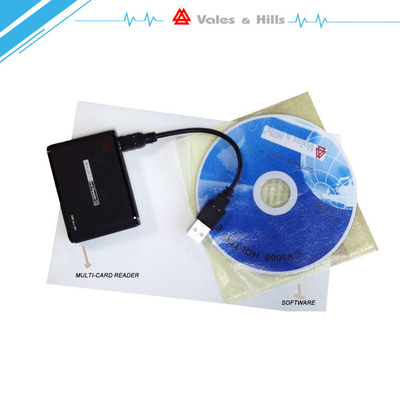

Download interface: SD card reader or USB line
Sample rate: 1024/Sec max
Frequency response: 0.05HZ to 60Hz

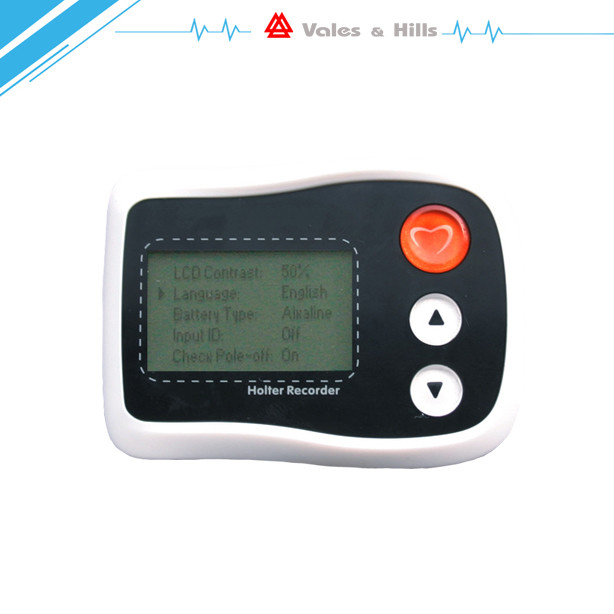

Signal verification: LCD display
Pacemaker Detection: support





Memory



Recording time: 24-72 hours



Type: SD



Capacity: 2GB







Physical



Dimensions: 72*53*16mm



Weight with battery: 62g



Enclosure: ABS plastic



Operating position: any orientation







Electrical



Gain settings: 0.5X, 1X and 2X



Connector: 19 pin



Patient cable: 10 leads or 5/7 leads



Our Services:



1. Warranty —— Offer 12 months free after-sale services for customers, and be responsible for life-repair.

2. Technical —— Offer professional engineers for customers on the technical support.

3. Freight —— Pay for freight when we ship the repair product.
