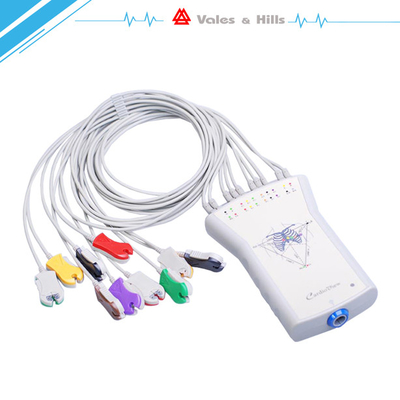

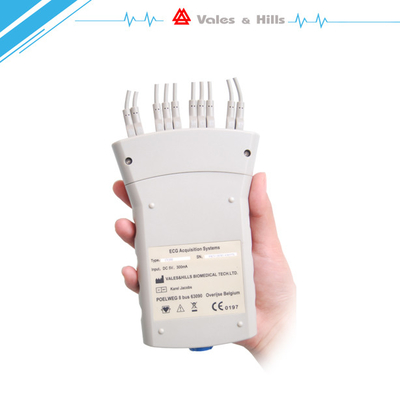

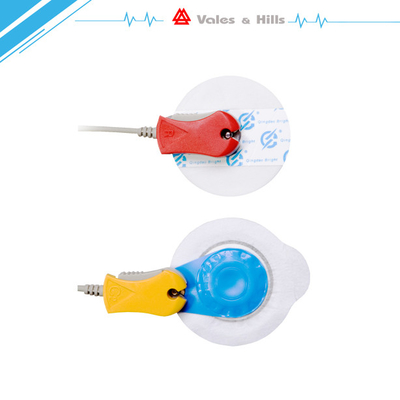

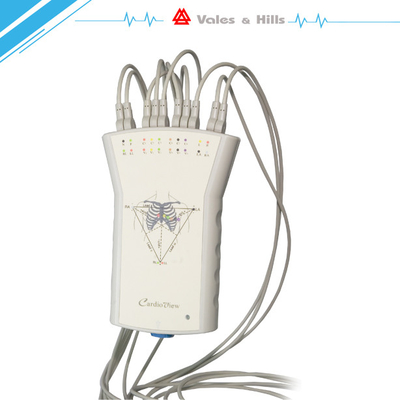

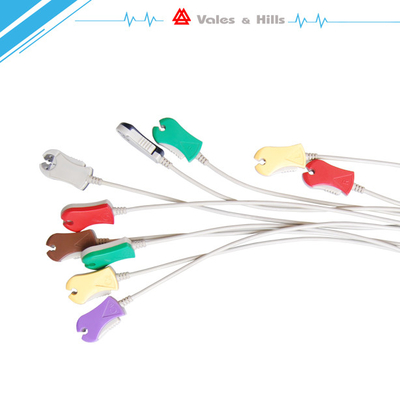

USB Cable AV Block ECG Accessories ECG Electrodes Sensor For Stress ECG Test

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  USB Cable AV Block ECG Accessories ECG Electrodes Sensor For Stress ECG Test Get Best Price

Product Details:
Place of Origin: Beijing,China(Mainland)
Brand Name: V & H
Certification: CE&ISO
Model Number: CV-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Standard Package:25cm*20cm*13cm
Delivery Time: 5-8 Work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50 Units Per Week
Detailed Product Description
Product: Av Block Ecg Accessories ECG Electrodescsensor Of Stress ECG Test Type: Stress Test
Function: Automatical Monitor And Analysis ECG Cable: Simultaneous 12-lead
Data Transmission: USB Cable Defibrillation Protect: Build-in
Resolution: 0.4uV Frequency Response: 0.05-250HZ
High Light:

Hospital ECG Machine


ecg monitoring device


av block ecg accessories ECG electrodescsensor of stress ECG test




Brand Name V&H
Model Number CV1200
Place of Origin Beijing, China (Mainland)
Color Hite black grey
Transfer way USB


1. Automatic ECG measurements and interpretation

2. CE & ISO approve

3. 12- channel ECG with ST measurement



Reflecting the latest development in stress system


V&H newly developed CV1200 is a high-performance cardiac stress system which incorporates the latest innovations with the easy of use workflow and intuitive icons and controls that you come to expect in CardioView series. Thanks to its elaborately designed ECG acquisition device and proprietary digital processing algorithms, CV1200 is specially featured in its super-stable and noise-free ECG tracings even at steep grades. The sophisticated software gives you a perfect solution for cardiology diagnosis as well as a fantastic user experience.



Why select CV1200——Advantages:


  • High resolution A/D: 24K SPS/Ch, 24 bits
  • VH patent technology: Digital synchronous A/D
  • VH patent technology: Myoelectric filter based on ECG spectrum
  • VH proprietary algorithm: Minimum delay baseline wander eraser
  • Different filters selectable : LP, HP and artifact filters
  • Skin-electrode impedance measurement
  • Preset classical protocols and unlimited user defined protocols
  • Arrhythmia detect and live review
  • Various trends: tracking and compare
  • Soft anti-aliased ECG display
  • ECG, BP, SO2, METS, max VO2, Distance and Time synchronous display
  • Rehabilitation mode: Cardiac function recovery protocols
  • Independent testing for different treadmills and ergometers




CV-1200 Specification





Monitor 17" colour,high resolution
Operator interface Standard alphanumeric PC keyboard, and mouse
Power requirement 110/230V,50/60Hz
Battery emergency ECG capability with uninterrupted internal power supply for up to 3 minutes
Operating system Microsoft Windows XP, Ergometer, Treadmill, NIBP
Printing Chart paper Thermo reactive, Z-fold,width,A4
Paper speed 12.5/25/50mm/sec
Sensitivity 5/10/20mm/mV
Print format 6/12 channel printout,
Automatic baseline adjustment
Technical Date Frequency Response



Sampling rate 1000Hz/ch
CMR >90dB
Maximum Electrode Potential +300mV DC
Isolation 4000V
Current Leek <10µA
Digital Resolution 12 bits
Input range +10 mV
Software optional Automatic ECG measurements and interpretation,
Vector Cardiograph
Ventricular Late Potentials, QT Dispersion
Environment Condition Temperature operating 10 to 40
Temperature storage -10 to 50
Pressure operating 860hPa to 1060hPa
USB Cable AV Block ECG Accessories ECG Electrodes Sensor For Stress ECG Test
