Home ProductsWireless ECG Machine

Simultaneous 12 Lead Bluetooth Wireless Ecg Monitor Portable Resting Type

I'm Online Chat Now
Certification
Good quality Handheld ECG Machine for sales
Good quality Handheld ECG Machine for sales
Good quality and good service

—— Dr.Alam from Egypt

Perfect product,small and smart!

—— Mr.Yann from France

Simultaneous 12 Lead Bluetooth Wireless Ecg Monitor Portable Resting Type

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Simultaneous 12 Lead Bluetooth Wireless Ecg Monitor Portable Resting Type Get Best Price

Product Details:
Place of Origin: China(Mainland)
Brand Name: V&H
Certification: CE & ISO
Model Number: iCV200BLE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set/sets
Packaging Details: standard package
Delivery Time: 7 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per week
Detailed Product Description
Product: Latest Digital Wireless Resting ECG Machine Based IOS System Type: Resting
Transfer Way: Bluetooth Model No.: ICV200
Recording: 16Bits Power: 2*AA Batteries
High Light:

portable ecg monitor

,

wifi ecg



Simultaneous 12 Lead Bluetooth Wireless Ecg Monitor Portable Resting Type



iCV200-BLE ecg 12 channel device

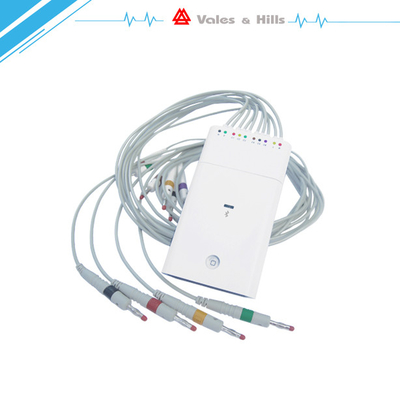

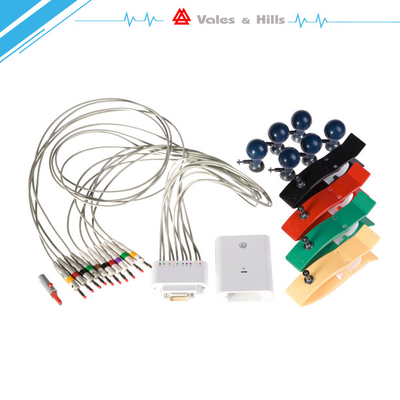

iCV200BLE is a portable ECG system with CardioView family. It includes a data acquisition recorder and iPad/iPad-mini with vhECG Pro APP. The system is designed and manufacturerd by V&H for patient ECG recording with automatic measurements and interpretations.





Advantages:

  1. The first professional elsctrocardiogram (ECG) product developed on android portable device.
  2. High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
  3. Automatic measurements and interpretations.
  4. Bluetooth communication



ECG Recorder Specifications



Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Common Mode Rejection >110dB
Resolution 0.4uV
Input Impedance >20M
Frequency Response 0.05-250Hz(±3bB)
Time Constant >3.2Sec
Maximum Electrode Potential ±300mV DC
Dynamic Range ±15mV
Power 2xAA Batteries
Communication WIFI(ipad,iphone)Blue Tooth(Android)
Defibrillation Project  Build-in





Simultaneous 12 Lead Bluetooth Wireless Ecg Monitor Portable Resting Type
