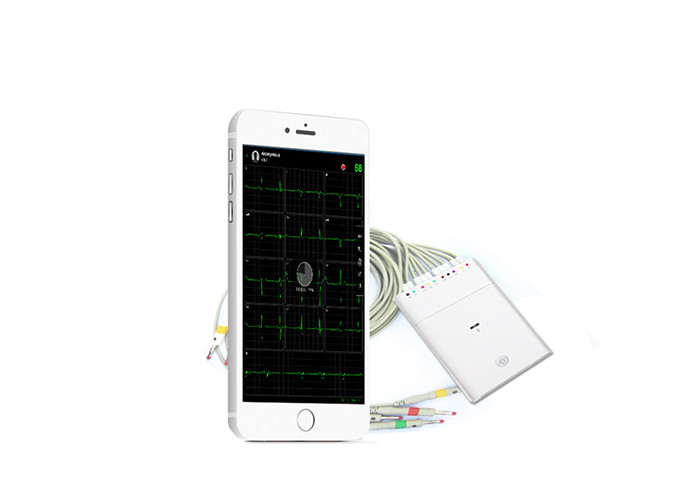

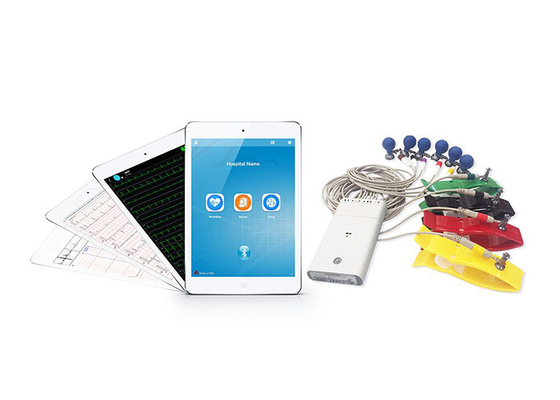

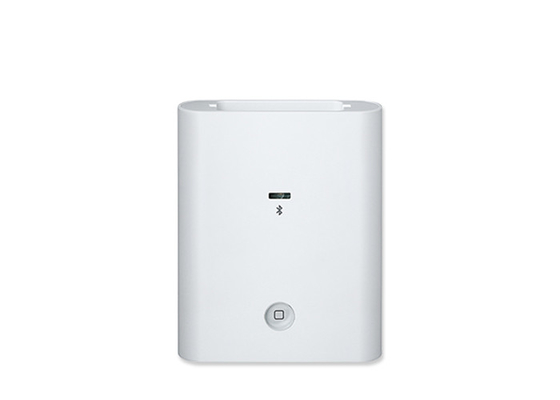

Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval Get Best Price

Product Details:
Place of Origin: China(Mainland)
Brand Name: V&H
Certification: CE & ISO
Model Number: iCV-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set/sets
Packaging Details: standard package
Delivery Time: 7 days after payment
Payment Terms: T/T, Western Union,
Supply Ability: 50 sets per week
Detailed Product Description
Product: Hot-Selling Mini Wireless Resting ECG Machine For IOS With CE Type: Resting
Transfer Way: Bluetooth Model No.: ICV200
Color: White Channels: 12
High Light:

portable ecg monitor

,

wifi ecg



Hot-Selling mini wireless Resting ECG machine for iOS with CE



iCV200 ecg 12 channel device



CARDIO VIEW iCV200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,iCV200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.



Advantages:

  • The first professional elsctrocardiogram (ECG) product developed on android portable device.
  • High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
  • Automatic measurements and interpretations.
  • Bluetooth communication



ECG Recorder Specifications



Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Common Mode Rejection: >110dB
Resolution: 0.4uV
Input Impedance: >20M
Frequency Response: 0.05-250Hz(±3bB)
Time Constant: >3.2Sec
Maximum Electrode Potential: ±300mV DC
Dynamic Range: ±15mV
Communication : WIFI(ipad,iphone)Blue Tooth(Android)
Power: 2xAA Batteries
Defibrillation Project:  Build-in





Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval
