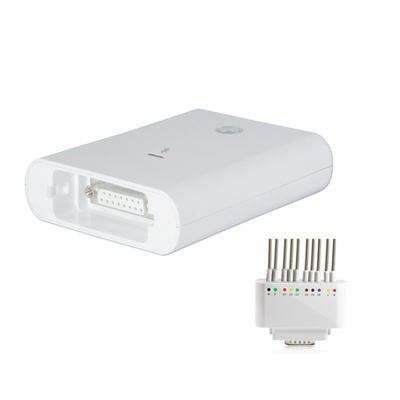

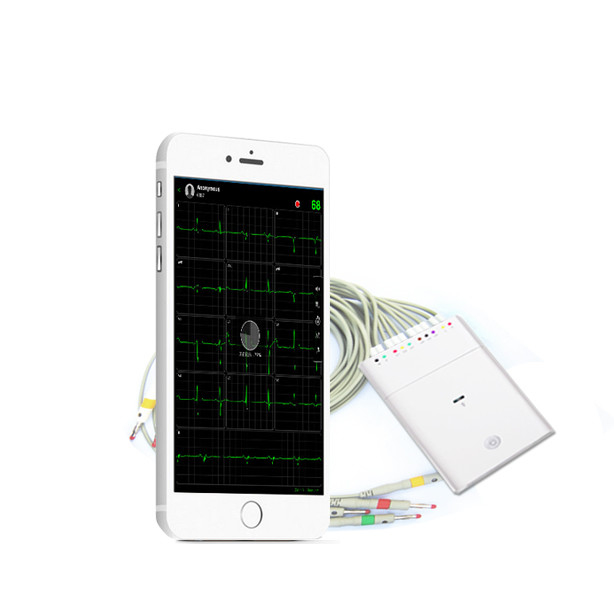

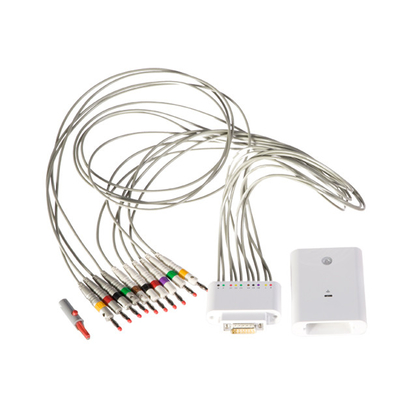

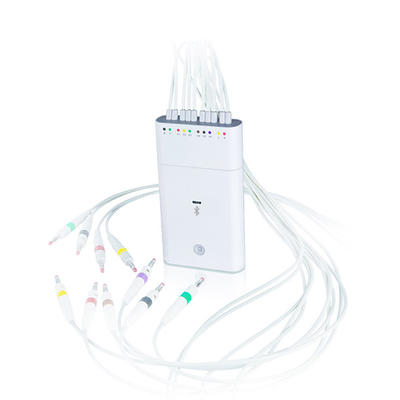

Resting 12 Channel Wireless ECG Machine Handheld Used for iPad

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Resting 12 Channel Wireless ECG Machine Handheld Used for iPad Get Best Price

Product Details:
Place of Origin: China(Mainland)
Brand Name: V&H
Certification: CE & ISO
Model Number: iCV-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set/sets
Packaging Details: standard package
Delivery Time: 5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per week
Detailed Product Description
Product: Resting 12-Channel Wireless Handheld ECG Machine For IPad Color: White
Type: Resting Transfer Way: Bluetoth
Model No.: ICV200
High Light:

medical ecg machine

,

wifi ecg



Resting Wireless Handheld ECG Machine with CE



iCV200 ecg 12 channel device



CARDIO VIEW iCV200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,iCV200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.



Advantages:

  1. The first professional elsctrocardiogram (ECG) product developed on android portable device.
  2. High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
  3. Automatic measurements and interpretations.
  4. WiFi and 3G compatibly



ECG Recorder Specifications



Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Resolution 0.4uV
Common Mode Rejection >110dB
Input Impedance >20M
Frequency Response 0.05-250Hz(±3bB)
Time Constant >3.2Sec
Maximum Electrode Potential ±300mV DC
Dynamic Range ±15mV
Defibrillation Project Build-in
Communication WIFI(ipad,iphone)Blue Tooth(Android)
Power 2xAA Batteries
