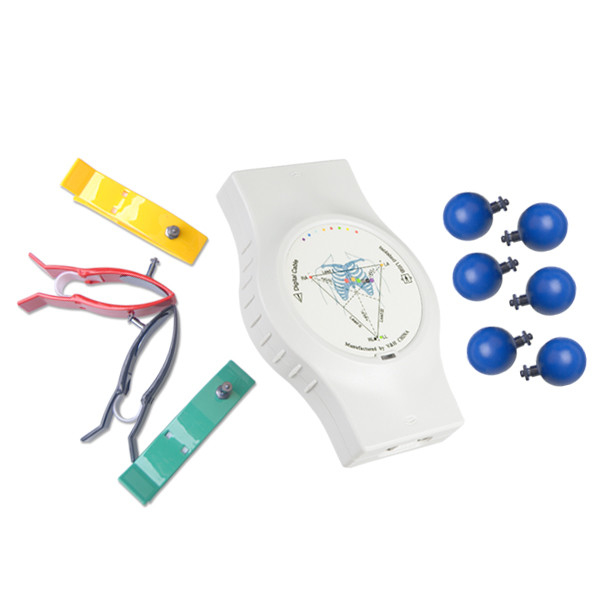

Frist - class Quality Portable PC Based Ecg / PC ECG Machine

Large Image : Frist - class Quality Portable PC Based Ecg / PC ECG Machine Get Best Price

Product Details:

Place of Origin:	Beijing,China
Brand Name:	V&H
Certification:	CE,ISO13485,FREE SALES,CO,CQ so on
Model Number:	CV200+

Payment & Shipping Terms:

Minimum Order Quantity:	1 units
Price:	USD
Packaging Details:	carton package Size:27cm23cm15cm
Delivery Time:	within 3 days after payment arrival
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	50 units per 15 days

Contact Now

Detailed Product Description

Type:	Blood Testing Equipments	Product Name:	Frist-class Quality Portable PC Based Ecg With Excellent Ecg Machine Price
Color:	Gray White	Material:	Plastic
Usage:	12-lead Automatic Interpretation And Diagnostic	Connection Way:	USB Cable
Sampling Rate:	AD:24K SPS/CH
High Light:	digital eeg machine , computer ecg

Frist-class Quality Portable PC Based Ecg with Excellent Ecg Machine Price

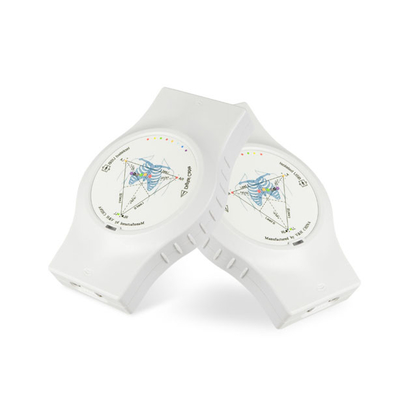

CV200+ Portable pc based ecg device

CARDIO VIEW CV-200+ is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).

The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers.

ECG Recorder Specifications:

VH- CV200+-ECG work station specification
Sampling	1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording
Digital Resolution	2µV
Frequency Response	0.05-250Hz(+3dB)
Common Mode Rejection	>90dB
Input Impedance	>10 M
Time Constant	3.2 Sec
Maximum Electrode Potential	+300mV DC
Dynamic Range	+10mV
Isolate Voltage	4000V
Current Leek	<10µA
Patient Cable	Standard 10-wire,15-Pin D Connector
PC Interface	USB Connector
Dimensions	14912226 mm(5.94.81.0 in.)

By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200+ guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.
