Medical Pc Ecg Machine With USB Cable , Electrocardiograph For Vector ECG

I'm Online Chat Now
Certification
Good quality Handheld ECG Machine for sales
Good quality Handheld ECG Machine for sales
Good quality and good service

—— Dr.Alam from Egypt

Perfect product,small and smart!

—— Mr.Yann from France

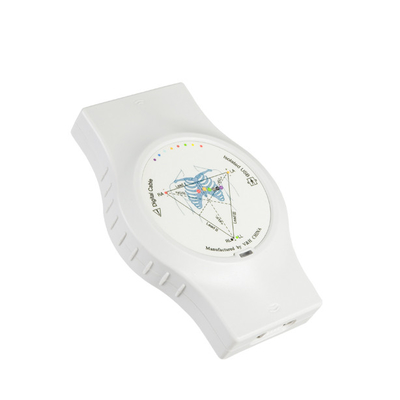

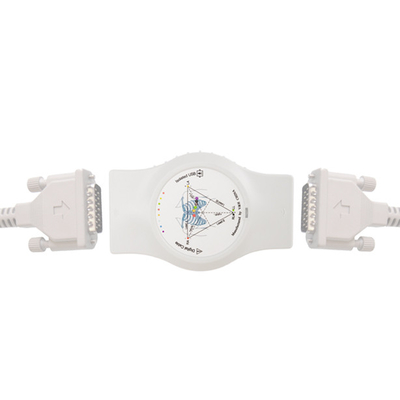

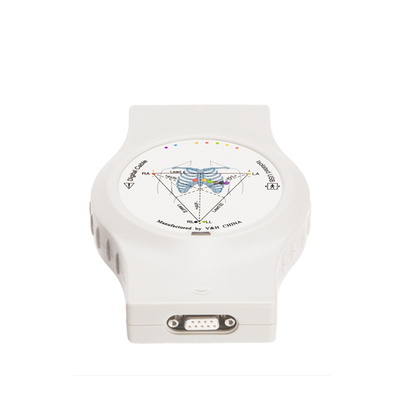

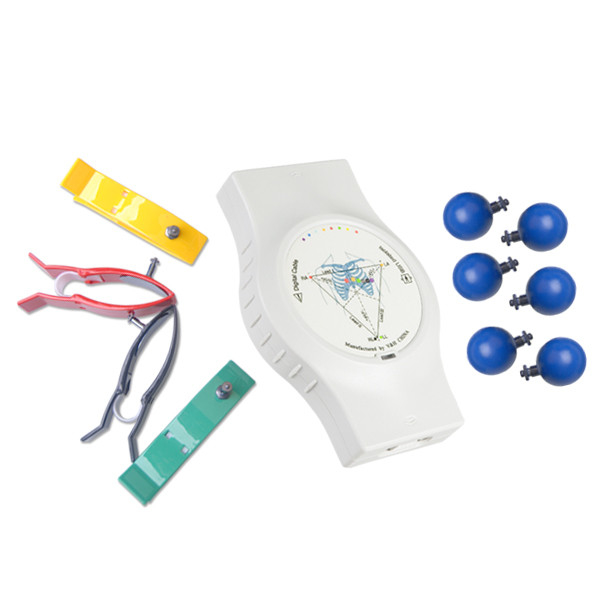

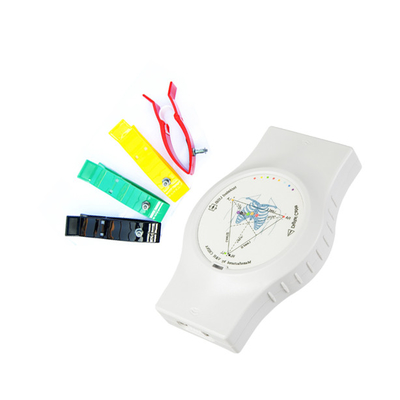

Medical Pc Ecg Machine With USB Cable , Electrocardiograph For Vector ECG

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Medical Pc Ecg Machine With USB Cable , Electrocardiograph For Vector ECG Get Best Price

Product Details:
Place of Origin: Beijing, China (Mainland)
Brand Name: V&H
Certification: CE ,ISO13485,FS so on
Model Number: CV200+
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: standard package
Delivery Time: 15 days after payment
Payment Terms: T/T,Paypal,, Western Union,and credit card on line
Supply Ability: 50 Box/Boxes / Week
Detailed Product Description
Color: Light Grey Sampling: 1000 S/S/Ch,12 Bits, Simultaneously 12 Leads Recording
Frequency Response: 0.05-250Hz(+3dB) Common Mode Rejection: >90dB
Input Impedance: >10 M Time Constant: 3.2 Sec
Maximum Electrode Potential: +300mV DC Dynamic Range: +10mV
Isolate Voltage: 4000V
High Light:

pc ecg machine

,

computer ecg



Medical PC Based ECG Equipment With USB Cable , Electrocardiograph For Vector ECG





Quick Detail



Name

Resting pc digital ECG

Function

ECG work station ,Vector ECG

Type

Resting

Channels

12- LEAD ECG

Connection

USB

certification

CE ISO





Description



Brand Name

V&H

Model Number

CV200

Place of Origin

Beijing, China (Mainland)

Color

Grey

Transfer way

USB

Sampling

1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording





CV-200-Rest ECG,VCG and VLP



CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG , Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG , VCG and VLP data. In the Windows XP environment, different reports can be viewed on screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state of the art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.





Minimum Computer System Requirements:



  • Pentium III Processor
  • 128MB RAM
  • 20G HD
  • Windows XP Operating System
  • VGA Compatible Display
  • Windows XP Compatible Laser or Inkjet Printer









Vales and Hills Biomedical Tech. Ltd. (V&H), located on BDA International Park, BEIJING, has been one of the leading developers of PC based ECG technology for years. V&H keeps giving great resources to approach the edge that comes with the idea of sophisticated simplicity in products design and the discipline of management in quality control. V&H is mostly engaged in PC-ECG, ECG Workstation, ECG Stress Test, Digital EEG Series and Ambulatory Blood Pressure Monitor. V&H's core concept is teamwork on which we have built a truly top-notch team, conceived in collaboration, dedicated to the proposition that we all colleagues working our hearts out toward the goal in rewarding people and society. V&H keeps looking to the future with hope and determination.

Medical Pc Ecg Machine With USB Cable , Electrocardiograph For Vector ECG

Medical Pc Ecg Machine With USB Cable , Electrocardiograph For Vector ECG
