Portable 12 Channel PC Based ECG Device With Phonetype Acquisition Box CV200+
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product: | Portable 12 Channel PC ECG Device With Phonetype Acquisition Box CV200+ | Color: | Grey |
|---|---|---|---|
| Connection: | USB/Wireless | Function: | ECG WORK STATION,Vector ECG |
| Channels: | 12-LEAD ECG | Sampling:: | 1000 S/S/Ch,12 Bits, Simultaneously 12 Leads Recording |
| Patient Cable: | Standard 10-wire,15-Pin D Connector | Dimensions: | 14912226 Mm(5.94.81.0 In.) |
| High Light: | electrocardiogram machine,cardiac monitoring equipment |
||

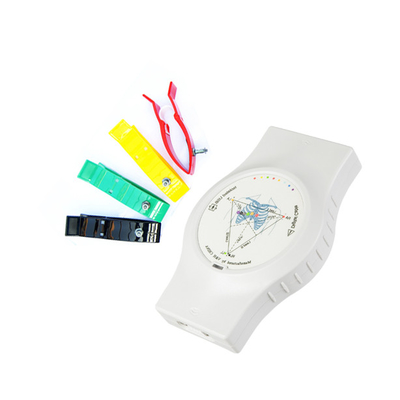

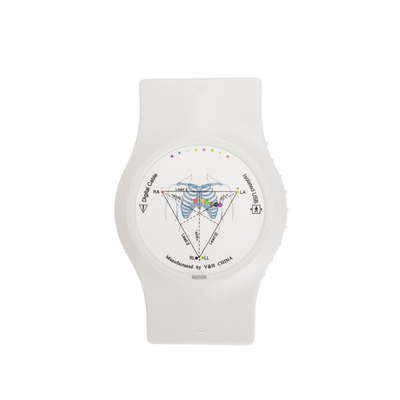

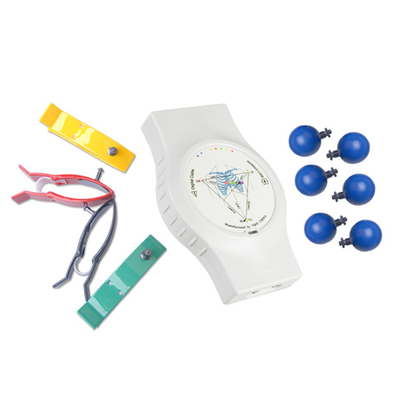

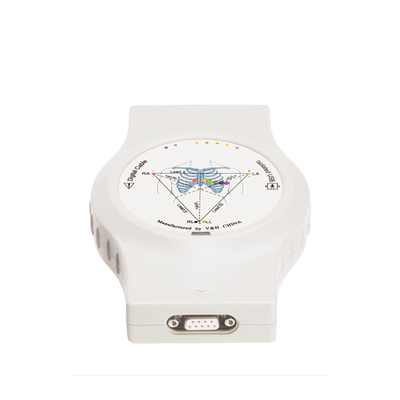

Portable 12 Channel PC ECG Device with Phonetype Acquisition Box CV200+
CV-200+-Rest ECG,VCG and VLP
CARDIO VIEW CV-200+ is a PC ECG system for doctors
and clinics with plans to make multi-function electrocardiograph analysis, including
12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).
With the optical isolating ECG signal sampling recorder connected to PC USB interface,
CV-200 guarantees high quality ECG data acquisition, user-friendly environment
and 100% safety for the patient.
Minimum Computer System Requirements:
· Pentium III Processor
· 128MB RAM
· 20G HD
· Windows XP Operating System
· VGA Compatible Display
· Windows XP Compatible Laser or Inkjet Printer
|
VH- CV200+-ECG work station specification |
|
|
Sampling |
1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
|
Digital Resolution |
2µV |
|
Frequency Response |
0.05-250Hz(+3dB) |
|
Common Mode Rejection |
>90dB |
|
Input Impedance |
>10 M |
|
Time Constant |
3.2 Sec |
|
Maximum Electrode Potential |
+300mV DC |
|
Dynamic Range |
+10mV |
|
Isolate Voltage |
4000V |
|
Current Leek |
<10µA |
|
Patient Cable |
Standard 10-wire,15-Pin D Connector |
|
PC Interface |
USB Connector |
|
Dimensions |
14912226 mm(5.94.81.0 in.) |
