Wireless Smart PC Based ECG Bluetooth Module Device In the Cardio View Market

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Wireless Smart PC Based ECG Bluetooth Module Device In the Cardio View Market Get Best Price

Product Details:
Place of Origin: China
Brand Name: V&H
Certification: CE,ISO13285,Free Sales
Model Number: CV200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton
Delivery Time: 7-8 days after receival of payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: in stock
Detailed Product Description
Type:: Electronic Endoscope Color: White

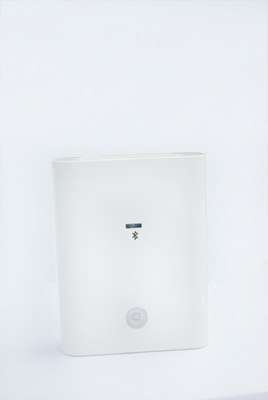

Connection: Bluetooth Module Function: ECG WORK STATION,Vector ECG
Channels: 12-LEAD ECG Sampling: 1000 S/S/Ch,12 Bits,
Recording: Simultaneously 12 Leads Recording
High Light:

digital eeg machine

,

computer ecg

Wireless Smart PC Based ECG Bluetooth Module Device In the Cardio View







CV-200-Rest ECG,VCG and VLP

A,CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG)

and Ventricular Late Potential (VLP).

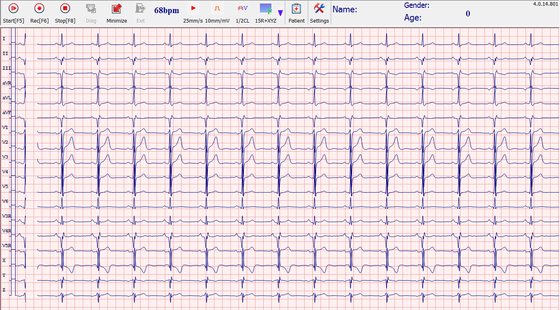

B,The system automatically stores, analyzes, averages, displays and prints the recorded ECG,

VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen

and printed

in numerous formats on most Windows compatible printers. By means of regular updating of software,

CV-200 remains state-of-the-art both now and in the future.

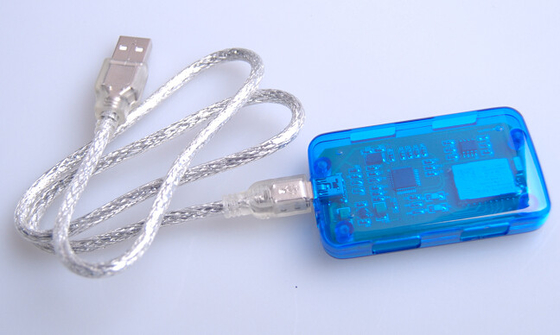

C,With the optical isolating ECG signal sampling recorder connected to PC USB interface,

CV-200 guarantees high quality ECG data acquisition, user friendly environment

and 100% safety for the patient.









Minimum Computer System Requirements:

· Pentium III Processor

· 128MB RAM

· 20G HD

· Windows XP Operating System

· VGA Compatible Display

· Windows XP Compatible Laser or Inkjet Printer









               VH- CV200-ECG work station specification

Sampling

1000 S/S/Ch,12 bits,

Simultaneously 12 Leads Recording

Digital Resolution

2µV

Frequency Response

0.05-250Hz(+3dB)

Common Mode Rejection

>90dB

Input Impedance

>10 M

Time Constant

3.2 Sec

Maximum Electrode Potential

+300mV DC

Dynamic Range

+10mV

Isolate Voltage

4000V

Current Leek

<10µA

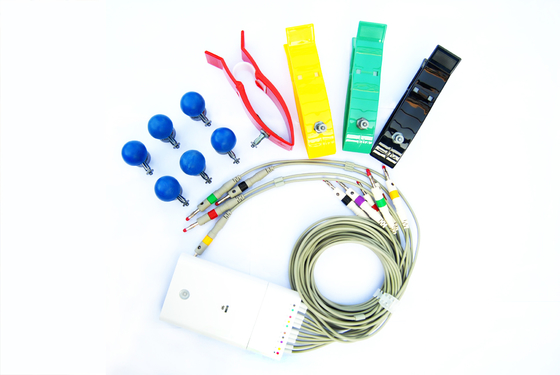

Patient Cable

Standard 10-wire,15-Pin D Connector

PC Interface

USB Connector

Dimensions

14912226 mm(5.94.81.0 in.)
