Updated Version18-Channel PC Test ECG Monitor , Portable HR Medical Device

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Updated Version18-Channel PC Test ECG Monitor , Portable HR Medical Device Get Best Price

Product Details:
Place of Origin: China
Brand Name: V&H
Certification: CE,ISO13485,FREE SALES
Model Number: CV200+
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: package/carton
Delivery Time: within 7 days after recieving the payment
Payment Terms: T/T, Western Union,paypal
Detailed Product Description
Color: White,grey,blue Type: Biochemical Analysis System
Cable: Simultaneous 18-channel Defibrillation Protect: Build-in
Function: Measurements &Interpretations Connection: Isolate USB &Wireless To PC
Gurantee: 1 Year Certificate: CE,ISO13485,FREE SALES
High Light:

pc ecg machine

,

computer ecg



Updated Version18-Channel PC Test ECG Monitor , Portable HR Medical Device







Specifications



1.CV200+ ECG medical machine
2.rest ecg system
3.PC based
4.simultaneous 12-channel ecg
5.CE,ISO13485,FREE SELAS





Minimum Computer System Requirements:

  • Pentium III Processor
  • 128MB RAM
  • 20G HD
  • Windows XP Operating System
  • VGA Compatible Display
  • Windows XP Compatible Laser or Inkjet Printer





ECG Recorder Specifications:

           VH- CV200+-ECG work station specification

Sampling

1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording

Digital Resolution

2µV

Frequency Response

0.05-250Hz(+3dB)

Common Mode Rejection

>90dB

Input Impedance

>10 M

Time Constant

3.2 Sec

Maximum Electrode Potential

+300mV DC

Dynamic Range

+10mV

Isolate Voltage

4000V

Current Leek

<10µA

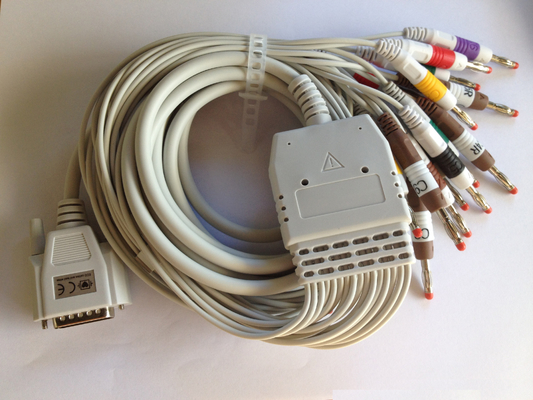

Patient Cable

Standard 10-wire,15-Pin D Connector

PC Interface

USB Connector

Dimensions

14912226 mm(5.94.81.0 in.)





CV-200+-Rest ECG,VCG and VLP

CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.



Updated Version18-Channel PC Test ECG Monitor , Portable HR Medical Device



Updated Version18-Channel PC Test ECG Monitor , Portable HR Medical Device
