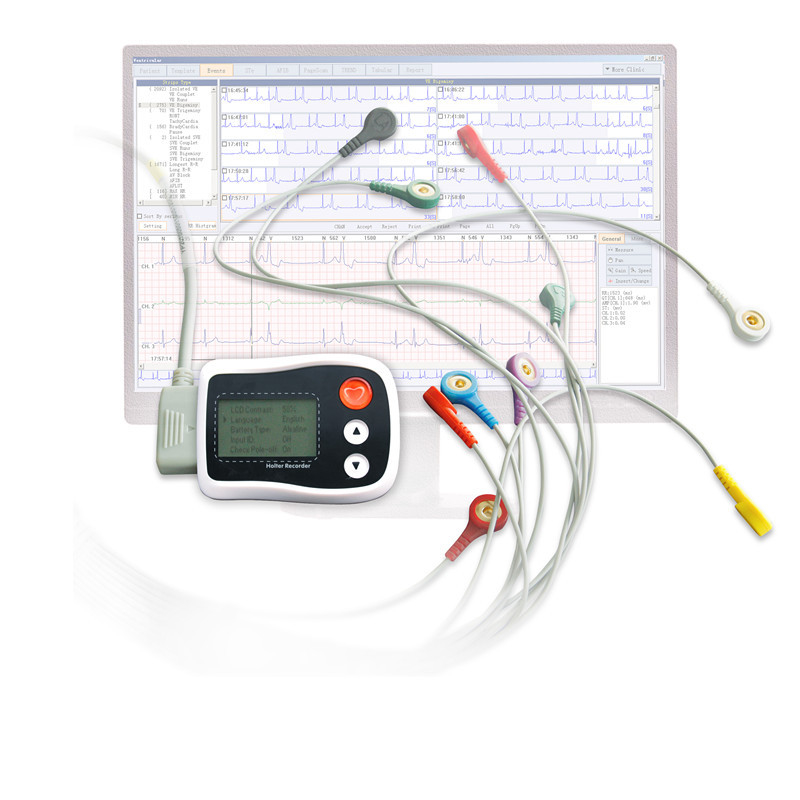

Digital 3 channel Holter ECG recorder , electrocardiogram equipment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | ecg dinamico holter,ecg electro cardio graph |
||
|---|---|---|---|
3 channel ECG digital holter recorder with 5 wire
Quick Detail
|
Name |
ECG holter |
Sample rate |
1024/Sec max |
|
Channels |
3-channel, 12-channel |
Recording |
Full disclosure |
|
Resolution |
8-16 bits |
Download interface |
SD card reader or USB line |
Description
|
Brand Name |
V&H |
|
Model Number |
CV3000 |
|
Place of Origin |
Beijing, China (Mainland) |
|
Type |
Medical Micro-Devices |
|
Color |
white |
|
Signal verification |
LCD display |
|
Frequency response |
0.05HZ to 60Hz |
|
Certification |
CE/ISO/FDA |
|
Function |
ST-T Analysis, Pacemaker, HRV, T-Wave Alternance |
Holter monitor Specifications
|
Memory
|
Recording time: 24-72 hours
Type: SD
Capacity: 2GB
|
|
Physical
|
Dimensions: 72*53*16mm
Weight with battery: 62g
Enclosure: ABS plastic
Operating position: any orientation
|
|
Electrical |
Gain settings: 0.5X, 1X and 2X
Connector: 19 pin
Patient cable: 10 leads or 5 leads
|
Holter monitor
The CV3000 Holter ECG is intended for patients requiring ambulatory (Holter) monitoring. The following is a
listing of the most frequently used for the indications below:
(1) Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.
(2) Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.
(3) Evaluation of patients for ST segment changes
(4) Evaluation of a patient’s response after resuming occupational or recreational activities.
(5) Evaluation of patients with pacemakers.
(6) Reporting of time and frequency domain heart rate variability.
(7) Reporting of QT Interval.
Accessories
3 Channel
12 Channel
