High Light: | ecg dinamico holter,ecg electro cardio graph |
---|

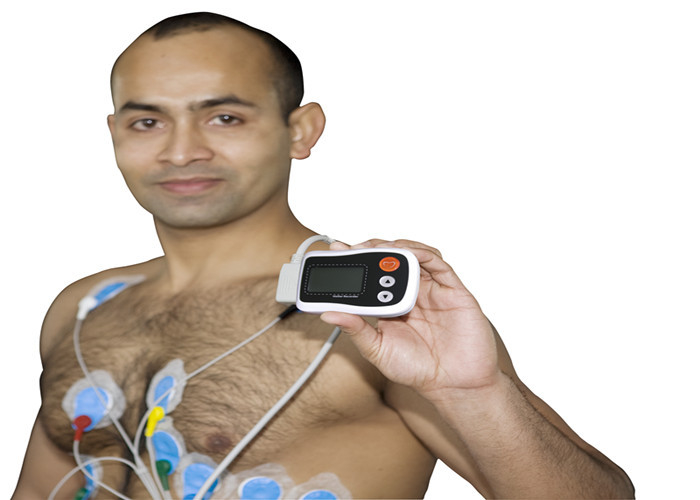

12 channel Holter ECG recorder with LCD display
Quick Detail
Name |
ECG holter |
Sample rate |
1024/Sec max |
Channels |
12- channel, |
Recording |
Full disclosure |
Resolution |
8-16 bits |
Download interface |
SD card reader or USB line |
Description
Brand Name |
V&H |
Model Number |
CV3000 |
Place of Origin |
Beijing, China (Mainland) |
Type |
Medical Micro-Devices |
Color |
white |
Signal verification |
without LCD display |
Frequency response |
0.05HZ to 60Hz |
Certification |
CE/ISO/FDA |
Function |
ST-T Analysis, Pacemaker, HRV, T-Wave Alternance |
CV3000 is a remarkable advanced HOLTER system eorking for both 3-channel and 12 -lead ECG recording and analysis.Thanks to its sophisticated software and elaborately designed recorder,CV3000 meets all high -end performance and fiscal reponsibility .
Holter monitor
The CV3000 Holter ECG is intended for patients requiring ambulatory (Holter) monitoring. The following is a
listing of the most frequently used for the indications below:
(1) Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.
(2) Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.
(3) Evaluation of patients for ST segment changes
(4) Evaluation of a patient’s response after resuming occupational or recreational activities.
(5) Evaluation of patients with pacemakers.
(6) Reporting of time and frequency domain heart rate variability.
(7) Reporting of QT Interval.
Holter monitor Specifications
Memory |
Recording time: 24-72 hours Type: SD Capacity: 2GB |
Physical
|
Dimensions: 72*53*16mm Weight with battery: 62g Enclosure: ABS plastic Operating position: any orientation |
Electrical |
Gain settings: 0.5X, 1X and 2X Connector: 19 pin Patient cable: 10 leads or 5 leads |
