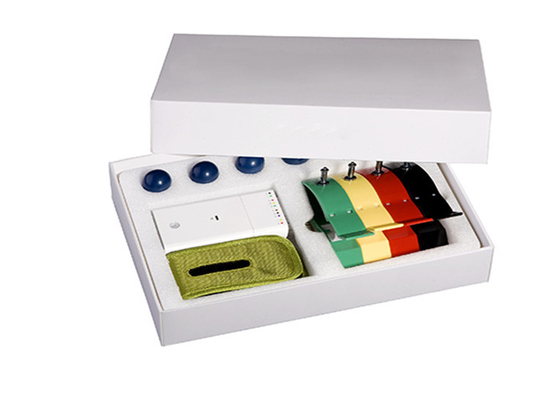

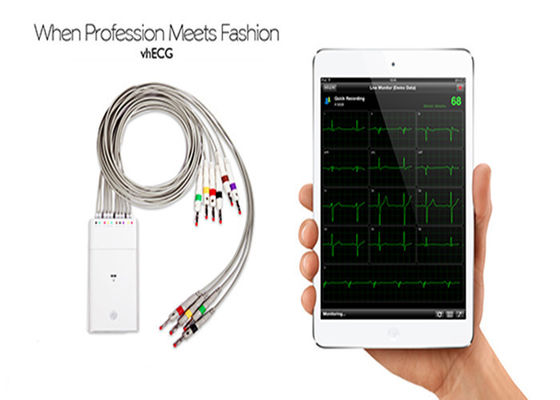

Multichannel Wireless ECG Machine PC Based For iOS , Portable Heart Monitors
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | White | Type: | Resting |
|---|---|---|---|
| Lead: | Simultaneous 12-lead Patient Cable | Coonection: | Wifi Or Bluetooth |
| Suitable: | IPad/iphone/iPad-mini/ For IOS | Power: | 2xAA Batteries |
| High Light: | portable ecg monitor,medical ecg machine |
||
Multichannel Wireless ECG Machine PC Based For iOS , Portable Heart Monitors
Quick Detail
|
Name |
Profession and fashion rest ECG |
Function |
Automatical monitor and analysis ECG |
|
Type |
Resting |
Feature |
Wifi connection |
|
Leads |
Simultaneous 12 leads |
certification |
CE ISO |
Description
|
Brand Name |
V&H |
|
Model Number |
ICV200 |
|
Place of Origin |
Beijing, China (Mainland) |
|
Color |
white |
|
Transfer way |
wireless |
|
Properties |
Diagnostic Instruments |
|
Other |
icloud ECG web |

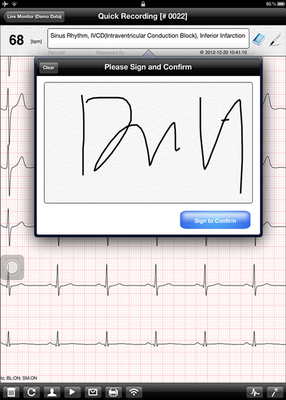

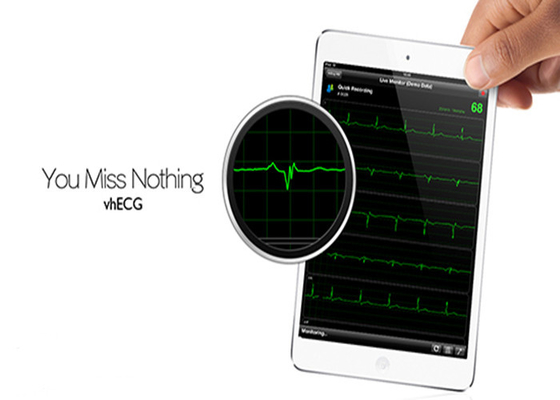

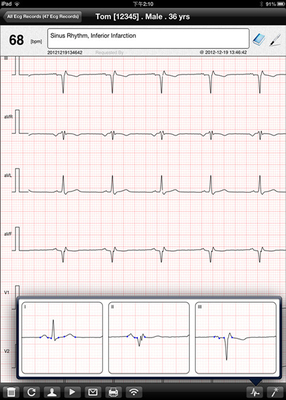

- Resting ECG on iPad, iPhone,or PC
- Bluetooth or wifi wireless
- Heart rate monitor
- 12 channel iCV200
About us
Vales and Hills Biomedical Tech. Ltd. (V&H), located on BDA International Park, BEIJING, has been one of the leading developers of PC based ECG technology for years. V&H keeps giving great resources to approach the edge that comes with the idea of sophisticated simplicity in products design and the discipline of management in quality control. V&H is mostly engaged in PC-ECG, ECG Workstation, ECG Stress Test, Digital EEG Series and Ambulatory Blood Pressure Monitor. V&H's core concept is teamwork on which we have built a truly top-notch team, conceived in collaboration, dedicated to the proposition that we all colleagues working our hearts out toward the goal in rewarding people and society. V&H keeps looking to the future with hope and determination
Advantages:
- The first professional electro cardio gram (ECG) product developed on iOS portable device.
- High-definition ECG display thanks to its Apple high resolution screen and anti aliased algorithm.
- Automatic measurements and interpretations.
- WiFi and 3G compatible
ECG Recorder Specifications
|
Sampling Rate |
A/D:24K SPS/Ch Recording:1K SPS/Ch |
|
Quantization Precision |
A/D:24 Bits Recording:16 Bits |
|
Resolution |
0.4uV |
|
Common Mode Rejection |
>110dB |
|
Input Impedance |
>20M |
|
Frequency Response |
0.05-250Hz(±3bB) |
|
Time Constant |
>3.2Sec |
|
Maximum Electrode Potential |
±300mV DC |
|
Dynamic Range |
±15mV |
|
Defibrillation Project |
Build-in |
|
Communication |
WIFI(ipad,iphone)Blue Tooth(Android) |
|
Power |
2xAA Batteries |
